NOTE: AccuGrip™ is available with AccuKool™ ports.
To request make the following changes to part no. and descriptions: Example: 9474F1719 becomes 9474F1719-3CP.
The description goes from HSK-63F-SF .625-3.74 to HSK-63F-SF-IK3 .625-3.74.
HSK Shrink Fit Holders

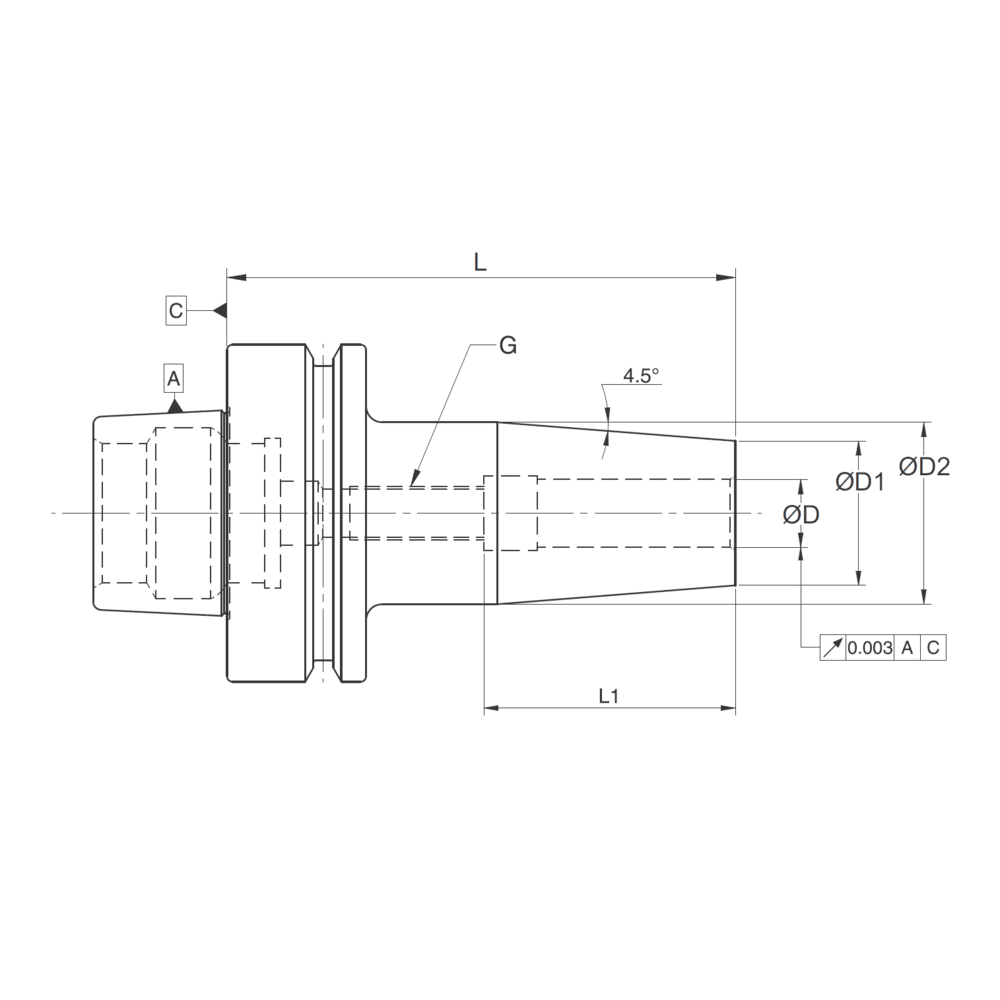

HSK63F AccuGrip™ Shrink Fit Holders – Standard DIN Length
FEATURES:
- Balanced to G2.5 @25,000 RPM
- T.I.R. < 0.00012” / 0.003µ
Available Options
| Cat. no. | Description | ØD (inch) | L (inch) | ØD1 (inch) | ØD2 | L1 | G | Coolant Style | Stock | Price | Quantity | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 9474F1118 | HSK-63F-SF 0.250-3.54 | 0.250 | 3.54 | 0.83 | 1.06 | 1.42 | M5 | AD Thru | ||||
| 9474F2618 | HSK-63F-SF 0.375-3.54 | 0.375 | 3.54 | 0.95 | 1.26 | 1.65 | M8x1 | AD Thru | ||||
| 9474F1519 | HSK-63F-SF 0.500-3.74 | 0.500 | 3.74 | 1.06 | 1.34 | 1.85 | M10x1 | AD Thru | ||||
| 9474F1719 | HSK-63F-SF 0.625-3.74 | 0.625 | 3.74 | 1.06 | 1.34 | 1.97 | M12x1 | AD Thru | ||||
| 9474F2820 | HSK-63F-SF 0.750-3.94 | 0.750 | 3.94 | 1.30 | 1.65 | 2.05 | M16x1 | AD Thru | ||||
| 9474F2123 | HSK-63F-SF 1.000-4.53 | 1.000 | 4.53 | 1.73 | 2.09 | 2.28 | M16x1 | AD Thru | ||||
| 9474F2224 | HSK-63F-SF 1.250-4.72 | 1.250 | 4.72 | 1.73 | 2.09 | 2.44 | M16x1 | AD Thru |
