HSK63A AccuGrip™ Shrink Fit Holders – Standard DIN Length

FEATURES:

Balanced to G2.5 @25,000 RPM
T.I.R. < 0.00012” / 0.003µ

Cat. no.: N/A Category: HSK Shrink Fit Holders

Available Options

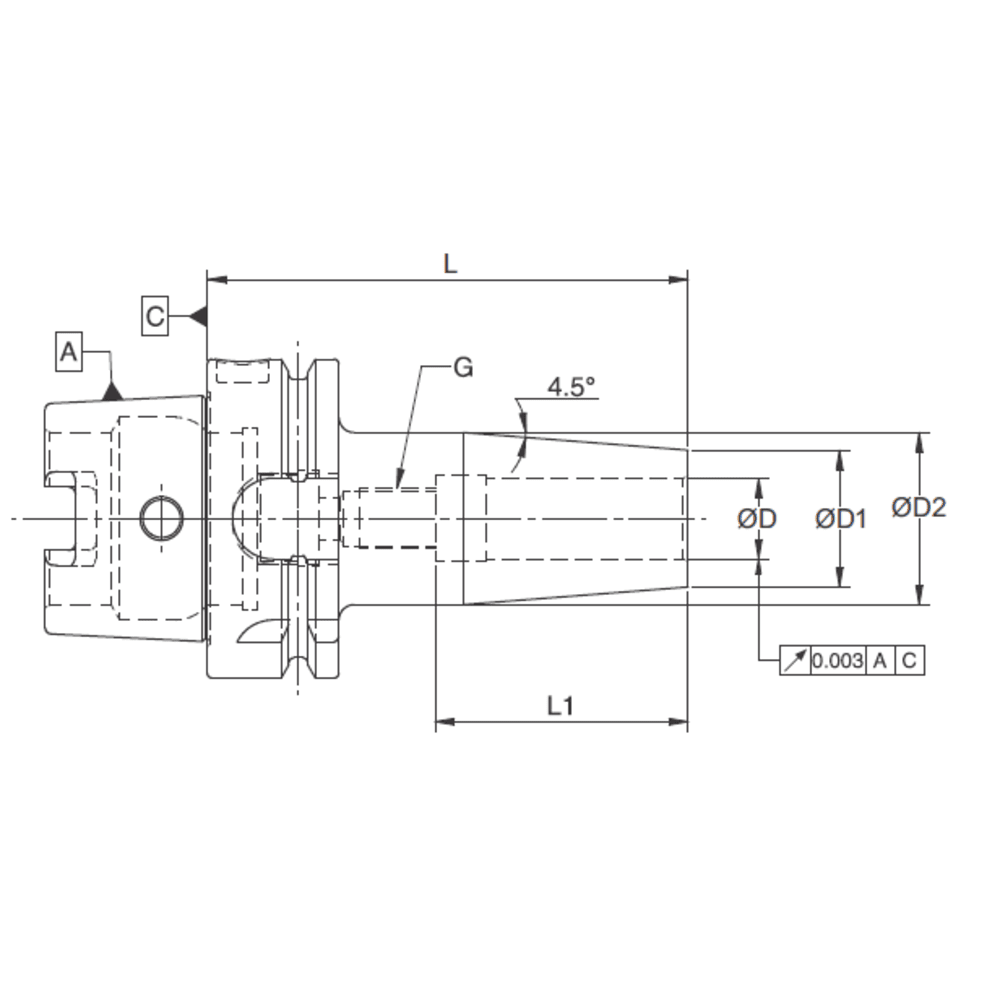

Cat. no.	Description	--	ØD	L	ØD1	ØD2	L1	G	Coolant Style	Quantity
9474A0716	HSK-63A-SF 0.125-3.15	HSK63A Inch	0.125	3.15	0.39	0.71	0.35	-	AD Thru	HSK63A AccuGrip™ Shrink Fit Holders – Standard DIN Length quantity
9474A0916	HSK-63A-SF 0.187-3.15	HSK63A Inch	0.187	3.15	0.39	0.71	0.47	-	AD Thru	HSK63A AccuGrip™ Shrink Fit Holders – Standard DIN Length quantity
9474A1116	HSK-63A-SF 0.250-3.15	HSK63A Inch	0.250	3.15	0.83	1.06	1.42	M5	AD Thru	HSK63A AccuGrip™ Shrink Fit Holders – Standard DIN Length quantity
9474A2617	HSK-63A-SF 0.375-3.34	HSK63A Inch	0.375	3.54	0.95	1.26	1.65	M8x1	AD Thru	HSK63A AccuGrip™ Shrink Fit Holders – Standard DIN Length quantity
9474A1518	HSK-63A-SF 0.500-3.54	HSK63A Inch	0.500	3.54	1.06	1.34	1.85	M10x1	AD Thru	HSK63A AccuGrip™ Shrink Fit Holders – Standard DIN Length quantity
9474A1719	HSK-63A-SF 0.625-3.74	HSK63A Inch	0.625	3.74	1.06	1.34	1.97	M12x1	AD Thru	HSK63A AccuGrip™ Shrink Fit Holders – Standard DIN Length quantity
9474A2820	HSK-63A-SF 0.750-3.94	HSK63A Inch	0.750	3.94	1.30	1.65	2.05	M16x1	AD Thru	HSK63A AccuGrip™ Shrink Fit Holders – Standard DIN Length quantity
9474A0316	HSK-63A-SF 3-80	HSK63A Metric	3	80	10	18	9	-	AD Thru	HSK63A AccuGrip™ Shrink Fit Holders – Standard DIN Length quantity
9474A0416	HSK-63A-SF 4-80	HSK63A Metric	4	80	10	18	12	-	AD Thru	HSK63A AccuGrip™ Shrink Fit Holders – Standard DIN Length quantity
9474A0516	HSK-63A-SF 5-80	HSK63A Metric	5	80	10	18	15	-	AD Thru	HSK63A AccuGrip™ Shrink Fit Holders – Standard DIN Length quantity
9474A0616	HSK-63A-SF 6-80	HSK63A Metric	6	80	21	27	36	M5	AD Thru	HSK63A AccuGrip™ Shrink Fit Holders – Standard DIN Length quantity
9474A0816	HSK-63A-SF 8-80	HSK63A Metric	8	80	21	27	36	M6	AD Thru	HSK63A AccuGrip™ Shrink Fit Holders – Standard DIN Length quantity
9474A1017	HSK-63A-SF 10-85	HSK63A Metric	10	85	24	32	42	M8x1	AD Thru	HSK63A AccuGrip™ Shrink Fit Holders – Standard DIN Length quantity
9474A1218	HSK-63A-SF 12-90	HSK63A Metric	12	90	24	32	47	M10x1	AD Thru	HSK63A AccuGrip™ Shrink Fit Holders – Standard DIN Length quantity
9474A1418	HSK-63A-SF 14-90	HSK63A Metric	14	90	27	34	47	M10x1	AD Thru	HSK63A AccuGrip™ Shrink Fit Holders – Standard DIN Length quantity
9474A1618	HSK-63A-SF 16-90	HSK63A Metric	16	90	27	34	50	M12x1	AD Thru	HSK63A AccuGrip™ Shrink Fit Holders – Standard DIN Length quantity
9474A1819	HSK-63A-SF 18-95	HSK63A Metric	18	95	33	42	50	M12x1	AD Thru	HSK63A AccuGrip™ Shrink Fit Holders – Standard DIN Length quantity
9474A2020	HSK-63A-SF 20-100	HSK63A Metric	20	100	33	42	52	M16x1	AD Thru	HSK63A AccuGrip™ Shrink Fit Holders – Standard DIN Length quantity

Description

NOTE: AccuGrip™ is available with AccuKool™ ports.
To request make the following changes to part no. and descriptions: Example: 9474A1719 becomes 9474A1719-3CP.
The description goes from HSK-63A-SF 0.625-3.74 to HSK-63A-SF-IK3 .625-3.74.
