BT 40 End Mill Holders
BT40 End Mill Holder
FEATURES:
- Balanced to G2.5 @ 25,000 RPM
- Taper shank ground to AT3 accuracy (or better)
- T.I.R. < 0.0004”
- Bore tolerance: H6
Available Options

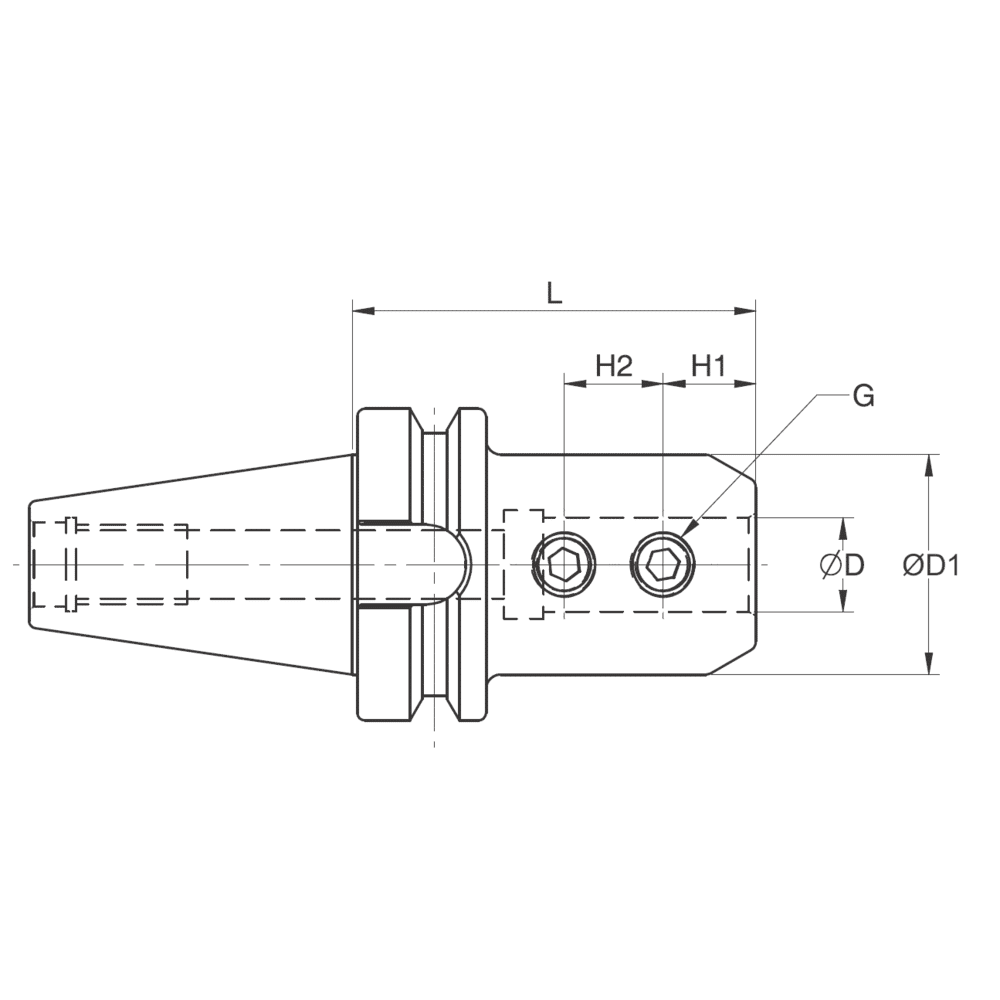

| Cat. no. | Description | -- | ØD | L | ØD1 | G | H1 | H2 | Coolant Style | Stock | Price | Quantity | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 84120713 | BT40-EMH 0.125-2.55 | BT40 Inch | 0.125 | 2.55 | 0.50 | #10-32 | 0.21 | - | AD Thru | ||||
| 84120913 | BT40-EMH 0.187-2.55 | BT40 Inch | 0.187 | 2.55 | 0.69 | #10-32 | 0.56 | - | AD Thru | ||||
| 84120920 | BT40-EMH 0.187-4.00 | BT40 Inch | 0.187 | 4.00 | 0.69 | #10-32 | 0.56 | - | AD Thru | ||||
| 84121113 | BT40-EMH 0.250-2.55 | BT40 Inch | 0.250 | 2.55 | 0.69 | 1/4"-28 | 0.56 | - | AD Thru | ||||
| 84121120 | BT40-EMH 0.250-4.00 | BT40 Inch | 0.250 | 4.00 | 0.69 | 1/4"-28 | 0.56 | - | AD Thru | ||||
| 84121313 | BT40-EMH 0.312-2.55 | BT40 Inch | 0.312 | 2.55 | 1.00 | 1/4"-28 | 0.75 | - | AD Thru | ||||
| 84121320 | BT40-EMH 0.312-4.00 | BT40 Inch | 0.312 | 4.00 | 1.00 | 1/4"-28 | 0.75 | - | AD Thru | ||||
| 84122613 | BT40-EMH 0.375-2.55 | BT40 Inch | 0.375 | 2.55 | 1.00 | 3/8"-24 | 0.75 | - | AD Thru | ||||
| 84122620 | BT40-EMH 0.375-4.00 | BT40 Inch | 0.375 | 4.00 | 1.00 | 3/8"-24 | 0.75 | - | AD Thru | ||||
| 84121513 | BT40-EMH 0.500-2.55 | BT40 Inch | 0.500 | 2.55 | 1.25 | 7/16"-20 | 0.88 | - | AD Thru | ||||
| 84121520 | BT40-EMH 0.500-4.00 | BT40 Inch | 0.500 | 4.00 | 1.25 | 7/16"-20 | 0.88 | - | AD Thru | ||||
| 84121713 | BT40-EMH 0.625-2.55 | BT40 Inch | 0.625 | 2.55 | 1.50 | 9/16"-18 | 0.94 | - | AD Thru | ||||
| 84121720 | BT40-EMH 0.625-4.00 | BT40 Inch | 0.625 | 4.00 | 1.50 | 9/16"-18 | 0.94 | - | AD Thru | ||||
| 84122813 | BT40-EMH 0.750-2.55 | BT40 Inch | 0.750 | 2.55 | 1.75 | 5/8"-18 | 1.00 | - | AD Thru | ||||
| 84121917 | BT40-EMH 0.875-3.35 | BT40 Inch | 0.875 | 3.35 | 1.75 | 5/8"-18 | 1.00 | 0.81 | AD Thru | ||||
| 84122119 | BT40-EMH 1.000-3.74 | BT40 Inch | 1.000 | 3.74 | 2.25 | 3/4"-16 | 1.13 | 1.00 | AD Thru | ||||
| 84122125 | BT40-EMH 1.000-5.00 | BT40 Inch | 1.000 | 5.00 | 2.25 | 3/4"-16 | 1.13 | 1.00 | AD Thru | ||||
| 84122218 | BT40-EMH 1.250-3.50 | BT40 Inch | 1.250 | 3.50 | 2.25 | 3/4"-16 | 1.00 | 1.00 | AD Thru | ||||
| 84122220 | BT40-EMH 1.250-4.00 | BT40 Inch | 1.250 | 4.00 | 2.36 | 3/4"-16 | 1.13 | 1.00 | AD Thru | ||||
| 84122322 | BT40-EMH 1.500-4.25 | BT40 Inch | 1.500 | 4.25 | 2.75 | 3/4"-16 | 1.12 | 1.00 | AD Thru | ||||
| 84120615 | BT40-EMH 6-75 | BT40 Metric (DIN-1835-B) | 6 | 75 | 25 | M6 | 18.0 | - | AD Thru | ||||
| 84120815 | BT40-EMH 8-75 | BT40 Metric (DIN-1835-B) | 8 | 75 | 28 | M8 | 18.0 | - | AD Thru | ||||
| 84121015 | BT40-EMH 10-75 | BT40 Metric (DIN-1835-B) | 10 | 75 | 35 | M10 | 20.0 | - | AD Thru | ||||
| 84121215 | BT40-EMH 12-75 | BT40 Metric (DIN-1835-B) | 12 | 75 | 42 | M12 | 22.5 | - | AD Thru | ||||
| 84121615 | BT40-EMH 16-75 | BT40 Metric (DIN-1835-B) | 16 | 75 | 48 | M14 | 24.0 | - | AD Thru | ||||
| 84122015 | BT40-EMH 20-75 | BT40 Metric (DIN-1835-B) | 20 | 75 | 52 | M16 | 25.0 | - | AD Thru | ||||
| 84122518 | BT40-EMH 25-90 | BT40 Metric (DIN-1835-B) | 25 | 90 | 65 | M18 | 24.0 | 25 | AD Thru | ||||
| 84123224 | BT40-EMH 32-120 | BT40 Metric (DIN-1835-B) | 32 | 120 | 72 | M20 | 24.0 | 28 | AD Thru | ||||
| 84124024 | BT40-EMH 40-120 | BT40 Metric (DIN-1835-B) | 40 | 120 | 90 | M20 | 30.0 | 32 | AD Thru |
