BT 40 AccuMill™ Multi-Milling Chuck
BT40 AccuMill™ Multi-Milling Chuck
FEATURES:
- Balanced to G2.5 @ 25,000 RPM
- Taper shank ground to AT3 accuracy (or better)
- T.I.R. < 0.0002”
- Bore tolerance: H6
Available Options

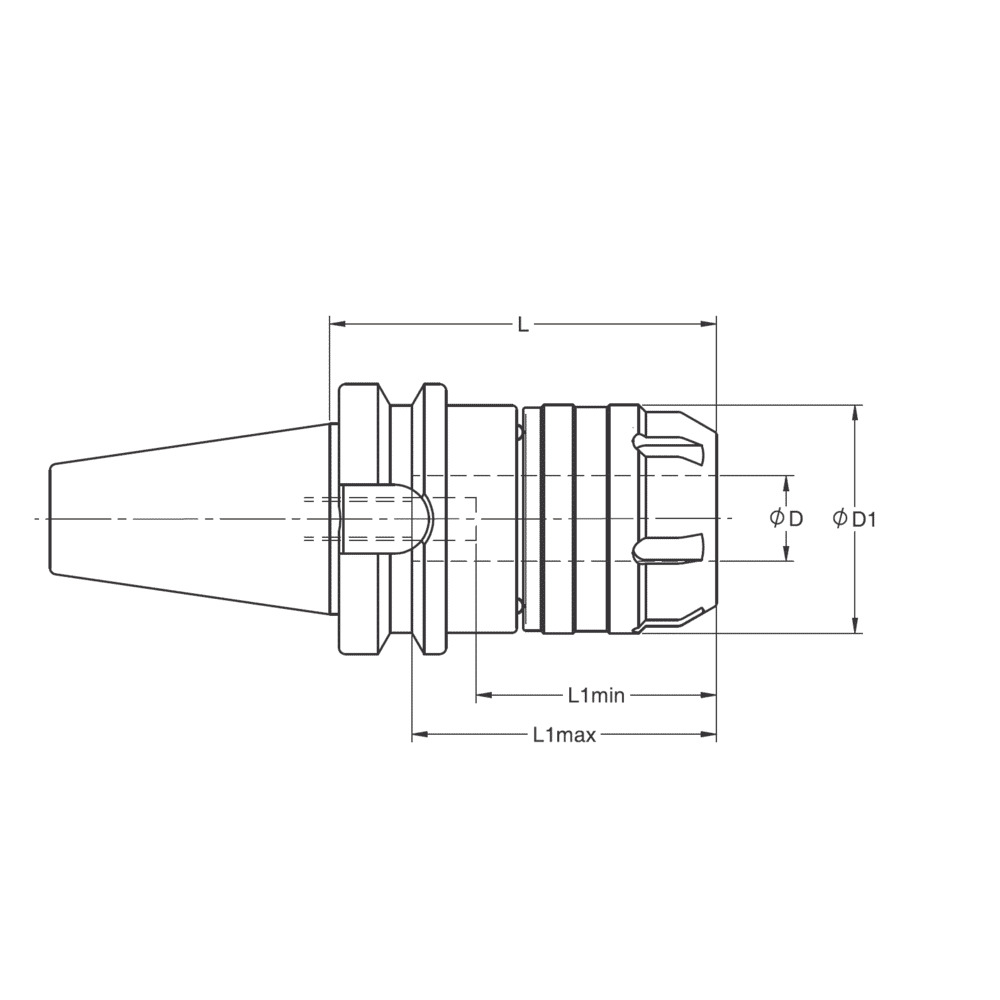

| Cat. no. | Description | -- | Collet Size | Collet Capacity Range | ØD | ØD1 | L | L1 Min/Max | Coolant Style | Stock | Price | Quantity | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 97122816 | BT40-MMC 0.750-3.15 | BT40 Inch | 0.750 | .125 - .625 | 0.750 | 2.09 | 3.15 | 2.50/2.75 | AD Thru | ||||
| 97122824 | BT40-MMC 0.750-4.72 | BT40 Inch | 0.750 | .125 - .625 | 0.750 | 2.09 | 4.72 | 2.50/2.75 | AD Thru | ||||
| 97122218 | BT40-MMC 1.250-3.54 | BT40 Inch | 1.250 | .125 - 1.00 | 1.000 | 2.64 | 3.54 | 3.09/3.34 | AD Thru | ||||
| 97122224 | BT40-MMC 1.250-4.72 | BT40 Inch | 1.250 | .125 - 1.00 | 1.000 | 2.64 | 4.72 | 3.09/3.34 | AD Thru | ||||
| 97122016 | BT40-MMC 20-80 | BT40 Metric | 20 | 3 - 16 | 20 | 53 | 80 | 63/70 | AD Thru | ||||
| 97122024 | BT40-MMC 20-120 | BT40 Metric | 20 | 3 - 16 | 20 | 53 | 120 | 63/70 | AD Thru | ||||
| 97123218 | BT40-MMC 32-90 | BT40 Metric | 32 | 3 - 25 | 32 | 67 | 90 | 78/85 | AD Thru | ||||
| 97123224 | BT40-MMC 32-120 | BT40 Metric | 32 | 3 - 25 | 32 | 67 | 120 | 78/85 | AD Thru |
