AccuPlus™ CATP40 Face Contact AccuGrip™ Shrink Fit Holders

FEATURES:

  • Balanced to G2.5 @25,000 RPM
  • Taper shank ground to AT3 accuracy (or better)
  • T.I.R. < 0.00012” / 0.003µ
  • AccuPlus Meets all Big Diashowa Patented dimensions
Cat. no.: N/A Category:

Available Options

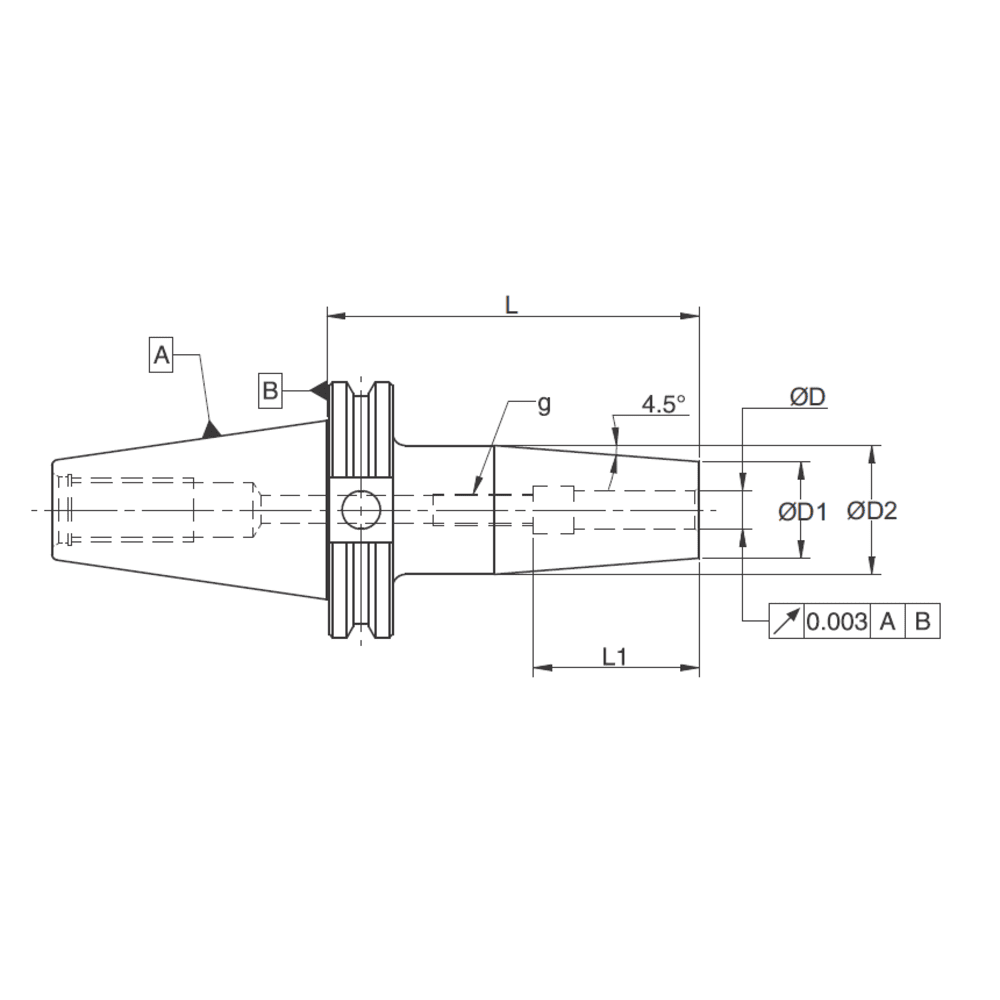

Cat. no.DescriptionCATP40ØDLØD1ØD2L1GCoolant StyleStockPriceQuantity
941360719CATP40-SF 0.125-3.74Inch0.1253.740.390.710.35-AD Thru
941360919CATP40-SF 0.187-3.74Inch0.1873.740.390.710.47-AD Thru
941361119CATP40-SF 0.250-3.74Inch0.2503.740.831.061.42M5AD Thru
941361319CATP40-SF 0.312-3.74Inch0.3123.740.831.061.42M6x1AD Thru
941362619CATP40-SF 0.375-3.74Inch0.3753.740.951.261.65M8x1AD Thru
941361519CATP40-SF 0.500-3.74Inch0.5003.741.061.341.85M10x1AD Thru
941361719CATP40-SF 0.625-3.74Inch0.6253.741.061.341.97M12x1AD Thru
941362819CATP40-SF 0.750-3.74Inch0.7503.741.301.652.05M16x1AD Thru
941362120CATP40-SF 1.000-3.94Inch1.0003.941.732.092.44M16x1AD Thru
941362220CATP40-SF 1.250-3.94Inch1.2503.941.732.092.44M16x1AD Thru
941360319CATP40-SF 3-95Metric39510189-AD Thru
941360419CATP40-SF 4-95Metric495101812-AD Thru
941360519CATP40-SF 5-95Metric595101815-AD Thru
941360619CATP40-SF 6-95Metric695212736M5AD Thru
941360819CATP40-SF 8-95Metric895212736M6x1AD Thru
941361019CATP40-SF 10-95Metric1095243242M8x1AD Thru
941361219CATP40-SF 12-95Metric1295243247M10x1AD Thru
941361419CATP40-SF 14-95Metric1495273447M10x1AD Thru
941361619CATP40-SF 16-95Metric1695273450M12x1AD Thru
941361819CATP40-SF 18-95Metric1895334250M12x1AD Thru
941362019CATP40-SF 20-95Metric2095334252M16x1AD Thru
941362520CATP40-SF 25-100Metric25100445358M16x1AD Thru
941363220CATP40-SF 32-100Metric32100445362M16x1AD Thru

NOTE: AccuGrip™ is available with AccuKool™ ports. To request make the following changes to part no. and descriptions: Example: 941361719 becomes 941361719-3CP.
The description goes from CATP40-SF .625-3.74 to CATP40-SF-IK3 .625-3.74.
