Face Contact (CATP) 50 AccuMill™ Multi-Milling Chuck
AccuPlus™ CATP50 Face Contact AccuMill™ Multi-Milling Chuck
FEATURES:
- Balanced to G2.5 @ 25,000 RPM
- Taper shank ground to AT3 accuracy (or better)
- T.I.R. < 0.0002″
- Bore tolerance: H6
Available Options

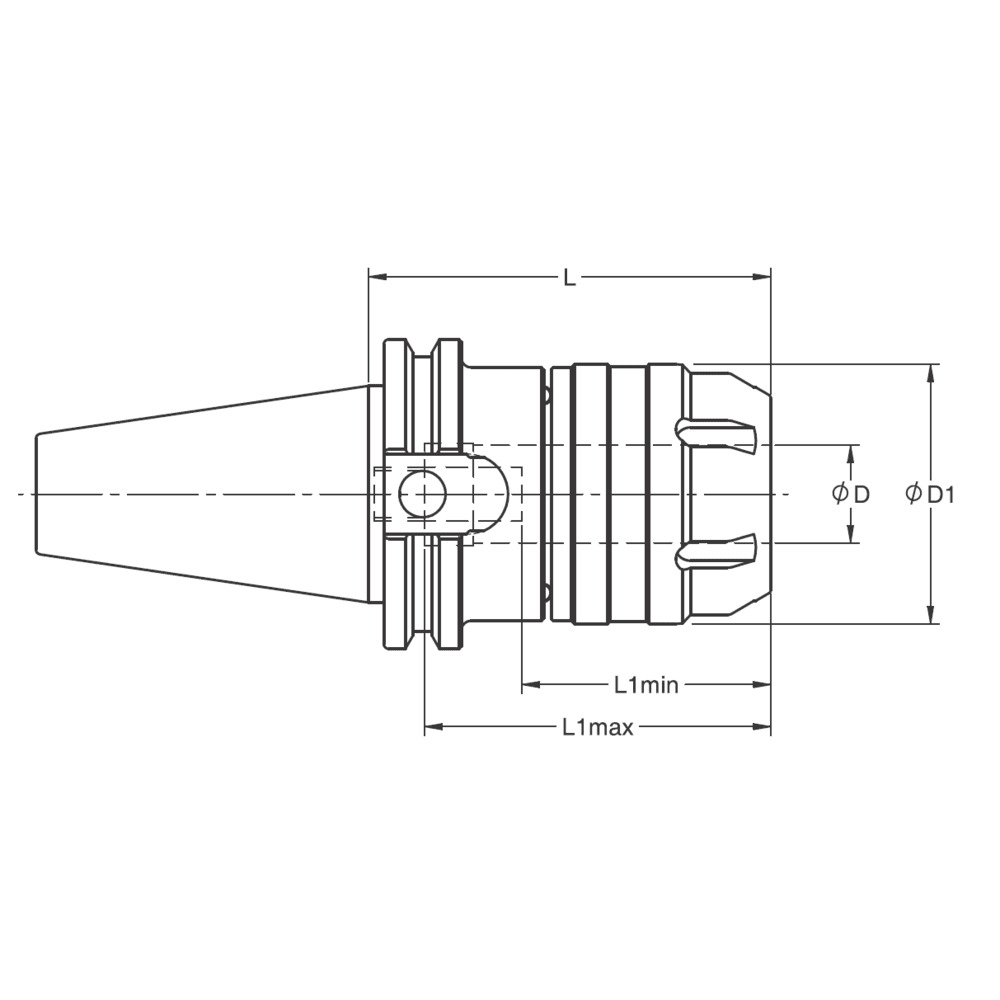

| Cat. no. | Description | CAT50 | Collet Size | Collet Capacity Range | ØD | ØD1 | L | L1 Min. | L1 Max. | Coolant Style | Stock | Price | Quantity | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 971382021 | CATP50-MMC 20-105 | metric | MC20 | 3 - 16 | 20 | 53 | 105 | 63 | 70 | AD Thru | ||||
| 971383221 | CATP50-MMC 32-105 | metric | MC32 | 3 - 25 | 32 | 67 | 105 | 78 | 85 | AD Thru | ||||
| 971382817 | CATP50-MMC 0.750-3.25 | Inch | MC 0.750 | .125 - .625 | 0.75 | 2.09 | 3.25 | 2.50 | 2.75 | AD Thru | ||||
| 971382825 | CATP50-MMC 0.750-5.00 | Inch | MC 0.750 | .125 - .625 | 0.75 | 2.09 | 5.00 | 2.50 | 2.75 | AD Thru | ||||
| 971382217 | CATP50-MMC 1.250-3.25 | Inch | MC 1.250 | .125 - 1.00 | 1.25 | 2.64 | 3.25 | 3.09 | 3.34 | AD Thru | ||||
| 971382225 | CATP50-MMC 1.250-5.00 | Inch | MC 1.250 | .125 - 1.00 | 1.25 | 2.64 | 5.00 | 3.09 | 3.34 | AD Thru |
