Face Contact (CATP) 40 End Mill Holders
CATP40 Face Contact End Mill Holder
FEATURES:
- Balanced to G2.5 @ 25,000 RPM
- Taper shank ground to AT3 accuracy (or better)
- T.I.R. < 0.0004”
- Bore tolerance: H6
Available Options

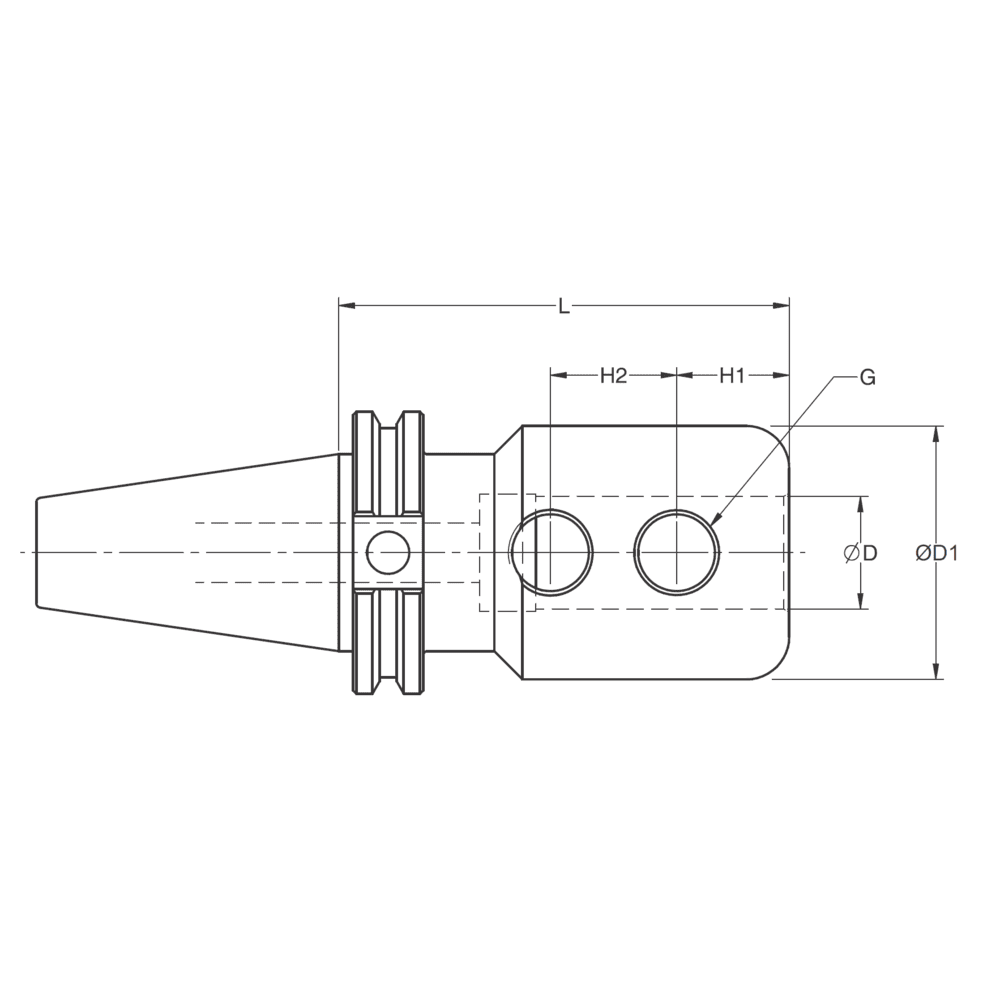

| Cat. no. | Description | ØD (inch) | L (inch) | ØD1 (inch) | H1 | H2 | G | Coolant Style | Stock | Price | Quantity | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 841360713 | CATP40-EMH 0.125-2.50 | 0.125 | 2.50 | 0.50 | 0.22 | - | 10-32 | AD Thru | ||||
| 841360723 | CATP40-EMH 0.125-4.50 | 0.125 | 4.50 | 0.50 | 0.22 | - | 10-32 | AD Thru | ||||
| 841360913 | CATP40-EMH 0.187-2.50 | 0.187 | 2.50 | 0.69 | 0.56 | - | 10-32 | AD Thru | ||||
| 841361113 | CATP40-EMH 0.250-2.50 | 0.250 | 2.50 | 0.69 | 0.56 | - | 1/4"-28 | AD Thru | ||||
| 841361123 | CATP40-EMH 0.250-4.50 | 0.250 | 4.50 | 0.69 | 0.56 | - | 1/4"-28 | AD Thru | ||||
| 841361313 | CATP40-EMH 0.312-2.50 | 0.312 | 2.50 | 1.00 | 0.75 | - | 1/4"-28 | AD Thru | ||||
| 841362613 | CATP40-EMH 0.375-2.50 | 0.375 | 2.50 | 1.00 | 0.75 | - | 3/8"-24 | AD Thru | ||||
| 841362626 | CATP40-EMH 0.375-5.00 | 0.375 | 5.00 | 1.00 | 0.75 | - | 3/8"-24 | AD Thru | ||||
| 841362713 | CATP40-EMH 0.437-2.50 | 0.437 | 2.50 | 1.00 | 0.88 | - | 3/8"-24 | AD Thru | ||||
| 841362723 | CATP40-EMH 0.437-4.50 | 0.437 | 4.50 | 1.00 | 0.88 | - | 3/8"-24 | AD Thru | ||||
| 841361509 | CATP40-EMH 0.500-1.75 | 0.500 | 1.75 | 1.75 | 0.88 | - | 7/16"-20 | AD Thru | ||||
| 841361516 | CATP40-EMH 0.500-3.00 | 0.500 | 3.00 | 1.25 | 0.88 | - | 7/16"-20 | AD Thru | ||||
| 841361523 | CATP40-EMH 0.500-4.50 | 0.500 | 4.50 | 1.25 | 0.88 | - | 7/16"-20 | AD Thru | ||||
| 841363313 | CATP40-EMH 0.562-2.50 | 0.562 | 2.50 | 1.25 | 0.94 | - | 1/2"-20 | AD Thru | ||||
| 841363323 | CATP40-EMH 0.562-4.50 | 0.562 | 4.50 | 1.25 | 0.94 | - | 1/2"-20 | AD Thru | ||||
| 841361716 | CATP40-EMH 0.625-3.00 | 0.625 | 3.00 | 1.50 | 0.94 | - | 9/16"-18 | AD Thru | ||||
| 841361723 | CATP40-EMH 0.625-4.50 | 0.625 | 4.50 | 1.62 | 0.94 | - | 9/16"-18 | AD Thru | ||||
| 841361730 | CATP40-EMH 0.625-5.75 | 0.625 | 5.75 | 1.62 | 0.94 | - | 9/16"-18 | AD Thru | ||||
| 841362809 | CATP40-EMH 0.750-1.75 | 0.750 | 1.75 | 1.75 | 1.00 | - | 5/8"-18 | AD Thru | ||||
| 841362816 | CATP40-EMH 0.750-3.00 | 0.750 | 3.00 | 1.75 | 1.00 | - | 5/8"-18 | AD Thru | ||||
| 841362823 | CATP40-EMH 0.750-4.5 | 0.750 | 4.50 | 1.75 | 1.00 | - | 5/8"-18 | AD Thru | ||||
| 841362116 | CATP40-EMH 1.000-3.00 | 1.000 | 3.00 | 1.95 | 0.88 | 1.00 | 3/4"-16* | AD Thru | ||||
| 841362123 | CATP40-EMH 1.000-4.50 | 1.000 | 4.50 | 2.25 | 1.00 | 1.12 | 3/4"-16* | AD Thru | ||||
| 841362223 | CATP40-EMH 1.250-4.50 | 1.250 | 4.50 | 2.25 | 1.00 | 1.12 | 3/4"-16* | AD Thru | ||||
| 841362326 | CATP40-EMH 1.500-5.00 | 1.500 | 3.00 | 2.75 | 1.12 | 1.00 | 3/4"-16* | AD Thru |
