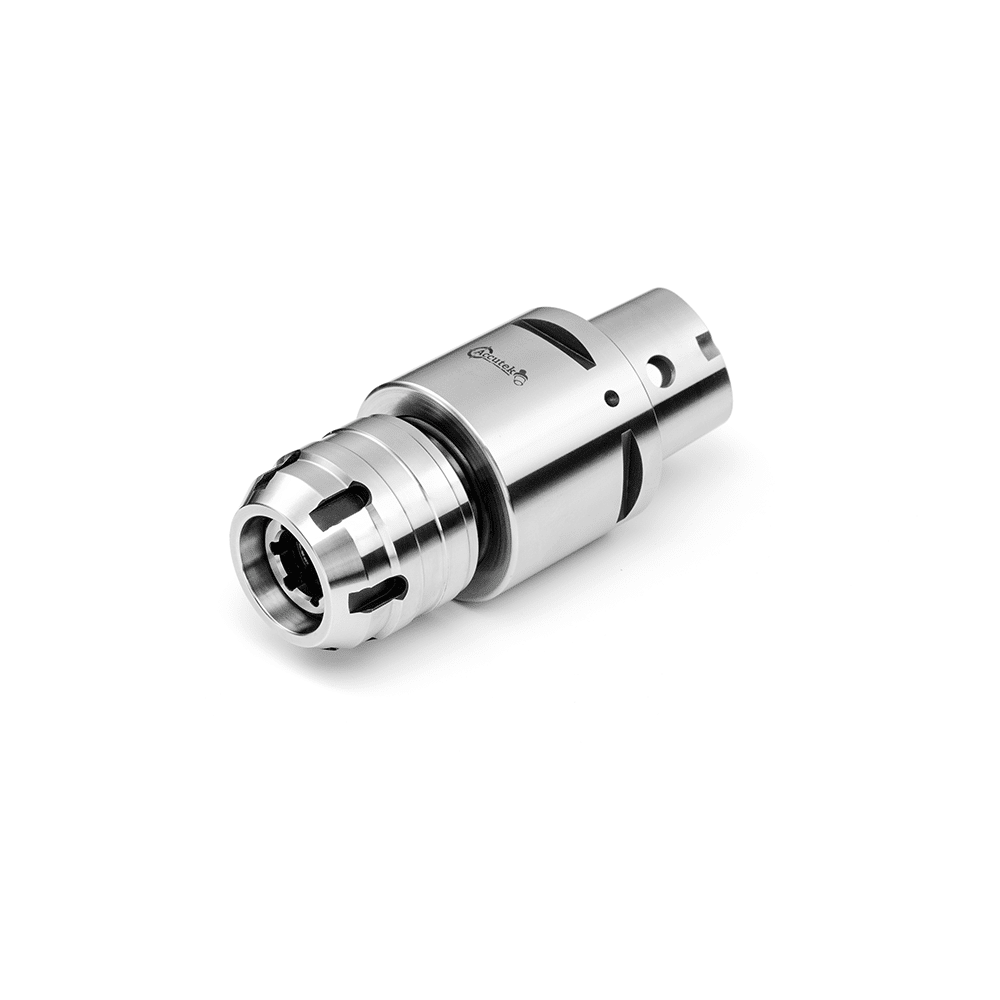

PTI AccuMill™ Multi-Milling Chuck
PTI AccuMill™ Multi-Milling Chuck
Features:
- Balanced to G2.5 @ 25,000 RPM
- T.I.R. < 0.0002”
Available Options

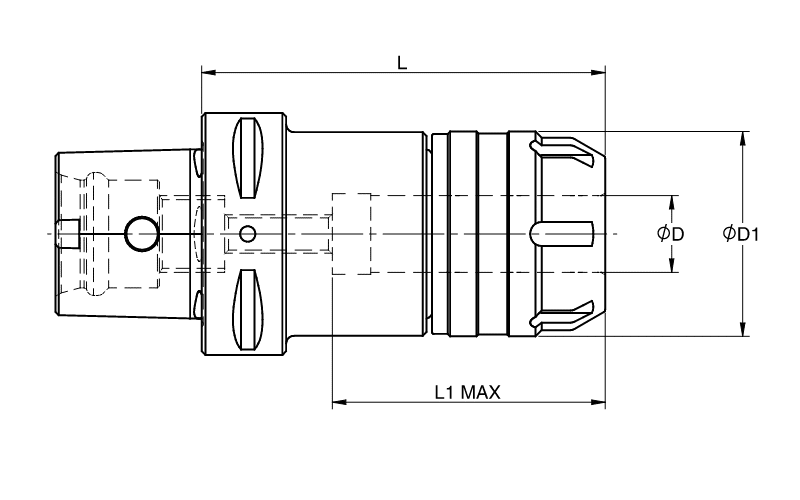

| Cat. no. | Description | - | Collet Size | Collet Capacity Range | ØD | ØD1 | L | L1 Min. | L1 Max. | Coolant Style | Stock | Price | Quantity | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 97682021 | PTI50-MMC 20-105 | PTI50 SHANK Metric | MC20 | 3-16 | 20 | 53 | 105 | 63 | 70 | AD Thru | ||||
| 97682024 | PTI50-MMC 20-120 | PTI50 SHANK Metric | MC20 | 3-16 | 20 | 53 | 120 | 63 | 70 | AD Thru | ||||
| 97683225 | PTI50-MMC 32-125 | PTI50 SHANK Metric | MC32 | 3-25 | 32 | 67 | 125 | 78 | 85 | AD Thru | ||||
| 97692021 | PTI63-MMC 20-105 | PTI63 SHANK Metric | MC20 | 3-16 | 20 | 53 | 105 | 63 | 70 | AD Thru | ||||
| 97692024 | PTI63-MMC 20-120 | PTI63 SHANK Metric | MC20 | 3-16 | 20 | 53 | 120 | 63 | 70 | AD Thru | ||||
| 97693225 | PTI63-MMC 32-125 | PTI63 SHANK Metric | MC32 | 3-25 | 32 | 67 | 125 | 78 | 85 | AD Thru | ||||
| 97692821 | PTI63-MMC 0.750-4.13 | PTI63 SHANK Inch | MC75 | .125-.625 | 0.750 | 2.09 | 4.13 | 2.50 | 2.75 | AD Thru | ||||
| 97692824 | PTI63-MMC 0.750-4.72 | PTI63 SHANK Inch | MC75 | .125-.625 | 0.750 | 2.09 | 4.72 | 2.50 | 2.75 | AD Thru | ||||
| 97692225 | PTI63-MMC 1.250-5.00 | PTI63 SHANK Inch | MC1.25 | .125-1.000 | 1.250 | 2.64 | 5.00 | 3.09 | 3.34 | AD Thru | ||||
| 97702824 | PTI80-MMC 0.750-4.72 | PTI80 SHANK | MC75 | .125-.625 | 2.09 | 4.72 | 2.50 | 2.75 | AD Thru | |||||
| 97702228 | PTI80-MMC 1.250-5.50 | PTI80 SHANK | MC1.25 | .125-1.000 | 1.250 | 2.64 | 5.50 | 3.09 | 3.34 | AD Thru |
