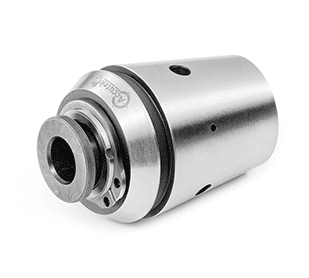

AccuTap™ ERT/E Collets with Axial Compensation, ERT/E Quick Change Tap Collets with Axial Compensation
ERT/E ER Quick Change Tap Collets
Available Options
| Cat. no. | Model | Size | Shank | Square | Tap Size | Tension | A (mm) | L (mm) | Stock | Price | Quantity | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| E95510104 | ERT/E-16 | Inch size (ANSI Shanks and Squares) | 0.141 | 0.110 | #0-#6 | 7.00mm | 16 | 21 | ||||
| E95510148 | ERT/E-16 | Inch size (ANSI Shanks and Squares) | 0.168 | 0.131 | #8 | 7.00mm | 16 | 21 | ||||
| E95510187 | ERT/E-16 | Inch size (ANSI Shanks and Squares) | 0.194 | 0.152 | #10. 3/16 | 7.00mm | 16 | 21 | ||||
| E95520104 | ERT/E-20 | Inch size (ANSI Shanks and Squares) | 0.141 | 0.110 | #0-#6 | 7.50mm | 20 | 24 | ||||
| E95520148 | ERT/E-20 | Inch size (ANSI Shanks and Squares) | 0.168 | 0.131 | #8 | 7.50mm | 20 | 24 | ||||
| E95520187 | ERT/E-20 | Inch size (ANSI Shanks and Squares) | 0.194 | 0.152 | #10. 3/16 | 7.50mm | 20 | 24 | ||||
| E95520212 | ERT/E-20 | Inch size (ANSI Shanks and Squares) | 0.220 | 0.165 | #12 | 7.50mm | 20 | 24 | ||||
| E95520266 | ERT/E-20 | Inch size (ANSI Shanks and Squares) | 0.255 | 0.191 | 1/4" | 7.50mm | 20 | 24 | ||||
| E95530104 | ERT/E-25 | Inch size (ANSI Shanks and Squares) | 0.141 | 0.110 | #0-#6 | 8.00mm | 25 | 24 | ||||
| E95530148 | ERT/E-25 | Inch size (ANSI Shanks and Squares) | 0.168 | 0.131 | #8 | 8.00mm | 25 | 24 | ||||
| E95530187 | ERT/E-25 | Inch size (ANSI Shanks and Squares) | 0.194 | 0.152 | #10. 3/16 | 8.00mm | 25 | 24 | ||||
| E95530212 | ERT/E-25 | Inch size (ANSI Shanks and Squares) | 0-22 | 0.165 | #12 | 8.00mm | 25 | 24 | ||||
| E95530266 | ERT/E-25 | Inch size (ANSI Shanks and Squares) | 0.255 | 0.191 | 1/4" | 8.00mm | 25 | 24 | ||||
| E95530324 | ERT/E-25 | Inch size (ANSI Shanks and Squares) | 0.318 | 0.238 | 5/16" | 8.00mm | 25 | 24 | ||||
| E95530386 | ERT/E-25 | Inch size (ANSI Shanks and Squares) | 0.381 | 0.286 | 3/8" | 8.00mm | 25 | 24 | ||||
| E95530330 | ERT/E-25 | Inch size (ANSI Shanks and Squares) | 0.323 | 0.242 | 7/16" | 8.00mm | 25 | 24 | ||||
| E95530366 | ERT/E-25 | Inch size (ANSI Shanks and Squares) | 0.367 | 0.275 | 1/2" | 8.00mm | 25 | 24 | ||||
| E95540104 | ERT/E-25 | Inch size (ANSI Shanks and Squares) | 0.141 | 0.110 | #0-#6 | 10.00mm | 32 | 27.5 | ||||
| E95540148 | ERT/E-32 | Inch size (ANSI Shanks and Squares) | 0.168 | 0.131 | #8 | 10.00mm | 32 | 27.5 | ||||
| E95540187 | ERT/E-32 | Inch size (ANSI Shanks and Squares) | 0.194 | 0.152 | #10. 3/16 | 10.00mm | 32 | 27.5 | ||||
| E95540212 | ERT/E-32 | Inch size (ANSI Shanks and Squares) | 0.220 | 0.165 | #12 | 10.00mm | 32 | 27.5 | ||||
| E95540266 | ERT/E-32 | Inch size (ANSI Shanks and Squares) | 0.255 | 0.191 | 1/4" | 10.00mm | 32 | 27.5 | ||||
| E95540324 | ERT/E-32 | Inch size (ANSI Shanks and Squares) | 0.318 | 0.238 | 5/16" | 10.00mm | 32 | 27.5 | ||||
| E95540386 | ERT/E-32 | Inch size (ANSI Shanks and Squares) | 0.381 | 0.286 | 3/8" | 10.00mm | 32 | 27.5 | ||||
| E95540330 | ERT/E-32 | Inch size (ANSI Shanks and Squares) | 0.323 | 0.242 | 7/16" | 10.00mm | 32 | 27.5 | ||||
| E95540366 | ERT/E-32 | Inch size (ANSI Shanks and Squares) | 0.367 | 0.275 | 1/2" | 10.00mm | 32 | 27.5 | ||||
| E95540402 | ERT/E-32 | Inch size (ANSI Shanks and Squares) | 0.429 | 0.322 | 9/16" | 10.00mm | 32 | 27.5 | ||||
| E95540435 | ERT/E-32 | Inch size (ANSI Shanks and Squares) | 0.480 | 0.360 | 5/8" | 10.00mm | 32 | 27.5 | ||||
| E95540412 | ERT/E-40 | Inch size (ANSI Shanks and Squares) | 0.437 | 0.328 | 1/8" NPT | 10.00mm | 32 | 27.5 | ||||
| E95550104 | ERT/E-40 | Inch size (ANSI Shanks and Squares) | 0.141 | 0.110 | #0-#6 | 12.00mm | 40 | 34.5 | ||||
| E95550148 | ERT/E-40 | Inch size (ANSI Shanks and Squares) | 0.168 | 0.131 | #8 | 12.00mm | 40 | 34.5 | ||||
| E95550187 | ERT/E-40 | Inch size (ANSI Shanks and Squares) | 0.194 | 0.152 | #10. 3/16 | 12.00mm | 40 | 34.5 | ||||
| E95550212 | ERT/E-40 | Inch size (ANSI Shanks and Squares) | 0.220 | 0.165 | #12 | 12.00mm | 40 | 34.5 | ||||
| E95550266 | ERT/E-40 | Inch size (ANSI Shanks and Squares) | 0.255 | 0.191 | 1/4" | 12.00mm | 40 | 34.5 | ||||
| E95550324 | ERT/E-40 | Inch size (ANSI Shanks and Squares) | 0.318 | 0.238 | 5/16" | 12.00mm | 40 | 34.5 | ||||
| E95550386 | ERT/E-40 | Inch size (ANSI Shanks and Squares) | 0.381 | 0.286 | 3/8" | 12.00mm | 40 | 34.5 | ||||
| E95550330 | ERT/E-40 | Inch size (ANSI Shanks and Squares) | 0.323 | 0.242 | 7/16" | 12.00mm | 40 | 34.5 | ||||
| E95550366 | ERT/E-40 | Inch size (ANSI Shanks and Squares) | 0.367 | 0.275 | 1/2" | 12.00mm | 40 | 34.5 | ||||
| E95550402 | ERT/E-40 | Inch size (ANSI Shanks and Squares) | 0.429 | 0.322 | 9/16" | 12.00mm | 40 | 34.5 | ||||
| E95550435 | ERT/E-40 | Inch size (ANSI Shanks and Squares) | 0.480 | 0.360 | 5/8" | 12.00mm | 40 | 34.5 | ||||
| E95550460 | ERT/E-40 | Inch size (ANSI Shanks and Squares) | 0.542 | 0.406 | 11/16" | 12.00mm | 40 | 34.5 | ||||
| E95550481 | ERT/E-40 | Inch size (ANSI Shanks and Squares) | 0.590 | 0.442 | 3/4" | 12.00mm | 40 | 34.5 | ||||
| E95550412 | ERT/E-40 | Inch size (ANSI Shanks and Squares) | 0.437 | 0.328 | 1/8" NPT | 12.00mm | 40 | 34.5 | ||||
| E95550476 | ERT/E-40 | Inch size (ANSI Shanks and Squares) | 0.562 | 0.421 | 1/4"NPT | 12.00mm | 40 | 34.5 | ||||
| E95550460* | ERT/E-40 | Inch size (ANSI Shanks and Squares) | 0.542 | 0.406 | 3/8"NPT | 12.00mm | 40 | 34.5 | ||||
| E95510038 | ERT/E-16 | Metric sizes (DIN Shanks and Squares) | 3.50 | 2.7 | M4 DIN 376 | 7.00mm | 16 | 21 | ||||
| E95510091 | ERT/E-16 | Metric sizes (DIN Shanks and Squares) | 3.50 | 2.7 | M3 DIN 371 | 7.00mm | 16 | 21 | ||||
| E95510121 | ERT/E-16 | Metric sizes (DIN Shanks and Squares) | 4.00 | 3.0 | M3.5 DIN 371 | 7.00mm | 16 | 21 | ||||
| E95510232 | ERT/E-16 | Metric sizes (DIN Shanks and Squares) | 6.00 | 4.9 | M5 DIN 371 | 7.00mm | 16 | 21 | ||||
| E95510151 | ERT/E-16 | Metric sizes (DIN Shanks and Squares) | 4.50 | 3.4 | M4 DIN 371 | 7.00mm | 16 | 21 | ||||
| E95510232* | ERT/E-16 | Metric sizes (DIN Shanks and Squares) | 6.00 | 4.9 | M6 DIN 371 | 7.00mm | 16 | 21 | ||||
| E95520038 | ERT/E-20 | Metric sizes (DIN Shanks and Squares) | 3.50 | 2.7 | M4 DIN 376 | 7.50mm | 20 | 24 | ||||
| E95520091 | ERT/E-20 | Metric sizes (DIN Shanks and Squares) | 3.50 | 2.7 | M3 DIN 371 | 7.50mm | 20 | 24 | ||||
| E95520121 | ERT/E-20 | Metric sizes (DIN Shanks and Squares) | 4.00 | 3.0 | M3.5 DIN 371 | 7.50mm | 20 | 24 | ||||
| E95520232 | ERT/E-20 | Metric sizes (DIN Shanks and Squares) | 6.00 | 4.9 | M5 DIN 371 | 7.50mm | 20 | 24 | ||||
| E95520151 | ERT/E-20 | Metric sizes (DIN Shanks and Squares) | 4.50 | 3.4 | M4 DIN 371 | 7.50mm | 20 | 24 | ||||
| E95520232* | ERT/E-20 | Metric sizes (DIN Shanks and Squares) | 6.00 | 4.9 | M6 DIN 371 | 7.50mm | 20 | 24 | ||||
| E95520232** | ERT/E-20 | Metric sizes (DIN Shanks and Squares) | 6.00 | 4.9 | M8 DIN 376 | 7.50mm | 20 | 24 | ||||
| E95520274 | ERT/E-20 | Metric sizes (DIN Shanks and Squares) | 7.00 | 5.5 | M10 DIN 376 | 7.50mm | 20 | 24 | ||||
| E95530038 | ERT/E-25 | Metric sizes (DIN Shanks and Squares) | 3.50 | 2.7 | M4 DIN 376 | 8.00mm | 25 | 24 | ||||
| E95530091 | ERT/E-25 | Metric sizes (DIN Shanks and Squares) | 3.50 | 2.7 | M3 DIN 371 | 8.00mm | 25 | 24 | ||||
| E95530121 | ERT/E-25 | Metric sizes (DIN Shanks and Squares) | 4.00 | 3.0 | M3.5 DIN 371 | 8.00mm | 25 | 24 | ||||
| E95530232 | ERT/E-25 | Metric sizes (DIN Shanks and Squares) | 6.00 | 4.9 | M5 DIN 371 | 8.00mm | 25 | 24 | ||||
| E95530151 | ERT/E-25 | Metric sizes (DIN Shanks and Squares) | 4.50 | 3.4 | M4 DIN 371 | 8.00mm | 25 | 24 | ||||
| E95530232* | ERT/E-25 | Metric sizes (DIN Shanks and Squares) | 6.00 | 4.9 | M6 DIN 371 | 8.00mm | 25 | 24 | ||||
| E95530232** | ERT/E-25 | Metric sizes (DIN Shanks and Squares) | 6.00 | 4.9 | M8 DIN 376 | 8.00mm | 25 | 24 | ||||
| E95530274 | ERT/E-25 | Metric sizes (DIN Shanks and Squares) | 7.00 | 5.5 | M10 DIN 376 | 8.00mm | 25 | 24 | ||||
| E95530310 | ERT/E-25 | Metric sizes (DIN Shanks and Squares) | 8.00 | 6.2 | m8-din-371 | 8.00mm | 25 | 24 | ||||
| E95530348 | ERT/E-25 | Metric sizes (DIN Shanks and Squares) | 9.00 | 7.0 | m12 | 8.00mm | 25 | 24 | ||||
| E95540038 | ERT/E-32 | Metric sizes (DIN Shanks and Squares) | 3.50 | 2.7 | M4 DIN 376 | 10.00mm | 32 | 27.5 | ||||
| E95540091 | ERT/E-32 | Metric sizes (DIN Shanks and Squares) | 3.50 | 2.7 | M3 DIN 371 | 10.00mm | 32 | 27.5 | ||||
| E95540121 | ERT/E-32 | Metric sizes (DIN Shanks and Squares) | 4.00 | 3.0 | M3.5 DIN 371 | 10.00mm | 32 | 27.5 | ||||
| E95540232 | ERT/E-32 | Metric sizes (DIN Shanks and Squares) | 6.00 | 4.9 | M5 DIN 371 | 10.00mm | 32 | 27.5 | ||||
| E95540151 | ERT/E-32 | Metric sizes (DIN Shanks and Squares) | 4.50 | 3.4 | M4 DIN 371 | 10.00mm | 32 | 27.5 | ||||
| E95540232* | ERT/E-32 | Metric sizes (DIN Shanks and Squares) | 6.00 | 4.9 | M6 DIN 371 | 10.00mm | 32 | 27.5 | ||||
| E95540232** | ERT/E-32 | Metric sizes (DIN Shanks and Squares) | 6.00 | 4.9 | M8 DIN 376 | 10.00mm | 32 | 27.5 | ||||
| E95540274 | ERT/E-32 | Metric sizes (DIN Shanks and Squares) | 7.00 | 5.5 | M10 DIN 376 | 10.00mm | 32 | 27.5 | ||||
| E95540310 | ERT/E-32 | Metric sizes (DIN Shanks and Squares) | 8.00 | 6.2 | m8-din-371 | 10.00mm | 32 | 27.5 | ||||
| E95540348 | ERT/E-32 | Metric sizes (DIN Shanks and Squares) | 9.00 | 7.0 | m12 | 10.00mm | 32 | 27.5 | ||||
| E95540389 | ERT/E-32 | Metric sizes (DIN Shanks and Squares) | 10.00 | 8.0 | M10 DIN 371 | 10.00mm | 32 | 27.5 | ||||
| E95540408 | ERT/E-32 | Metric sizes (DIN Shanks and Squares) | 11.00 | 9.0 | M14 | 10.00mm | 32 | 27.5 | ||||
| E95540430 | ERT/E-32 | Metric sizes (DIN Shanks and Squares) | 12.00 | 9.0 | M16 | 10.00mm | 32 | 27.5 | ||||
| E95550038 | ERT/E-40 | Metric sizes (DIN Shanks and Squares) | 3.50 | 2.7 | M4 DIN 376 | 12.00mm | 40 | 34.5 | ||||
| E95550091 | ERT/E-40 | Metric sizes (DIN Shanks and Squares) | 3.50 | 2.7 | M3 DIN 371 | 12.00mm | 40 | 34.5 | ||||
| E95550121 | ERT/E-40 | Metric sizes (DIN Shanks and Squares) | 4.00 | 3.0 | M3.5 DIN 371 | 12.00mm | 40 | 34.5 | ||||
| E95550232 | ERT/E-40 | Metric sizes (DIN Shanks and Squares) | 6.00 | 4.9 | M5 DIN 371 | 12.00mm | 40 | 34.5 | ||||
| E95550151 | ERT/E-40 | Metric sizes (DIN Shanks and Squares) | 4.50 | 3.4 | M4 DIN 371 | 12.00mm | 40 | 34.5 | ||||
| E95550232* | ERT/E-40 | Metric sizes (DIN Shanks and Squares) | 6.00 | 4.9 | M6 DIN 371 | 12.00mm | 40 | 34.5 | ||||
| E95550232** | ERT/E-40 | Metric sizes (DIN Shanks and Squares) | 6.00 | 4.9 | M8 DIN 376 | 12.00mm | 40 | 34.5 | ||||
| E95550274 | ERT/E-40 | Metric sizes (DIN Shanks and Squares) | 7.00 | 5.5 | M10 DIN 376 | 12.00mm | 40 | 34.5 | ||||
| E95550310 | ERT/E-40 | Metric sizes (DIN Shanks and Squares) | 8.00 | 6.2 | m8-din-371 | 12.00mm | 40 | 34.5 | ||||
| E95550348 | ERT/E-40 | Metric sizes (DIN Shanks and Squares) | 9.00 | 7.0 | m12 | 12.00mm | 40 | 34.5 | ||||
| E95550389 | ERT/E-40 | Metric sizes (DIN Shanks and Squares) | 10.00 | 8.0 | M10 DIN 371 | 12.00mm | 40 | 34.5 | ||||
| E95550408 | ERT/E-40 | Metric sizes (DIN Shanks and Squares) | 11.00 | 9.0 | M14 | 12.00mm | 40 | 34.5 | ||||
| E95550430 | ERT/E-40 | Metric sizes (DIN Shanks and Squares) | 12.00 | 9.0 | M16 | 12.00mm | 40 | 34.5 | ||||
| E95550465 | ERT/E-40 | Metric sizes (DIN Shanks and Squares) | 14.00 | 11.0 | M18 | 12.00mm | 40 | 34.5 | ||||
| E95550491 | ERT/E-40 | Metric sizes (DIN Shanks and Squares) | 16.00 | 12.0 | M20 | 12.00mm | 40 | 34.5 |
