Face Contact (CATP) 50 End Mill Holders
AccuPlus™ CATP50 Face Contact End Mill Holder
FEATURES:
- Balanced to G2.5 @ 25,000 RPM
- T.I.R. < 0.0004″
- Taper shank ground to AT3 accuracy (or better)
- AD coolant thru the spindle
- Bore Tolerance: H6
Available Options

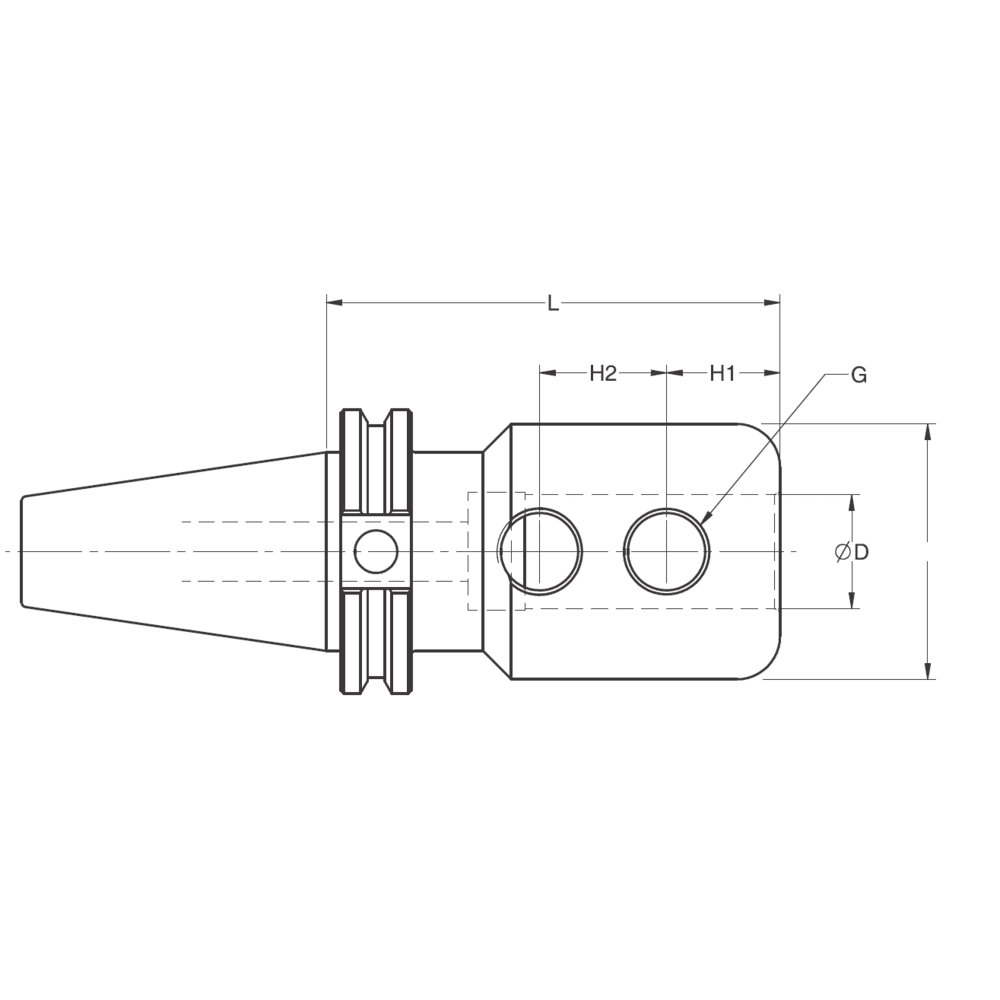

| Cat. no. | Description | -- | ØD (inch) | L (inch) | C (inch) | H1 | H2 | G | Coolant Style | Stock | Price | Quantity | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 841381123 | CATP50-EMH 0.250-4.50 | CATP50 Inch | 0.250 | 4.50 | 0.69 | - | 1/4"-28 | AD Thru | |||||
| 841381130 | CATP50-EMH 0.250-6.00 | CATP50 Inch | 0.250 | 6.00 | 0.69 | 0.56 | - | 1/4"-28 | AD Thru | ||||
| 841382613 | CATP50-EMH 0.375-2.50 | CATP50 Inch | 0.375 | 2.50 | 1.00 | 0.56 | - | 3/8"-24 | AD Thru | ||||
| 841382623 | CATP50-EMH 0.375-4.50 | CATP50 Inch | 0.375 | 4.50 | 1.00 | 0.75 | - | 3/8"-24 | AD Thru | ||||
| 841382631 | CATP50-EMH 0.375-6.00 | CATP50 Inch | 0.375 | 6.00 | 1.00 | 0.75 | - | 3/8"-24 | AD Thru | ||||
| 841381523 | CATP50-EMH 0.500-4.50 | CATP50 Inch | 0.500 | 4.50 | 1.38 | 0.75 | - | 7/16"-20 | AD Thru | ||||
| 841381531 | CATP50-EMH 0.500-6.00 | CATP50 Inch | 0.500 | 6.00 | 1.38 | 0.88 | - | 7/16"-20 | AD Thru | ||||
| 841382823 | CATP50-EMH 0.750-4.50 | CATP50 Inch | 0.750 | 4.50 | 1.75 | 0.88 | - | 5/8"-18 | AD Thru | ||||
| 841382831 | CATP50-EMH 0.750-6.00 | CATP50 Inch | 0.750 | 6.00 | 1.75 | 1.00 | - | 5/8"-18 | AD Thru | ||||
| 841382123 | CATP50-EMH 1.000-4.50 | CATP50 Inch | 1.000 | 4.50 | 2.25 | 1.00 | 1.00 | 3/4"-16* | AD Thru | ||||
| 841382131 | CATP50-EMH 1.000-6.00 | CATP50 Inch | 1.000 | 6.00 | 2.25 | 1.12 | 1.00 | 3/4"-16* | AD Thru | ||||
| 841382141 | CATP50-EMH 1.000-8.00 | CATP50 Inch | 1.000 | 8.00 | 2.25 | 1.12 | 1.00 | 3/4"-16* | AD Thru | ||||
| 841382222 | CATP50-EMH 1.250-4.25 | CATP50 Inch | 1.250 | 4.25 | 2.50 | 1.12 | 1.00 | 3/4"-16* | AD Thru | ||||
| 841382231 | CATP50-EMH 1.250-6.00 | CATP50 Inch | 1.250 | 6.00 | 2.50 | 1.12 | 1.00 | 3/4"-16* | AD Thru | ||||
| 841382241 | CATP50-EMH 1.250-8.00 | CATP50 Inch | 1.250 | 8.00 | 2.50 | 1.12 | 1.00 | 3/4"-16* | AD Thru | ||||
| 841382323 | CATP50-EMH 1.500-4.50 | CATP50 Inch | 1.500 | 4.50 | 2.75 | 1.12 | 1.00 | 3/4"-16* | AD Thru | ||||
| 841382331 | CATP50-EMH 1.500-6.00 | CATP50 Inch | 1.500 | 6.00 | 2.75 | 1.12 | 1.00 | 3/4"-16* | AD Thru | ||||
| 841382341 | CATP50-EMH 1.500-8.00 | CATP50 Inch | 1.500 | 8.00 | 2.75 | 1.12 | 1.00 | 3/4"-16* | AD Thru | ||||
| 841382931 | CATP50-EMH 2.000-6.00 | CATP50 Inch | 2.000 | 6.00 | 3.75 | 1.38 | 1.50 | 1--14* | AD Thru | ||||
| 841383131 | CATP50-EMH 2.500-6.00 | CATP50 Inch | 2.500 | 6.00 | 4.25 | 1.56 | 1.69 | 1--14* | AD Thru | ||||
| 841380623 | CATP50-EMH 6-115 | CATP50 Metric | 6 mm | 115 mm | 25 mm | 18 mm | - | M6x1 | AD Thru | ||||
| 841380823 | CATP50-EMH 8-115 | CATP50 Metric | 8 mm | 115 mm | 28 mm | 18 mm | - | M8x1.25 | AD Thru | ||||
| 841381819 | CATP50-EMH 18-95 | CATP50 Metric | 18 mm | 95 mm | 50 mm | 24 mm | - | M14x2 | AD Thru | ||||
| 841383220 | CATP50-EMH 32-100 | CATP50 Metric | 32 mm | 100 mm | 72 mm | 22 mm | 24 mm | M20x2 | AD Thru |
