Hydraulic Chuck, PTI Taper Holders

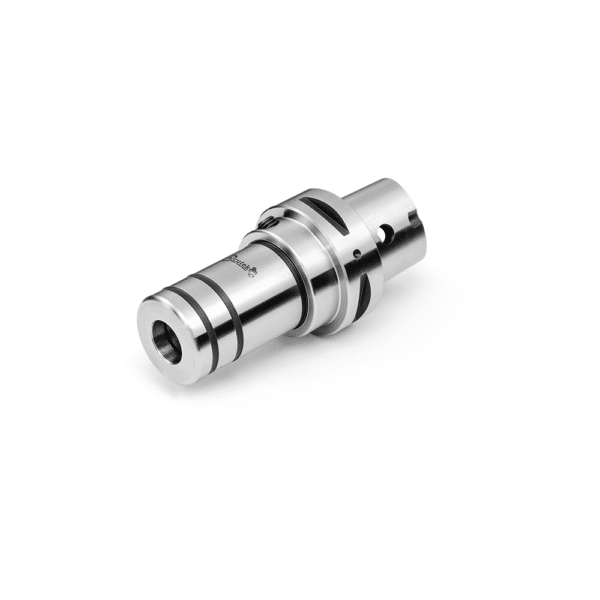

PTI AccuClamp™ Hydraulic Chuck
FEATURES:
- Balanced to G2.5 @ 25,000 RPM
- T.I.R. < 0.0002”
- Bore tolerance: H6
Available Options

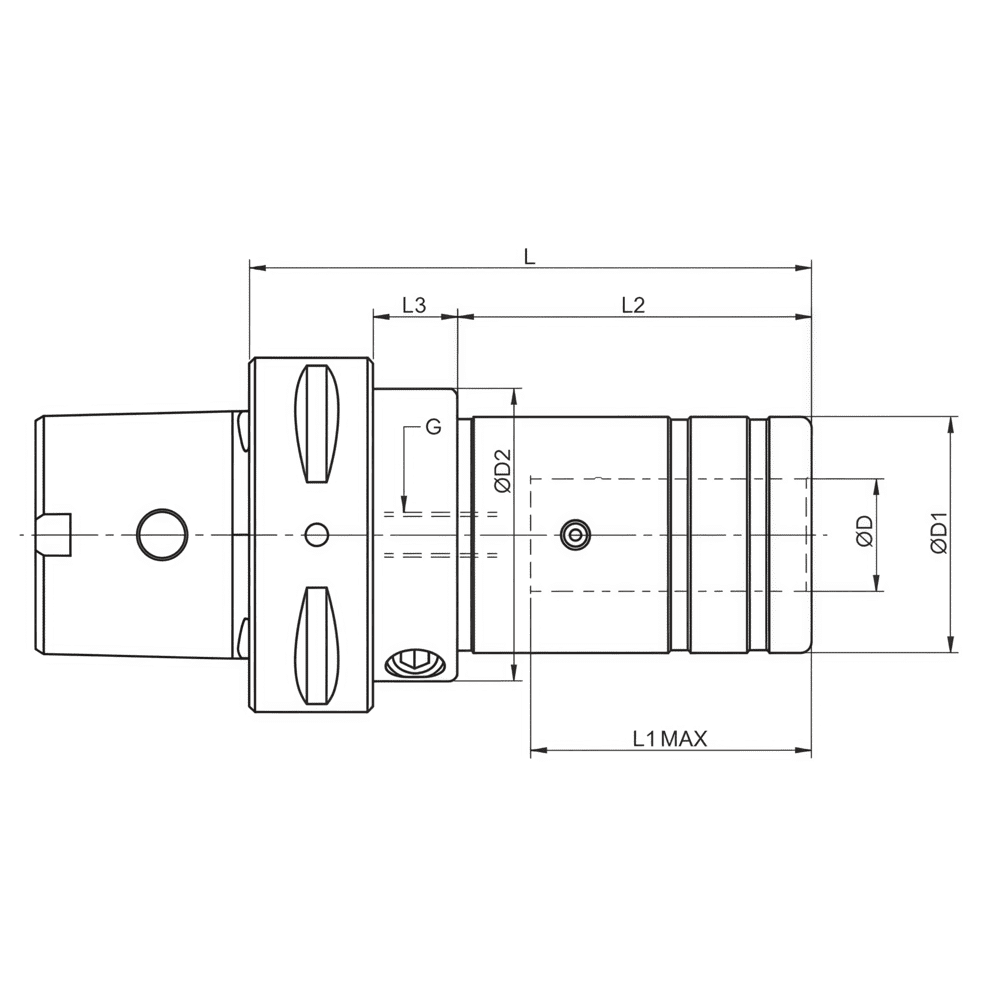

| Cat. no. | Description | - | ØD | ØD1 | ØD2 | L | L1 Max. | L2 | L3 | G | Coolant Style | Stock | Price | Quantity | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 68682020 | PTI50-HCS 20-100 | PTI50 Shank | 20 | 42 | 50 | 100 | 52 | 56 | 16 | M8x1 | AD Thru | ||||
| 68682820 | PTI50-HCS 0.750-3.94 | PTI50 Shank | 0.750” | 1.65 | 1.97 | 3.94” | 2.05 | 2.20 | 0.63 | M8x1 | AD Thru | ||||
| 68682520 | PTI50-HCS 25-100 | PTI50 Shank | 25 | 50 | - | 100 | 52 | - | - | M8x1 | AD Thru | ||||
| 68692020 | PTI63-HCS 20-100 | PTI63 Shank | 20 | 42 | 52 | 100 | 52 | 56 | 22 | M8x1 | AD Thru | ||||
| 68692525 | PTI63-HCS 25-125 | PTI63 Shank | 25 | 52 | 52 | 125 | 52 | 102 | - | M8x1 | AD Thru | ||||
| 68693225 | PTI63-HCS 32-125 | PTI63 Shank | 32 | 60 | - | 125 | 62 | 102 | - | M8x1 | AD Thru | ||||
| 68692820 | PTI63-HCS 0.750-3.94 | PTI63 Shank | 0.750” | 42 | 52 | 3.94” | 52 | 56 | 0.86 | M8x1 | AD Thru | ||||
| 68692225 | PTI63-HCS 1.250-5.00 | PTI63 Shank | 1.250” | 60 | - | 5.00” | 2.44” | 4.05” | - | M8x1 | AD Thru |
