Face Contact (CATP) 40 Blanks
CATP40 AccuPlus™ Face Contact Blank
FEATURES:
- Shank Hardness 54-56 HRC
- Taper shank ground to AT3 accuracy (or better)
- Blank Hardness 28-32 HRC
Available Options

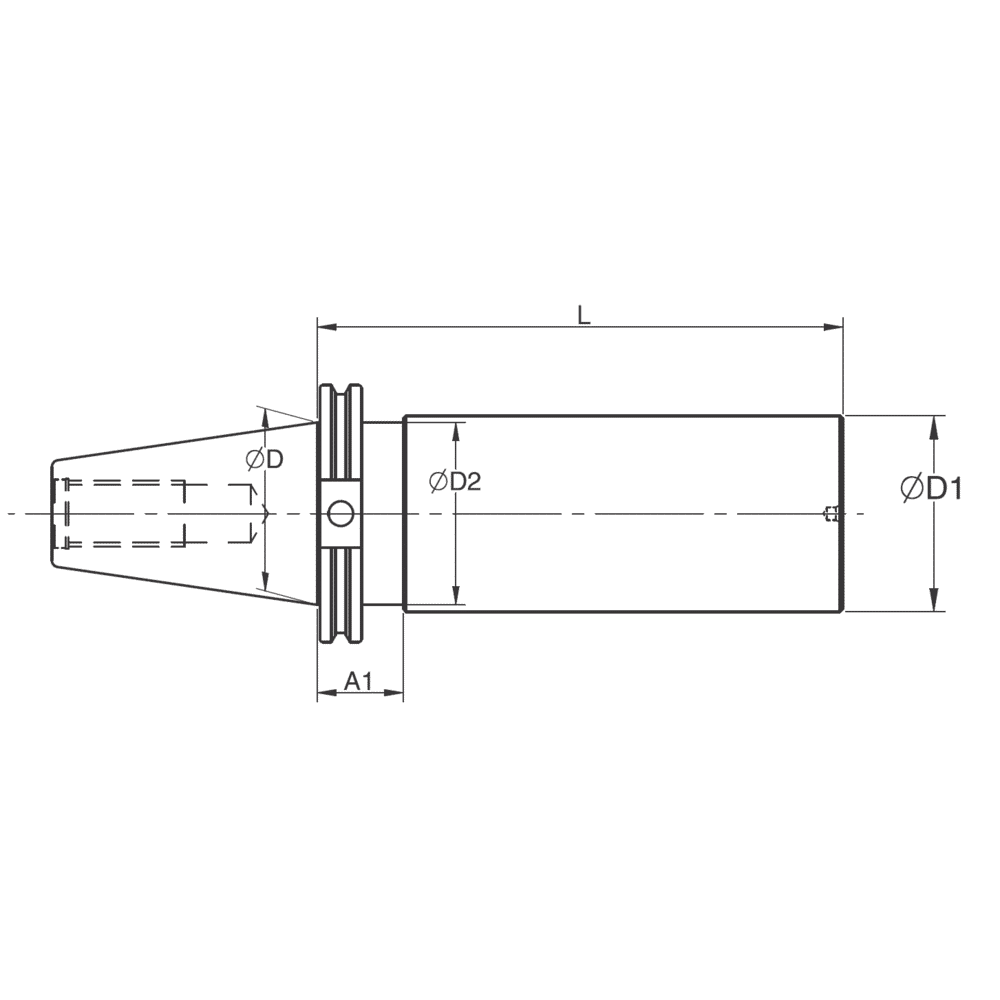

| Cat. no. | Description | ØD (mm) | ØD1 (mm) | L (mm) | A1 (mm) | ØD2 (mm) | Stock | Price | Quantity | |
|---|---|---|---|---|---|---|---|---|---|---|
| A1136040150 | CATP40 Blank Dia 40-150 | 44.45 | 40 | 150 | - | - | ||||
| A1136040200 | CATP40 Blank Dia 40-200 | 44.45 | 40 | 200 | - | - | ||||
| A1136063150 | CATP40 Blank Dia 63-150 | 44.45 | 63 | 150 | 35 | 44.45 | ||||
| A1136063200 | CATP40 Blank Dia 63-200 | 44.45 | 63 | 200 | 35 | 44.45 | ||||
| A1136090150 | CATP40 Blank Dia 90-150 | 44.45 | 90 | 150 | 35 | 44.45 | ||||
| A1136090200 | CATP40 Blank Dia 90-200 | 44.45 | 90 | 200 | 35 | 44.45 |
