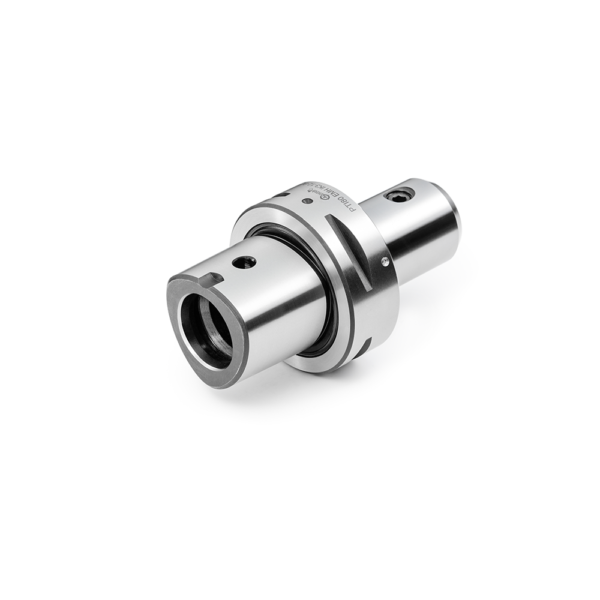

PTI End Mill Holder
PTI End Mill Holder
FEATURES:
- Balanced to G2.5 @ 25,000 RPM
- Bore tolerance: H6
- T.I.R. < 0.0004″
Available Options

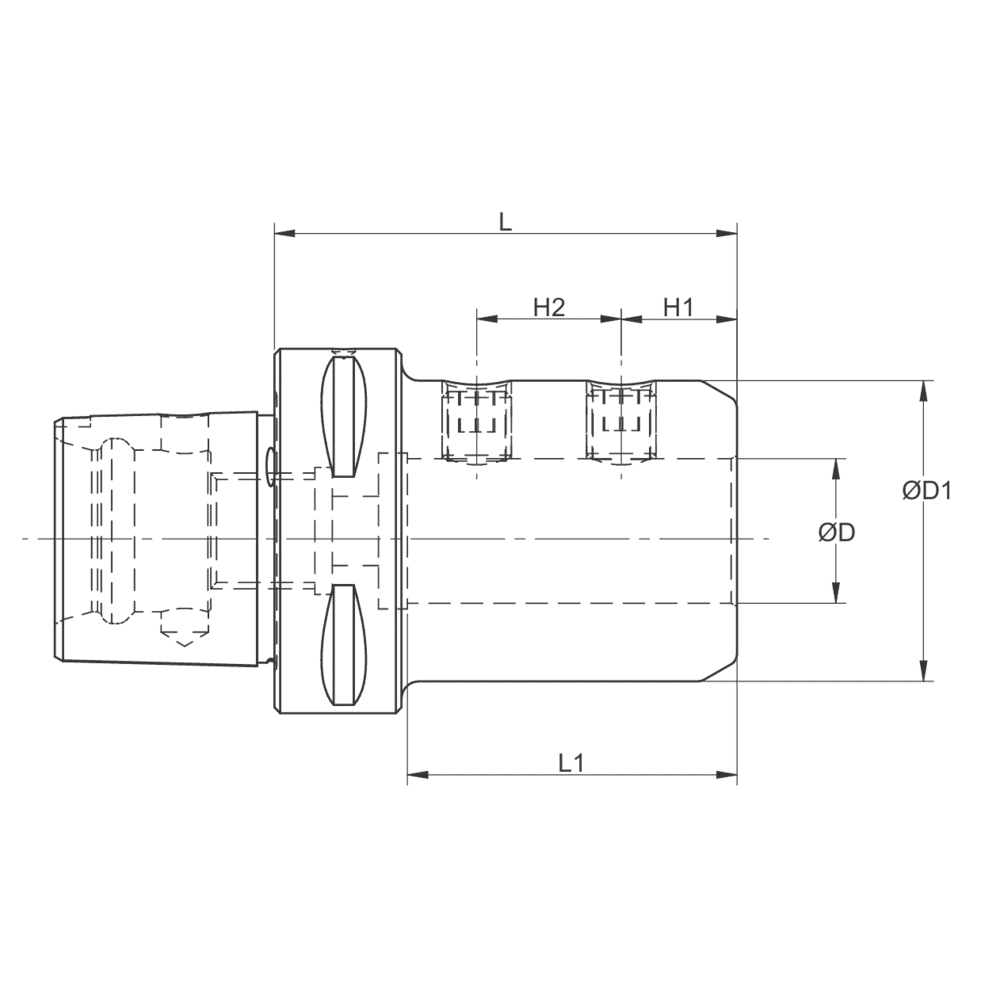

| Cat. no. | Description | - | ØD (inch) | L (inch) | L1 (inch) | ØD1 (inch) | H1 (inch) | H2 (inch) | G | Coolant Style | Stock | Price | Quantity | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 84671115 | PTI40-EMH 0.250-3.00 | PTI40 SHANK | 0.250 | 3.00 | 0.870 | 0.690 | 0.56 | - | 1/4"-28 | AD Thru | ||||
| 84671316 | PTI40-EMH 0.312-3.15 | PTI40 SHANK | 0.312 | 3.15 | 1.060 | 1.000 | 0.75 | - | 1/4"-28 | AD Thru | ||||
| 84672616 | PTI40-EMH 0.375-3.15 | PTI40 SHANK | 0.375 | 3.15 | 1.490 | 1.000 | 0.75 | - | 3/8"-24 | AD Thru | ||||
| 84671516 | PTI40-EMH 0.500-3.15 | PTI40 SHANK | 0.500 | 3.15 | 1.730 | 1.750 | 0.88 | - | 7/16"-20 | AD Thru | ||||
| 84671713 | PTI40-EMH 0.625-2.50 | PTI40 SHANK | 0.625 | 2.50 | 1.890 | 1.620 | 0.94 | - | 9/16"-18 | AD Thru | ||||
| 84672817 | PTI40-EMH 0.750-3.35 | PTI40 SHANK | 0.750 | 3.35 | 2.010 | 1.750 | 1.00 | - | 5/8"-18 | AD Thru | ||||
| 84681115 | PTI50-EMH 0.250-3.00 | PTI50 SHANK | 0.250 | 3.00 | 0.870 | 0.690 | 0.56 | - | 1/4"-28 | AD Thru | ||||
| 84681316 | PTI50-EMH 0.312-3.15 | PTI50 SHANK | 0.312 | 3.15 | 1.060 | 1.000 | 0.75 | - | 1/4"-28 | AD Thru | ||||
| 84682616 | PTI50-EMH 0.375-3.15 | PTI50 SHANK | 0.375 | 3.15 | 1.490 | 1.000 | 0.75 | - | 3/8"-24 | AD Thru | ||||
| 84681516 | PTI50-EMH 0.500-3.15 | PTI50 SHANK | 0.500 | 3.15 | 1.730 | 1.750 | 0.75 | - | 7/16"-20 | AD Thru | ||||
| 84681716 | PTI50-EMH 0.625-3.15 | PTI50 SHANK | 0.625 | 3.15 | 1.890 | 1.620 | 0.94 | - | 9/16"-18 | AD Thru | ||||
| 84682817 | PTI50-EMH 0.750-3.35 | PTI50 SHANK | 0.750 | 3.35 | 2.010 | 1.750 | 1.00 | - | 5/8"-18 | AD Thru | ||||
| 84682118 | PTI50-EMH 1.000-3.54 | PTI50 SHANK | 1.000 | 3.54 | 3.000 | 1.950 | 1.12 | 1.00 | 3/4"-16 | AD Thru | ||||
| 84682218 | PTI50-EMH 1.250-3.54 | PTI50 SHANK | 1.250 | 3.54 | 3.000 | 2.500 | 1.12 | 1.00 | 3/4"-16 | AD Thru | ||||
| 84691115 | PTI63-EMH 0.250-3.00 | PTI63 SHANK | 0.250 | 3.00 | 0.870 | 0.690 | 0.56 | - | 1/4"-28 | AD Thru | ||||
| 84691316 | PTI63-EMH 0.312-3.15 | PTI63 SHANK | 0.312 | 3.15 | 1.060 | 1.000 | 0.75 | - | 1/4"-28 | AD Thru | ||||
| 84692616 | PTI63-EMH 0.375-3.15 | PTI63 SHANK | 0.375 | 3.15 | 1.490 | 1.000 | 0.75 | - | 3/8"-24 | AD Thru | ||||
| 84691516 | PTI63-EMH 0.500-3.15 | PTI63 SHANK | 0.500 | 3.15 | 1.730 | 1.750 | 0.75 | - | 7/16"-20 | AD Thru | ||||
| 84691716 | PTI63-EMH 0.625-3.15 | PTI63 SHANK | 0.625 | 3.15 | 1.890 | 1.620 | 0.94 | - | 9/16"-18 | AD Thru | ||||
| 84692817 | PTI63-EMH 0.750-3.35 | PTI63 SHANK | 0.750 | 3.35 | 2.010 | 1.750 | 1.00 | - | 5/8"-18 | AD Thru | ||||
| 84692118 | PTI63-EMH 1.000-3.54 | PTI63 SHANK | 1.000 | 3.54 | 3.000 | 1.950 | 1.12 | 1.00 | 3/4"-16 | AD Thru | ||||
| 84692218 | PTI63-EMH 1.250-3.54 | PTI63 SHANK | 1.250 | 3.54 | 3.000 | 2.500 | 1.12 | 1.00 | 3/4"-16 | AD Thru | ||||
| 84692319 | PTI63-EMH 1.500-3.70 | PTI63 SHANK | 1.500 | 3.70 | 3.150 | 2.750 | 1.12 | 1.00 | 3/4"-16 | AD Thru |
