CAT 50 Blanks
CAT50 Blanks
FEATURES:
- Shank Hardness 54-56 HRC
- Taper shank ground to AT3 accuracy (or better)
- Blank Hardness 28-32 HRC
- ANSI/ASME 5.50-1994
Available Options

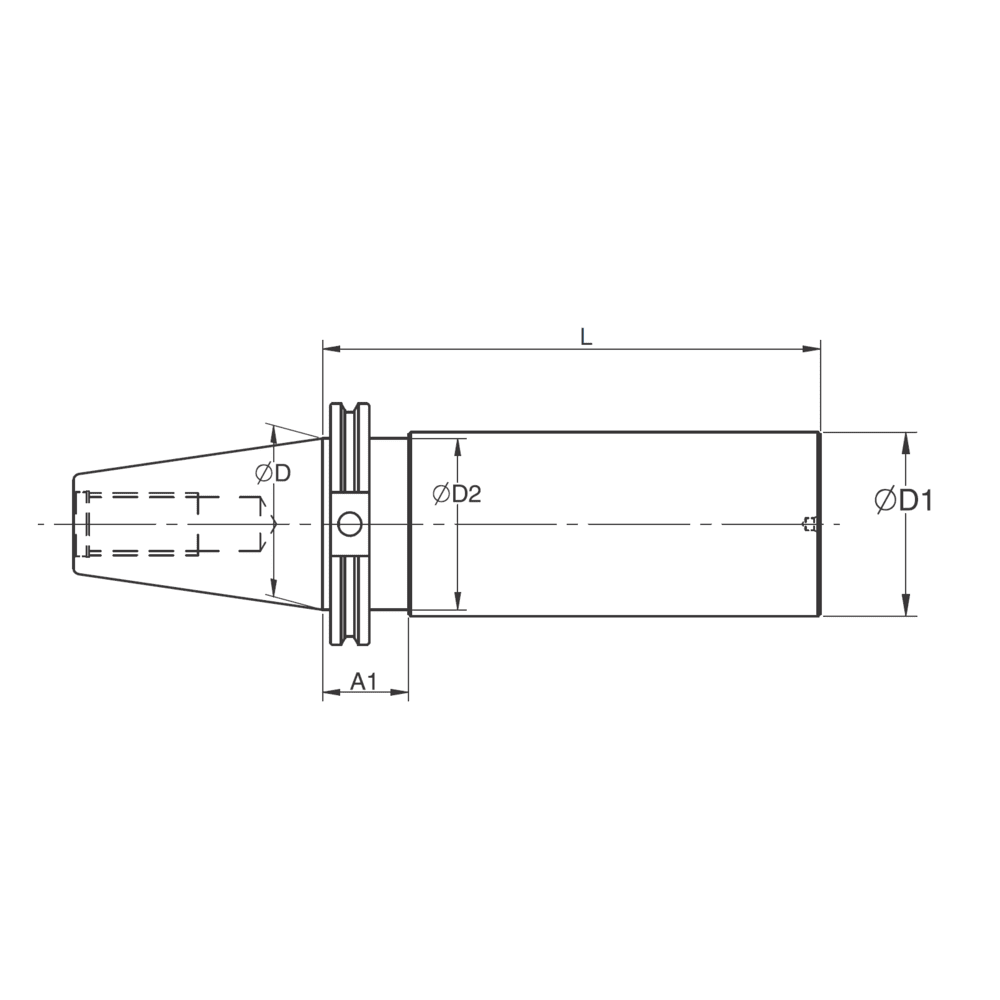

| Cat. no. | Description | ØD (mm) | ØD1 (mm) | L (mm) | A1 (mm) | ØD2 (mm) | Stock | Price | Quantity | |
|---|---|---|---|---|---|---|---|---|---|---|
| A126075150 | CAT50 Blank Dia. 75-150 | 69.85 | 75 | 150 | 35 | 69.85 | ||||
| A126075250 | CAT50 Blank Dia. 75-250 | 69.85 | 75 | 250 | 35 | 69.85 | ||||
| A126100175 | CAT50 Blank Dia. 100-175 | 69.85 | 100 | 175 | 35 | 69.85 | ||||
| A126100300 | CAT50 Blank Dia. 100-300 | 69.85 | 100 | 300 | 35 | 69.85 | ||||
| A126120200 | CAT50 Blank Dia. 120-200 | 69.85 | 120 | 200 | 35 | 69.85 | ||||
| A126120300 | CAT50 Blank Dia. 120-300 | 69.85 | 120 | 300 | 35 | 69.85 |
