NOTE: ALL Shell Mill Holders are supplied with coolant through the center up to the arbor screw hole.
* Represents holders provide with metric allen cap bolt.
Face Contact (CATP) 50 Shell Mill Holder
AccuPlus™ CATP50 Face Contact Shell Mill Holder
FEATURES:
- Balanced to G2.5 @ 25,000 RPM
- Taper shank ground to AT3 accuracy (or better)
- T.I.R. < 0.0002″
- Coolant through the center of the body
Available Options

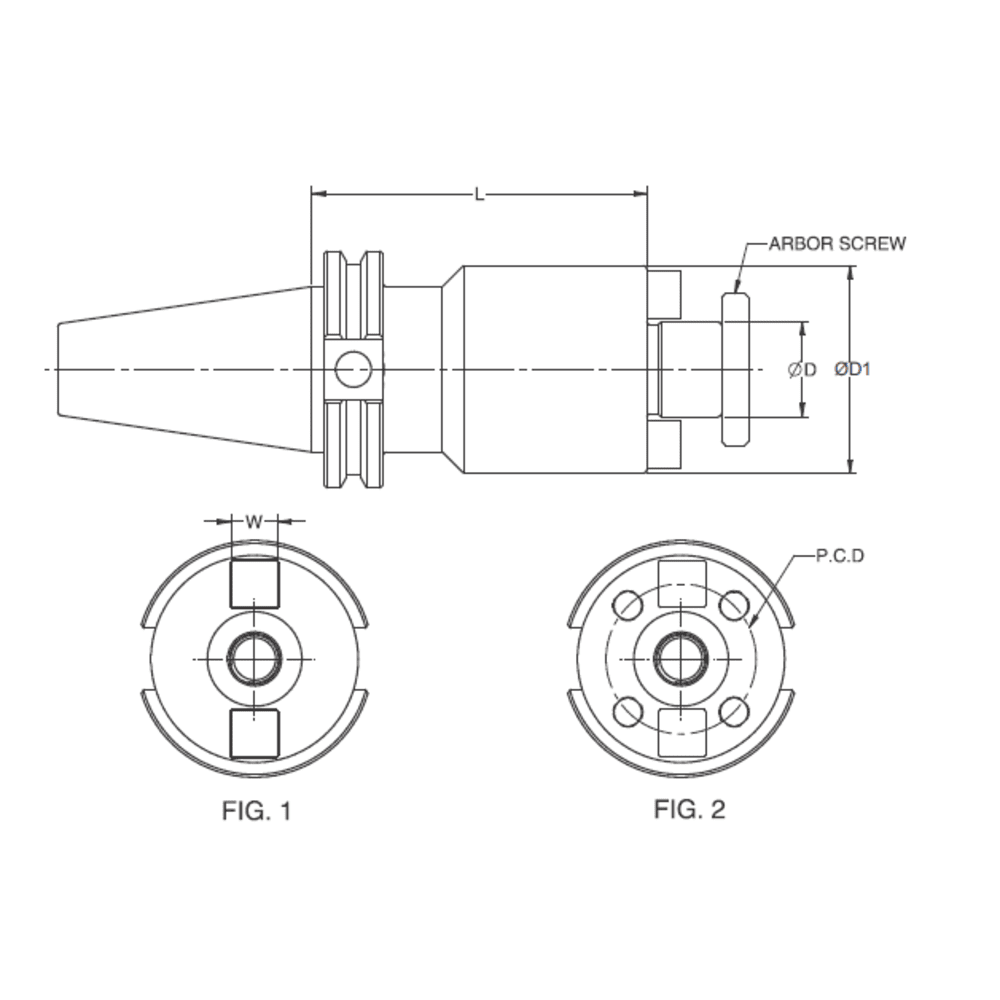

| Cat. no. | Description | Fig. No. | ØD (inch) | L (inch) | ØD1 (inch) | W (inch) | P.C.D | Coolant Style | Stock | Price | Quantity | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 811387511 | CATP50-SMH 0.750-2.00 | 1 | 0.75 | 2.00 | 1.75 | 0.312 | - | AD Thru | ||||
| 811387521 | CATP50-SMH 0.750-4.00 | 1 | 0.75 | 4.00 | 1.75 | 0.312 | - | AD Thru | ||||
| 811387531 | CATP50-SMH 0.750-6.00 | 1 | 0.75 | 6.00 | 1.75 | 0.312 | - | AD Thru | ||||
| 811381011 | CATP50-SMH 1.00-2.00 | 1 | 1.00 | 2.00 | 2.19 | 0.375 | - | AD Thru | ||||
| 811381021 | CATP50-SMH 1.00-4.00 | 1 | 1.00 | 4.00 | 2.19 | 0.375 | - | AD Thru | ||||
| 811381031 | CATP50-SMH 1.00-6.00 | 1 | 1.00 | 6.00 | 2.19 | 0.375 | - | AD Thru | ||||
| 811381041 | CATP50-SMH 1.00-8.00 | 1 | 1.00 | 8.00 | 2.19 | 0.375 | - | AD Thru | ||||
| 811381051 | CATP50-SMH 1.00-10.00 | 1 | 1.00 | 10.00 | 2.19 | 0.375 | - | AD Thru | ||||
| 811381061 | CATP50-SMH 1.00-12.00 | 1 | 1.00 | 12.00 | 2.19 | 0.375 | - | AD Thru | ||||
| 811381211 | CATP50-SMH 1.25-2.00 | 1 | 1.25 | 2.00 | 2.75 | 0.500 | - | AD Thru | ||||
| 811381221 | CATP50-SMH 1.25-4.00 | 1 | 1.25 | 4.00 | 2.75 | 0.500 | - | AD Thru | ||||
| 811381231 | CATP50-SMH 1.25-6.00 | 1 | 1.25 | 6.00 | 2.75 | 0.500 | - | AD Thru | ||||
| 811381241 | CATP50-SMH 1.25-8.00 | 1 | 1.25 | 8.00 | 2.75 | 0.500 | - | AD Thru | ||||
| 811381251 | CATP50-SMH 1.25-10.00 | 1 | 1.25 | 10.00 | 2.75 | 0.500 | - | AD Thru | ||||
| 811381261 | CATP50-SMH 1.25-12.00 | 1 | 1.25 | 12.00 | 2.75 | 0.500 | - | AD Thru | ||||
| 811381523 | CATP50-SMH 1.50-4.50 | 1 | 1.50 | 4.50 | 3.94 | 0.625 | - | AD Thru | ||||
| 811381511 | CATP50-SMH 1.50-2.00 | 1 | 1.50 | 2.00 | 3.94 | 0.625 | - | AD Thru | ||||
| 811381521 | CATP50-SMH 1.50-4.00 | 1 | 1.50 | 4.00 | 3.94 | 0.625 | - | AD Thru | ||||
| 811381531 | CATP50-SMH 1.50-6.00 | 1 | 1.50 | 6.00 | 3.94 | 0.625 | - | AD Thru | ||||
| 811381541 | CATP50-SMH 1.50-8.00 | 1 | 1.50 | 8.00 | 3.94 | 0.625 | - | AD Thru | ||||
| 811381551 | CATP50-SMH 1.50-10.00 | 1 | 1.50 | 10.00 | 3.94 | 0.625 | - | AD Thru | ||||
| 811381561 | CATP50-SMH 1.50-12.00 | 1 | 1.50 | 12.00 | 3.94 | 0.625 | - | AD Thru | ||||
| 8113820F13 | CATP50-FMH 2.00-2.50 | 2 | 2.00 | 2.50 | 4.90 | 0.750 | 4.0 | AD Thru | ||||
| 8113820F21 | CATP50-FMH 2.00-4.00 | 2 | 2.00 | 4.00 | 4.90 | 0.750 | 4.0 | AD Thru | ||||
| 8113825F13 | CATP50-FMH 2.50-2.50 | 2 | 2.50 | 2.50 | 4.90 | 1.000 | 4.0 | AD Thru | ||||
| 8113825F20 | CATP50-FMH 2.50-4.00 | 2 | 2.50 | 4.00 | 4.90 | 1.000 | 4.00 | AD Thru | ||||
| 811381621 | CATP50-SMH 16-4.00 | 2 | 16 mm | 101.6 mm | 36 mm | 8 mm | - | AD Thru | ||||
| 811381641 | CATP50-SMH 16-8.00 | 2 | 16 mm | 203.2 mm | 36 mm | 8 mm | - | AD Thru | ||||
| 811382241 | CATP50-SMH 22-8.00 | 2 | 22 mm | 203.2 mm | 48 mm | 10 mm | - | AD Thru | ||||
| 811383224 | CATP50-SMH 32-120 | 2 | 32 mm | 120 mm | 78 mm | 14 mm | - | AD Thru |
