Face Contact (CATP) 50 Blanks
CATP50 AccuPlus™ Face Contact Blank
FEATURES:
- Shank Hardness 54-56 HRC
- Taper shank ground to AT3 accuracy (or better)
- Blank Hardness 28-32 HRC
Available Options

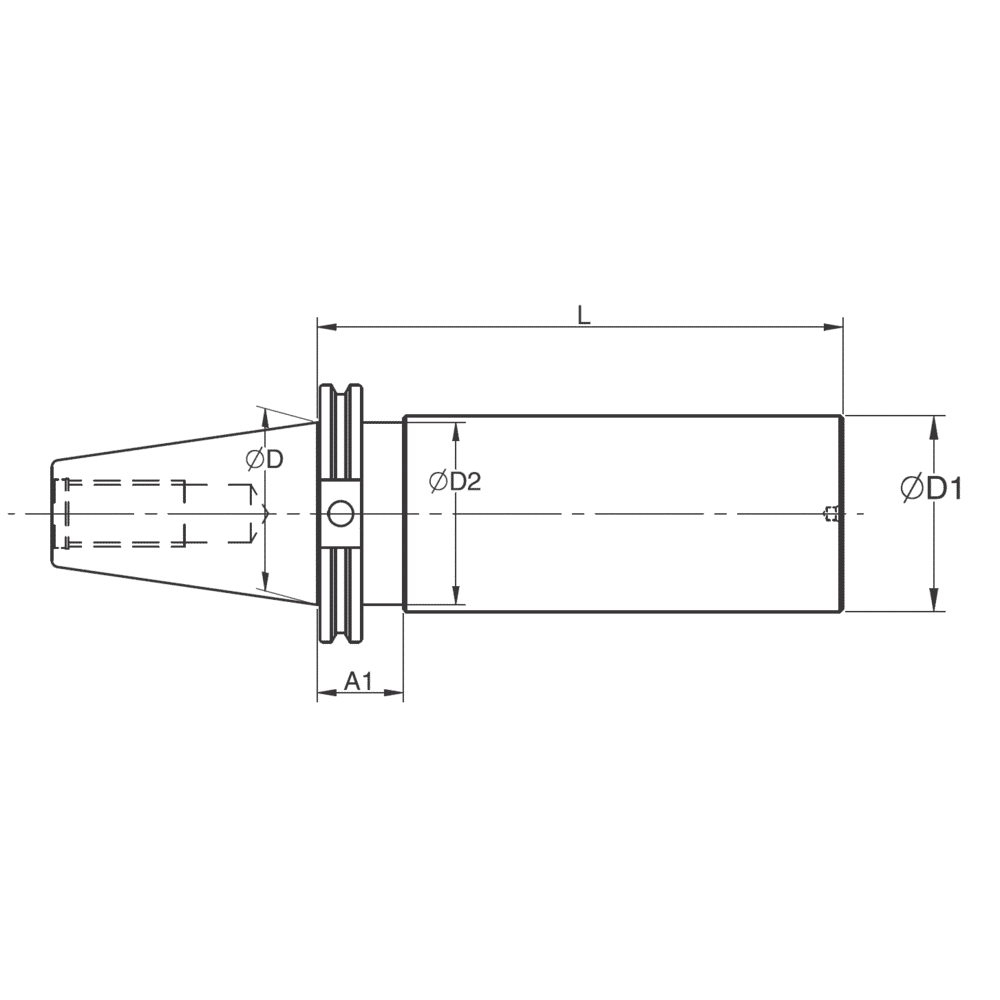

| Cat. no. | Description | ØD (mm) | ØD1 (mm) | L (mm) | A1 (mm) | ØD2 (mm) | Stock | Price | Quantity | |
|---|---|---|---|---|---|---|---|---|---|---|
| A1136075150 | CATP50 Blank Dia 75-150 | 69.85 | 75 | 150 | 35 | 69.85 | ||||
| A1138075250 | CATP50 Blank Dia 75-250 | 69.85 | 75 | 250 | 35 | 69.85 | ||||
| A1138100175 | CATP50 Blank Dia 100-150 | 69.85 | 100 | 175 | 35 | 69.85 | ||||
| A1138100300 | CATP50 Blank Dia 100-300 | 69.85 | 100 | 300 | 35 | 69.85 | ||||
| A1138120200 | CATP50 Blank Dia 120-200 | 69.85 | 120 | 200 | 35 | 69.85 | ||||
| A1138120300 | CATP50 Blank Dia 120-300 | 69.85 | 120 | 300 | 35 | 69.85 |
