HSK AccuMill™ Multi-Milling Chuck
HSK-A AccuMill™ Multi-Milling Chuck
FEATURES:
- Balanced to G2.5 @ 25,000 RPM
- T.I.R. < 0.0002”
- Bore tolerance: H6
Available Options

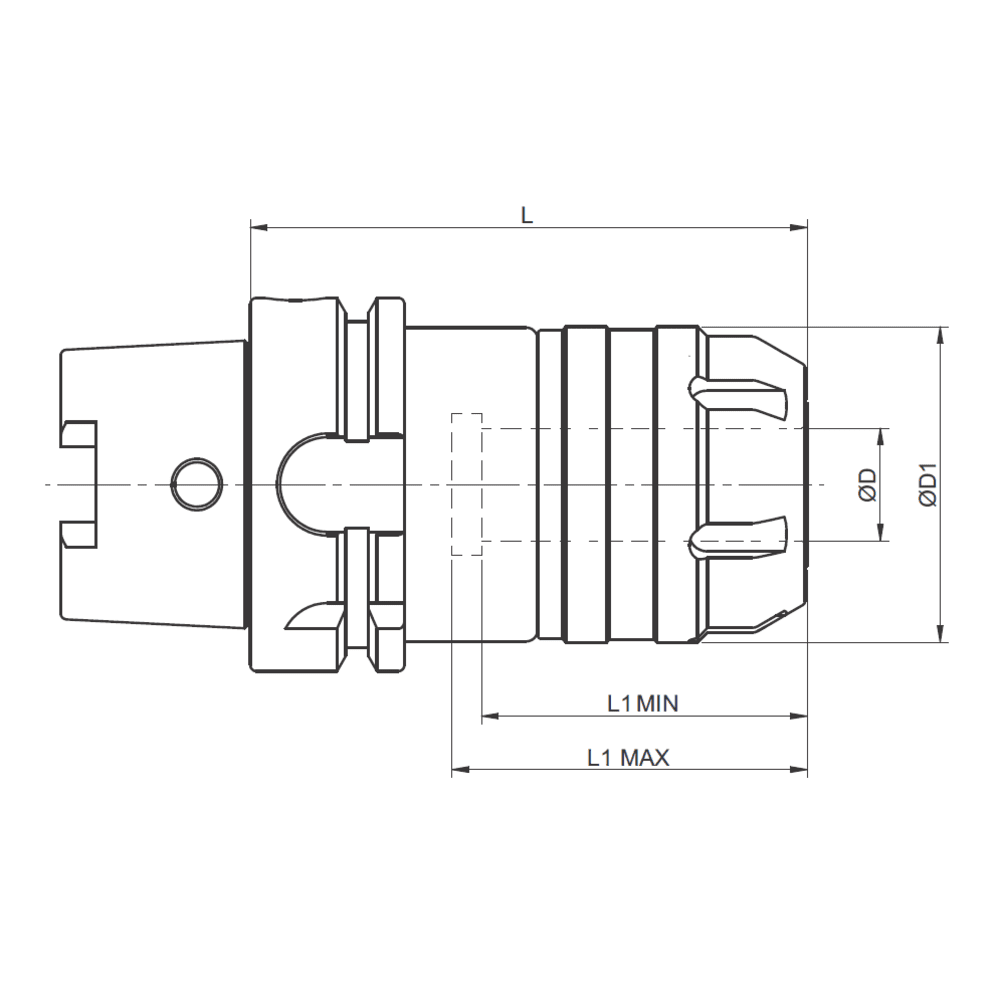

| Cat. no. | Description | Collet Size | Collet Capacity Range | ØD (inch) | ØD1 (inch) | L (inch) | L1 Min/Max | Coolant Style | Stock | Price | Quantity | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 9774A2821 | HSK63A-MMC 0.750-4.13 | MC75 | .125 - .625 | 0-75 | 2.09 | 4.13 | 2.50/2.75 | AD Thru | ||||
| 9774A2824 | HSK63A-MMC 0.750-4.72 | MC75 | .125 - .625 | 0-75 | 2.09 | 4.72 | 2.50/2.75 | AD Thru | ||||
| 9774A2225 | HSK63A-MMC 1.250-4.92 | MC125 | .125 - 1.00 | 1-25 | 2.64 | 4.92 | 3.09/3.34 | AD Thru | ||||
| 9776A2824 | HSK100A-MMC 0.750-4.75 | MC75 | .125 - .625 | 0-75 | 2.09 | 4.75 | 2.50/2.75 | AD Thru | ||||
| 9776A2228 | HSK100A-MMC 1.250-5.50 | MC125 | .125 - 1.00 | 1-25 | 2.64 | 5-5 | 3.09/3.34 | AD Thru |
