HSK Hydraulic Holders
HSK-A AccuClamp™ Hydraulic Chuck
FEATURES:
- Balanced to G2.5 @ 25,000 RPM
- T.I.R. < 0.0002”
- Bore tolerance: H6
Available Options

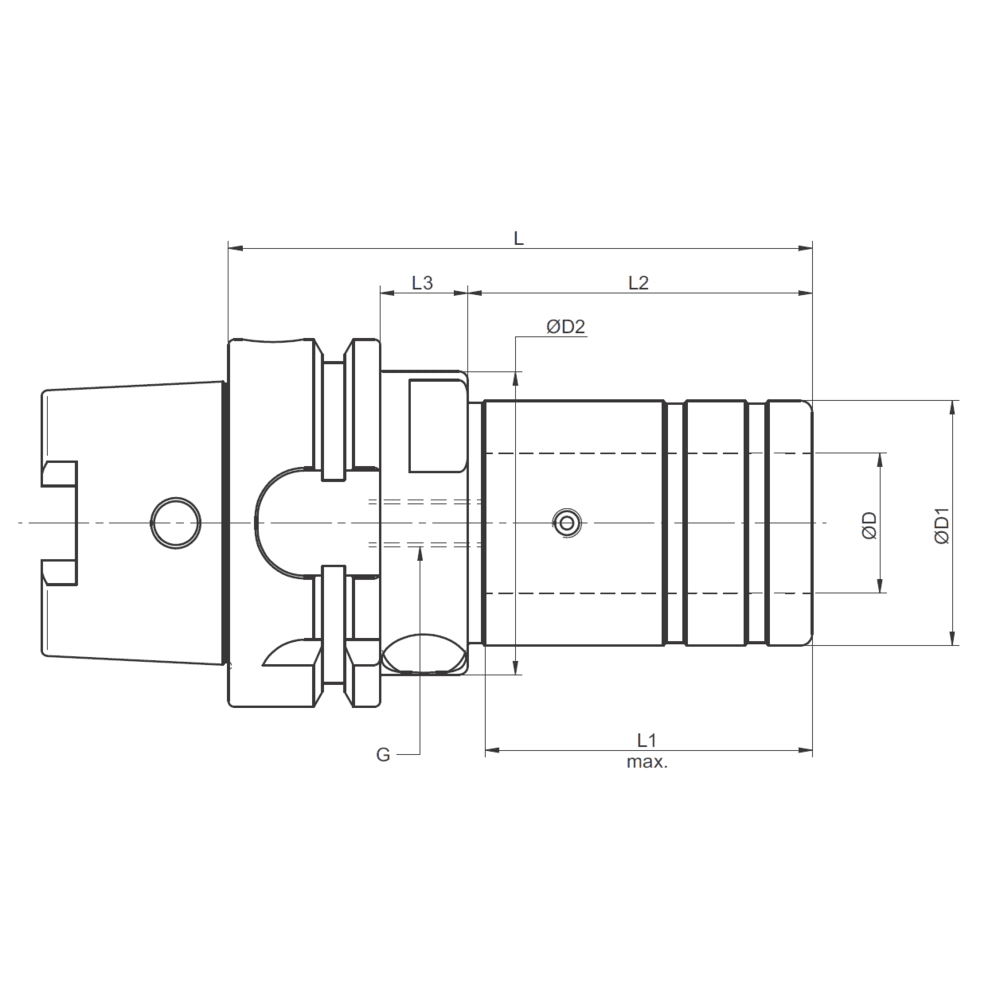

| Cat. no. | Description | ØD (inch) | ØD1 (inch) | ØD2 (inch) | L (inch) | L1 (inch) | L2 (inch) | L3 (inch) | G (inch) | Coolant Style | Stock | Price | Quantity | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6873A2620 | HSK50A-HCS 0.375-4.00 | 0.375 | 1.18 | 1.65 | 4.00 | 1.57 | 2.20 | 0.71 | M8x1 | AD Thru | ||||
| 6873A1520 | HSK50A-HCS 0.500-4.00 | 0.500 | 1.65 | - | 4.00 | 1.78 | 2.91 | - | M8x1 | AD Thru | ||||
| 6873A2824 | HSK50A-HCS 0.750-4.75 | 0.750 | 1.65 | 1.97 | 4.75 | 2.05 | 2.20 | 0.78 | M8x1 | AD Thru | ||||
| 6874A2820 | HSK63A-HCS 0.750-4.00 | 0.750 | 1.65 | 2.05 | 4.00 | 2.05 | 2.20 | 0.78 | M8x1 | AD Thru | ||||
| 6874A2225 | HSK63A-HCS 1.25-5.00 | 1.250 | 2.36 | - | 5.00 | 2.44 | 4.00 | - | M8x1 | AD Thru | ||||
| 6876A2823 | HSK100A-HCS 0.750-4.50 | 0.750 | 1.65 | 2.05 | 4.50 | 2.05 | 2.40 | 0.95 | M8x1 | AD Thru | ||||
| 6876A2225 | HSK100A-HCS 1.25-5.00 | 1.250 | 2.36 | 2.75 | 5.00 | 2.44 | 2.91 | 0.95 | M8x1 | AD Thru |
