BT30 Shell Mill Holder (MAS 403)

BT30 Shell Mill Holder (MAS 403)

FEATURES:

  • Balanced to G2.5 @ 25,000 RPM
  • Taper shank ground to AT3 accuracy (or better)
  • T.I.R. < 0.0004”
  • Coolant through the center of the body
Cat. no.: N/A Category:

Available Options

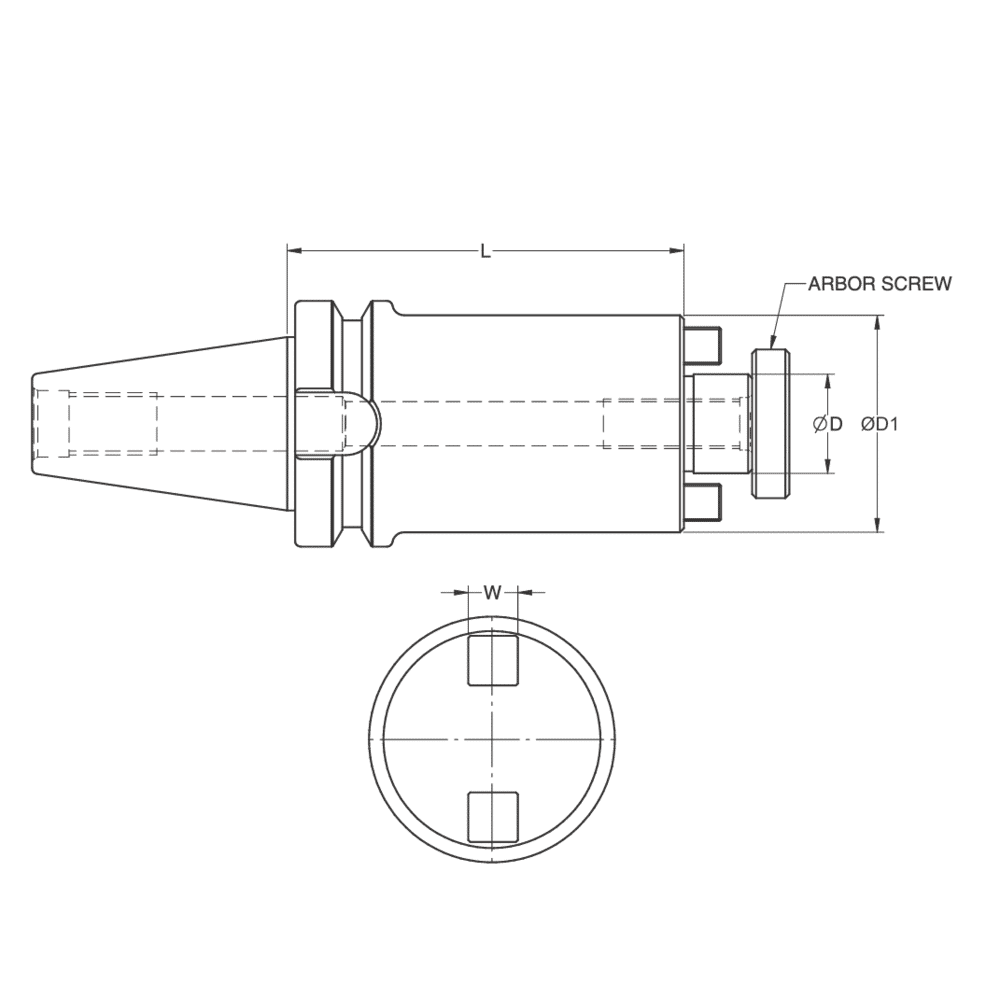

Cat. no.Description--ØDLØD1HWCoolant StyleRet. ScrewStockPriceQuantity
81105006BT30-SMH 0.500-1.13BT30 Inch0.5001.131.340.560.250AD THRU1/4-28
81107506BT30-SMH 0.750-1.18BT30 Inch0.7501.181.940.690.312AD THRU3/8-24
81101009BT30-SMH 1.000-1.77BT30 Inch1.0001.772.190.690.375AD THRU1/2-20
81101606BT30-SMH 16-30BT30 Metric163034158AD THRUM8X25*
81102209BT30-SMH 22-45BT30 Metric2245451810AD THRUM10X30*

NOTE: ALL Shell Mill Holders are supplied with coolant through the center up to the arbor screw hole. Represents Holders provided with metric allen cap bolt.
