HSK63A AccuGrip™ Shrink Fit Holders – Long DIN Length

FEATURES:

Balanced to G2.5 @25,000 RPM
T.I.R. < 0.00012” / 0.003µ

Cat. no.: N/A Category: HSK Shrink Fit Holders

Available Options

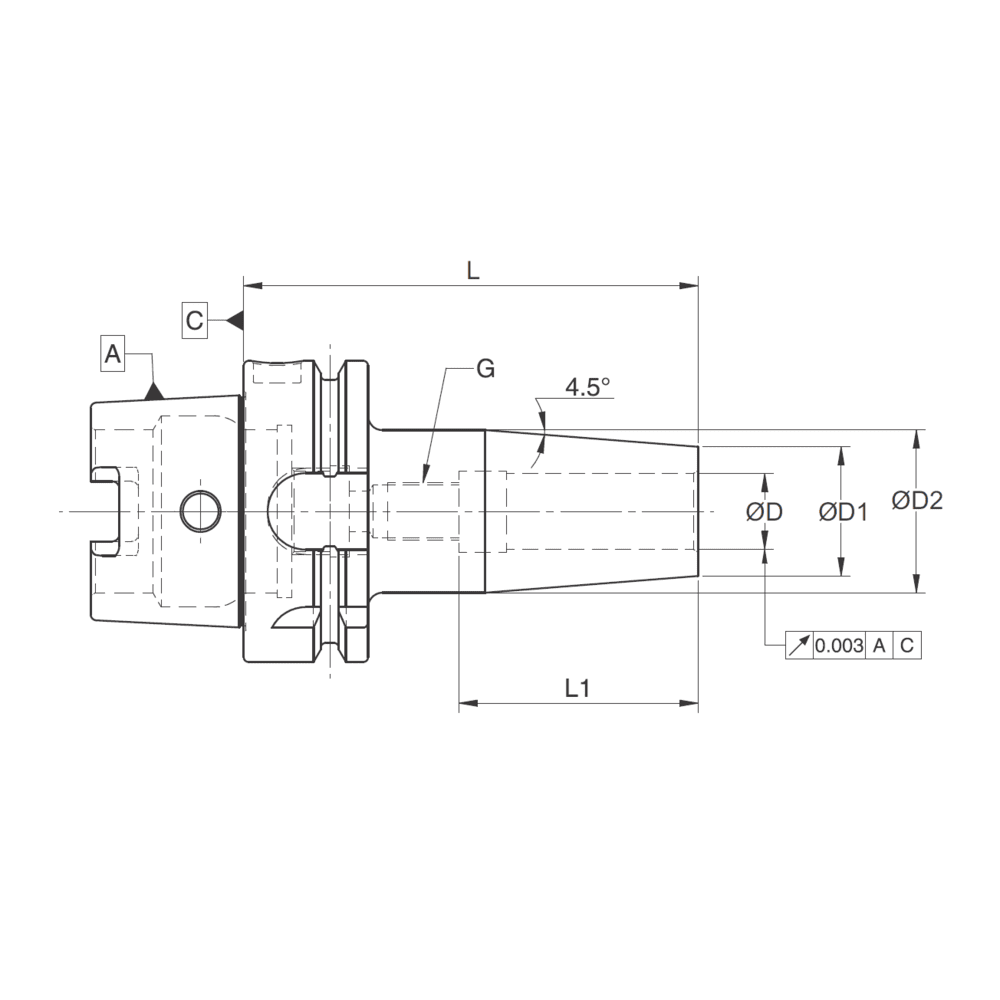

Cat. no.	Description	--	ØD	L	ØD1	ØD2	L1	G	Coolant Style	Quantity
9474A0724	HSK-63A-SF 0.125-4.72	HSK63A Inch	0.125	4.72	0.39	0.71	0.35	-	AD Thru	HSK63A AccuGrip™ Shrink Fit Holders – Long DIN Length quantity
9474A0924	HSK-63A-SF 0.187-4.72	HSK63A Inch	0.187	4.72	0.39	0.71	0.47	-	AD Thru	HSK63A AccuGrip™ Shrink Fit Holders – Long DIN Length quantity
9474A1124	HSK-63A-SF 0.250-4.72	HSK63A Inch	0.250	4.72	0.83	1.06	1.42	M5	AD Thru	HSK63A AccuGrip™ Shrink Fit Holders – Long DIN Length quantity
9474A2624	HSK-63A-SF 0.375-4.72	HSK63A Inch	0.375	4.72	0.95	1.26	1.65	M8x1	AD Thru	HSK63A AccuGrip™ Shrink Fit Holders – Long DIN Length quantity
9474A1524	HSK-63A-SF 0.500-4.72	HSK63A Inch	0.500	4.72	1.06	1.34	1.85	M10x1	AD Thru	HSK63A AccuGrip™ Shrink Fit Holders – Long DIN Length quantity
9474A1724	HSK-63A-SF 0.625-4.72	HSK63A Inch	0.625	4.72	1.06	1.34	1.97	M12x1	AD Thru	HSK63A AccuGrip™ Shrink Fit Holders – Long DIN Length quantity
9474A2824	HSK-63A-SF 0.750-4.72	HSK63A Inch	0.750	4.72	1.30	1.65	2.05	M16x1	AD Thru	HSK63A AccuGrip™ Shrink Fit Holders – Long DIN Length quantity
9474A2124	HSK-63A-SF 1.000-4.72	HSK63A Inch	1.000	4.72	1.73	2.09	2.28	M16x1	AD Thru	HSK63A AccuGrip™ Shrink Fit Holders – Long DIN Length quantity
9474A2224	HSK-63A-SF 1.250-4.72	HSK63A Inch	1.250	4.72	1.73	2.09	2.28	M16x1	AD Thru	HSK63A AccuGrip™ Shrink Fit Holders – Long DIN Length quantity
9474A0324	HSK-63A-SF 3-120	HSK63A Metric	3	120	10	18	9	-	AD Thru	HSK63A AccuGrip™ Shrink Fit Holders – Long DIN Length quantity
9474A0424	HSK-63A-SF 4-120	HSK63A Metric	4	120	10	18	12	-	AD Thru	HSK63A AccuGrip™ Shrink Fit Holders – Long DIN Length quantity
9474A0524	HSK-63A-SF 5-120	HSK63A Metric	5	120	10	18	15	-	AD Thru	HSK63A AccuGrip™ Shrink Fit Holders – Long DIN Length quantity
9474A0624	HSK-63A-SF 6-120	HSK63A Metric	6	120	21	27	36	M5	AD Thru	HSK63A AccuGrip™ Shrink Fit Holders – Long DIN Length quantity
9474A0824	HSK-63A-SF 8-120	HSK63A Metric	8	120	21	27	36	M6	AD Thru	HSK63A AccuGrip™ Shrink Fit Holders – Long DIN Length quantity
9474A1024	HSK-63A-SF 10-120	HSK63A Metric	10	120	24	32	42	M8x1	AD Thru	HSK63A AccuGrip™ Shrink Fit Holders – Long DIN Length quantity
9474A1224	HSK-63A-SF 12-120	HSK63A Metric	12	120	24	32	47	M10x1	AD Thru	HSK63A AccuGrip™ Shrink Fit Holders – Long DIN Length quantity
9474A1624	HSK-63A-SF 16-120	HSK63A Metric	16	120	27	34	50	M12x1	AD Thru	HSK63A AccuGrip™ Shrink Fit Holders – Long DIN Length quantity
9474A1424	HSK-63A-SF 14-120	HSK63A Metric	14	120	27	34	47	M10x1	AD Thru	HSK63A AccuGrip™ Shrink Fit Holders – Long DIN Length quantity
9474A1824	HSK-63A-SF 18-120	HSK63A Metric	18	120	33	42	50	M12x1	AD Thru	HSK63A AccuGrip™ Shrink Fit Holders – Long DIN Length quantity
9474A2024	HSK-63A-SF 20-120	HSK63A Metric	20	120	33	42	52	M16x1	AD Thru	HSK63A AccuGrip™ Shrink Fit Holders – Long DIN Length quantity
9474A2524	HSK-63A-SF 25-120	HSK63A Metric	25	120	44	53	58	M16x1	AD Thru	HSK63A AccuGrip™ Shrink Fit Holders – Long DIN Length quantity
9474A3224	HSK-63A-SF 32-120	HSK63A Metric	32	120	44	53	62	M16x1	AD Thru	HSK63A AccuGrip™ Shrink Fit Holders – Long DIN Length quantity

Description

NOTE: AccuGrip™ is available with AccuKool™ ports. To request make the following changes to part no. and descriptions: Example: 9474A1724 becomes 9474A1724-3CP.
The description goes from HSK-63A-SF .625-4.72 to HSK-63A-SF-IK3 .625-4.72.
