HSK63A AccuGrip™ Shrink Fit Holders – X-Long DIN Length

FEATURES:

Balanced to G2.5 @25,000 RPM
T.I.R. < 0.00012” / 0.003µ

Cat. no.: N/A Category: HSK Shrink Fit Holders

Available Options

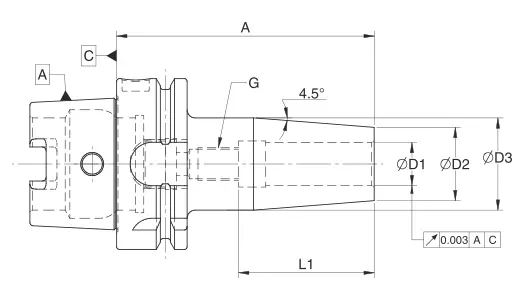

Cat. no.	Description	--	ØD	L	ØD1	ØD2	L1	G	Coolant Style	Quantity
9474A0732	HSK-63A-SF 0.125-6.30	HSK63A Inch	0.125	6.30	0.39	0.71	0.35	-	AD Thru	HSK63A AccuGrip™ Shrink Fit Holders – X-Long DIN Length quantity
9474A0932	HSK-63A-SF 0.187-6.30	HSK63A Inch	0.187	6.30	0.39	0.71	0.47	-	AD Thru	HSK63A AccuGrip™ Shrink Fit Holders – X-Long DIN Length quantity
9474A1132	HSK-63A-SF 0.250-6.30	HSK63A Inch	0.250	6.30	0.83	1.06	1.42	M5	AD Thru	HSK63A AccuGrip™ Shrink Fit Holders – X-Long DIN Length quantity
9474A2632	HSK-63A-SF 0.375-6.30	HSK63A Inch	0.375	6.30	0.95	1.26	1.65	M8x1	AD Thru	HSK63A AccuGrip™ Shrink Fit Holders – X-Long DIN Length quantity
9474A1532	HSK-63A-SF 0.500-6.30	HSK63A Inch	0.500	6.30	1.06	1.34	1.85	M10x1	AD Thru	HSK63A AccuGrip™ Shrink Fit Holders – X-Long DIN Length quantity
9474A1732	HSK-63A-SF 0.625-6.30	HSK63A Inch	0.625	6.30	1.06	1.34	1.97	M12x1	AD Thru	HSK63A AccuGrip™ Shrink Fit Holders – X-Long DIN Length quantity
9474A2832	HSK-63A-SF 0.750-6.30	HSK63A Inch	0.750	6.30	1.30	1.65	2.05	M16x1	AD Thru	HSK63A AccuGrip™ Shrink Fit Holders – X-Long DIN Length quantity
9474A2132	HSK-63A-SF 1.000-6.30	HSK63A Inch	1.000	6.30	1.73	2.09	2.44	M16x1	AD Thru	HSK63A AccuGrip™ Shrink Fit Holders – X-Long DIN Length quantity
9474A2232	HSK-63A-SF 1.250-6.30	HSK63A Inch	1.250	6.30	1.73	2.09	2.28	M16x1	AD Thru	HSK63A AccuGrip™ Shrink Fit Holders – X-Long DIN Length quantity
9474A0332	HSK-63A-SF 3-160	HSK63A Metric	3	160	10	18	9	-	AD Thru	HSK63A AccuGrip™ Shrink Fit Holders – X-Long DIN Length quantity
9474A0432	HSK-63A-SF 4-160	HSK63A Metric	4	160	10	18	12	-	AD Thru	HSK63A AccuGrip™ Shrink Fit Holders – X-Long DIN Length quantity
9474A0532	HSK-63A-SF 5-160	HSK63A Metric	5	160	10	18	15	-	AD Thru	HSK63A AccuGrip™ Shrink Fit Holders – X-Long DIN Length quantity
9474A0632	HSK-63A-SF 6-160	HSK63A Metric	6	160	21	27	36	M5	AD Thru	HSK63A AccuGrip™ Shrink Fit Holders – X-Long DIN Length quantity
9474A0832	HSK-63A-SF 8-160	HSK63A Metric	8	160	21	27	36	M6	AD Thru	HSK63A AccuGrip™ Shrink Fit Holders – X-Long DIN Length quantity
9474A1032	HSK-63A-SF 10-160	HSK63A Metric	10	160	24	32	42	M8x1	AD Thru	HSK63A AccuGrip™ Shrink Fit Holders – X-Long DIN Length quantity
9474A1232	HSK-63A-SF 12-160	HSK63A Metric	12	160	24	32	47	M10x1	AD Thru	HSK63A AccuGrip™ Shrink Fit Holders – X-Long DIN Length quantity
9474A1432	HSK-63A-SF 14-160	HSK63A Metric	14	160	27	34	47	M10x1	AD Thru	HSK63A AccuGrip™ Shrink Fit Holders – X-Long DIN Length quantity
9474A1632	HSK-63A-SF 16-160	HSK63A Metric	16	160	27	34	50	M12x1	AD Thru	HSK63A AccuGrip™ Shrink Fit Holders – X-Long DIN Length quantity
9474A1832	HSK-63A-SF 18-160	HSK63A Metric	18	160	33	42	50	M12x1	AD Thru	HSK63A AccuGrip™ Shrink Fit Holders – X-Long DIN Length quantity
9474A2032	HSK-63A-SF 20-160	HSK63A Metric	20	160	33	42	52	M16x1	AD Thru	HSK63A AccuGrip™ Shrink Fit Holders – X-Long DIN Length quantity
9474A2532	HSK-63A-SF 25-160	HSK63A Metric	25	160	44	53	58	M16x1	AD Thru	HSK63A AccuGrip™ Shrink Fit Holders – X-Long DIN Length quantity
9474A3232	HSK-63A-SF 32-160	HSK63A Metric	32	160	44	53	62	M16x1	AD Thru	HSK63A AccuGrip™ Shrink Fit Holders – X-Long DIN Length quantity

Description

NOTE: AccuGrip™ is available with AccuKool™ ports.
To request make the following changes to part no. and descriptions: Example: 9474A1732 becomes 9474A1732-3CP.
The description goes from HSK-63A-SF .625-3.74 to HSK-63A-SF-IK3 .625-3.74.
