HSK Shrink Fit Holders
HSK63A AccuGrip™ Shrink Fit Slim Line Holders
FEATURES:
- Balanced to G2.5 @25,000 RPM
- T.I.R. < 0.00012” / 0.003µ
Available Options

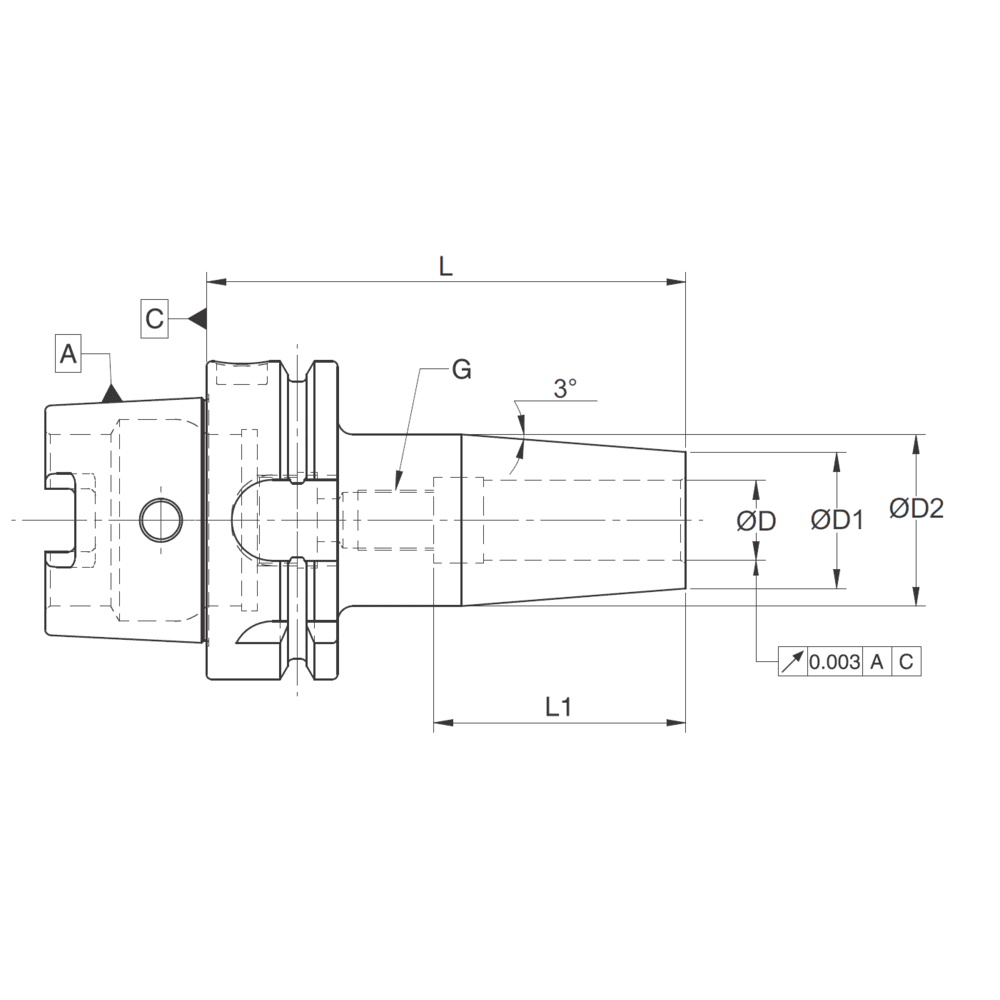

| Cat. no. | Description | -- | ØD | ØD1 | ØD2 | L | L1 | g | Coolant Style | Stock | Price | Quantity | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 94740714SL | HSK63A-SFSL 0.125-70 | HSK63A Inch | 0.125 | 0.390 | 0.550 | 2.760 | 0.790 | M6 | AD Thru | ||||
| 94740918SL | HSK63A-SFSL 0.187-90 | HSK63A Inch | 0.187 | 0.470 | 0.710 | 3.540 | 0.960 | M6 | AD Thru | ||||
| 94741118SL | HSK63A-SFSL 0.250-90 | HSK63A Inch | 0.250 | 0.470 | 0.710 | 3.540 | 1.420 | M5 | AD Thru | ||||
| 94742618SL | HSK63A-SFSL 0.375-90 | HSK63A Inch | 0.375 | 0.630 | 0.870 | 3.540 | 1.650 | M8x1 | AD Thru | ||||
| 94741518SL | KSK63A-SFSL 0.500-90 | HSK63A Inch | 0.500 | 0.790 | 1.020 | 3.540 | 1.850 | M10x1 | AD Thru | ||||
| 94740314SL | HSK63A-SFSL 3-70 | HSKA63A Metric | 3 | 11 | 13 | 70 | 20 | M6 | AD Thru | ||||
| 94740414SL | HSK63A-SFSL 4-70 | HSKA63A Metric | 4 | 11 | 14 | 70 | 20 | M6 | AD Thru | ||||
| 94740618SL | HSK63A-SFSL 6-90 | HSKA63A Metric | 6 | 12 | 18 | 90 | 36 | M5 | AD Thru | ||||
| 94740818SL | HSK63A-SFSL 8-90 | HSKA63A Metric | 8 | 14 | 20 | 90 | 36 | M6 | AD Thru | ||||
| 94741018SL | HSK63A-SFSL 10-90 | HSKA63A Metric | 10 | 16 | 22 | 90 | 42 | M8x1 | AD Thru | ||||
| 94741218SL | HSK63A-SFSL 12-90 | HSKA63A Metric | 12 | 18 | 24 | 90 | 47 | M10x1 | AD Thru |
