HSK100A AccuGrip™ Shrink Fit Holders – Standard DIN Length

FEATURES:

Balanced to G2.5 @25,000 RPM
T.I.R. < 0.00012” / 0.003µ

Cat. no.: N/A Category: HSK Shrink Fit Holders

Available Options

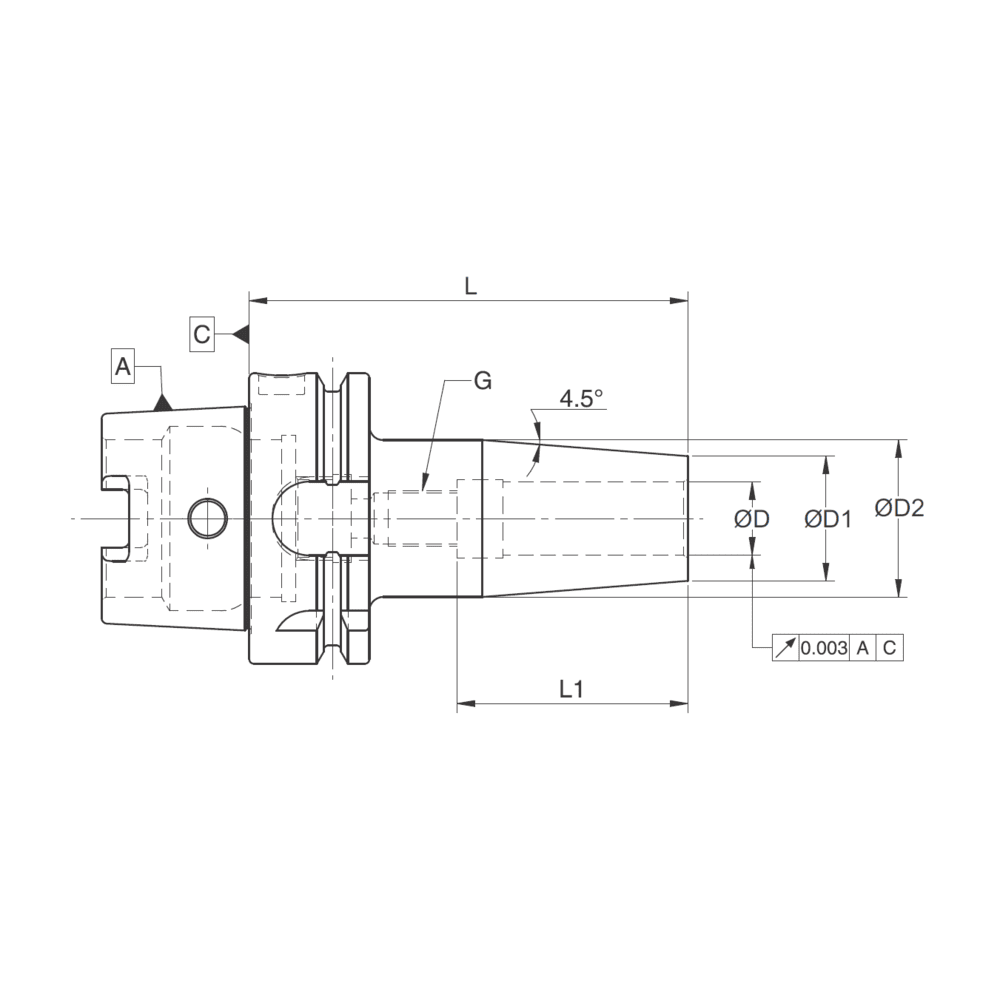

Cat. no.	Description	--	ØD	L	ØD1	ØD2	L1	G	Coolant Style	Quantity
9476A1117	HSK100A-SF 0.250-3.35	HSK100A Inch	0.250	3.35	0.83	1.06	1.42	M5	AD Thru	HSK100A AccuGrip™ Shrink Fit Holders – Standard DIN Length quantity
9476A2618	HSK100A-SF 0.375-3.54	HSK100A Inch	0.375	3.54	0.94	1.26	1.65	M8x1	AD Thru	HSK100A AccuGrip™ Shrink Fit Holders – Standard DIN Length quantity
9476A1519	HSK100A-SF 0.500-3.74	HSK100A Inch	0.500	3.54	1.06	1.34	1.85	M10x1	AD Thru	HSK100A AccuGrip™ Shrink Fit Holders – Standard DIN Length quantity
9476A1720	HSK100A-SF 0.625-3.94	HSK100A Inch	0.625	3.94	1.06	1.34	1.97	M12x1	AD Thru	HSK100A AccuGrip™ Shrink Fit Holders – Standard DIN Length quantity
9476A2821	HSK100A-SF 0.750-4.13	HSK100A Inch	0.750	4.13	1.30	1.65	2.05	M16x1	AD Thru	HSK100A AccuGrip™ Shrink Fit Holders – Standard DIN Length quantity
9476A2124	HSK100A-SF 1.000-4.72	HSK100A Inch	1.000	4.72	1.73	2.09	2.28	M16x1	AD Thru	HSK100A AccuGrip™ Shrink Fit Holders – Standard DIN Length quantity
9476A2224	HSK100A-SF 1.250-4.72	HSK100A Inch	1.250	4.72	1.73	2.09	2.44	M16x1	AD Thru	HSK100A AccuGrip™ Shrink Fit Holders – Standard DIN Length quantity
9476A0617	HSK100A-SF 6-85	HSK100A Metric	6	85	21	27	36	M5	AD Thru	HSK100A AccuGrip™ Shrink Fit Holders – Standard DIN Length quantity
9476A0817	HSK100A-SF 8-85	HSK100A Metric	8	85	21	27	36	M6	AD Thru	HSK100A AccuGrip™ Shrink Fit Holders – Standard DIN Length quantity
9476A1018	HSK100A-SF 10-90	HSK100A Metric	10	90	24	32	42	M8x1	AD Thru	HSK100A AccuGrip™ Shrink Fit Holders – Standard DIN Length quantity
9476A1219	HSK100A-SF 12-95	HSK100A Metric	12	95	24	32	47	M10x1	AD Thru	HSK100A AccuGrip™ Shrink Fit Holders – Standard DIN Length quantity
9476A1419	HSK100A-SF 14-95	HSK100A Metric	14	95	27	34	47	M10x1	AD Thru	HSK100A AccuGrip™ Shrink Fit Holders – Standard DIN Length quantity
9476A1620	HSK100A-SF 16-100	HSK100A Metric	16	100	27	34	50	M12x1	AD Thru	HSK100A AccuGrip™ Shrink Fit Holders – Standard DIN Length quantity
9476A1820	HSK100A-SF 18-100	HSK100A Metric	18	100	33	42	50	M12x1	AD Thru	HSK100A AccuGrip™ Shrink Fit Holders – Standard DIN Length quantity
9476A2021	HSK100A-SF 20-105	HSK100A Metric	20	105	33	42	52	M16x1	AD Thru	HSK100A AccuGrip™ Shrink Fit Holders – Standard DIN Length quantity
9476A2523	HSK100A-SF 25-115	HSK100A Metric	25	115	44	53	58	M16x1	AD Thru	HSK100A AccuGrip™ Shrink Fit Holders – Standard DIN Length quantity
9476A3224	HSK100A-SF 32-120	HSK100A Metric	32	120	44	53	62	M16x1	AD Thru	HSK100A AccuGrip™ Shrink Fit Holders – Standard DIN Length quantity

Description

NOTE: AccuGrip™ is available with AccuKool™ ports. To request make the following changes to part no. and descriptions: Example: 9476A1720 becomes 9476A1720-3CP.
The description goes from HSK-100A-SF 0.625-3.94 to HSK-100A-SF-IK3 .625-3.94.
