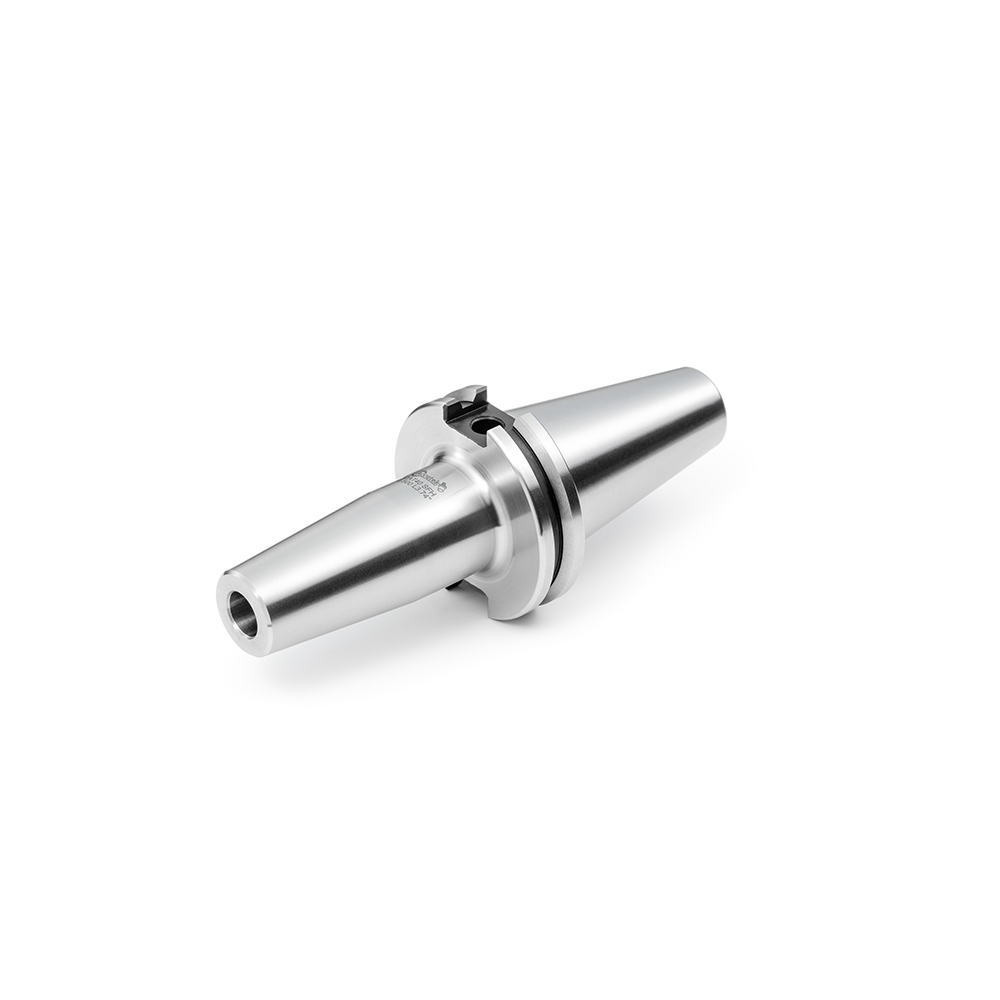

CAT40 AccuGrip™ Shrink Fit Holders – X-Long DIN Length

FEATURES:

Balanced to G2.5 @25,000 RPM
Taper shank ground to AT3 accuracy (or better)
T.I.R. < 0.00012” / 0.003µ”

Cat. no.: N/A Category: CAT 40 Shrink Fit Holders

Available Options

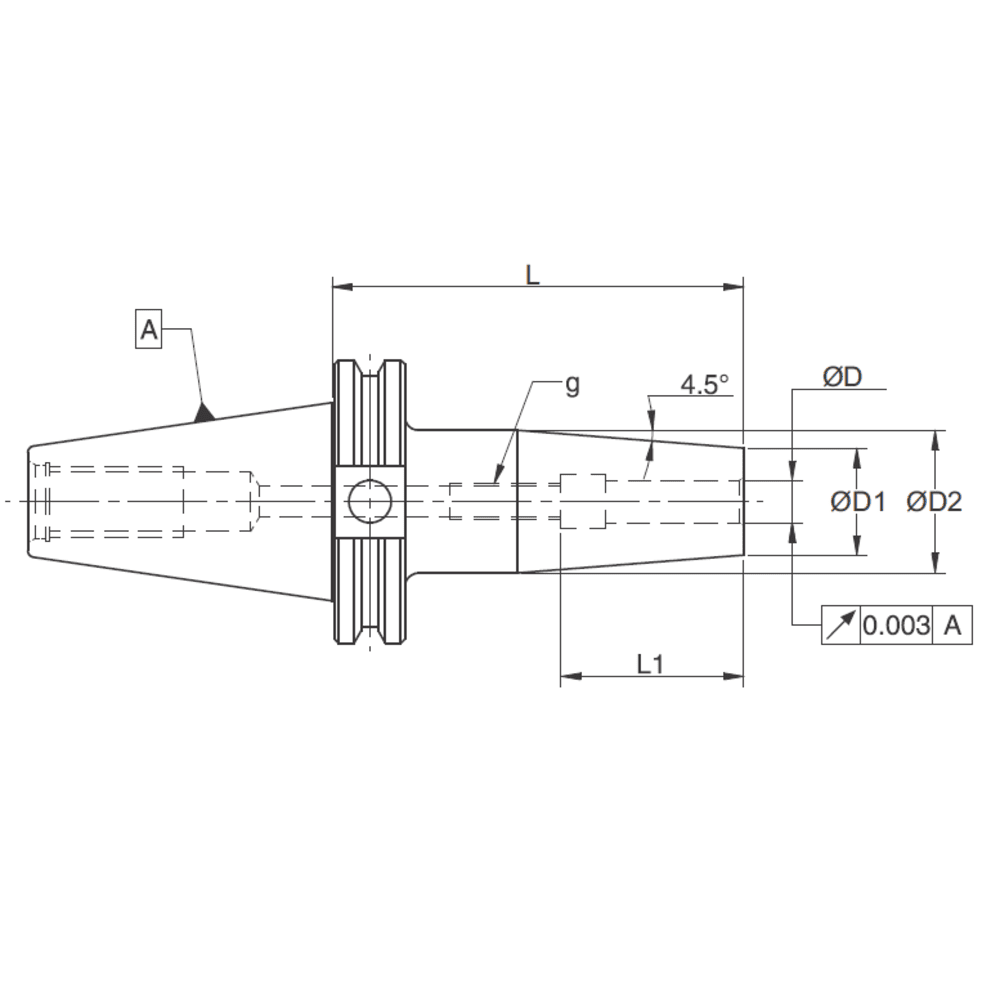

Cat. no.	Description	--	ØD	L	ØD1	ØD2	L1	G	Coolant Style	Quantity
94240732	CAT40-SF 0.125-6.30	CAT40 Inch	0.125	6.30	0.39	0.71	0.35	-	AD Thru	CAT40 AccuGrip™ Shrink Fit Holders – X-Long DIN Length quantity
94240932	CAT40-SF 0.187-6.30	CAT40 Inch	0.187	6.30	0.39	0.71	0.47	-	AD Thru	CAT40 AccuGrip™ Shrink Fit Holders – X-Long DIN Length quantity
94241132	CAT40-SF 0.250-6.30	CAT40 Inch	0.250	6.30	0.83	1.06	1.42	M5	AD Thru	CAT40 AccuGrip™ Shrink Fit Holders – X-Long DIN Length quantity
94241332	CAT40-SF 0.312-6.30	CAT40 Inch	0.312	6.30	0.83	1.06	1.42	M5	AD Thru	CAT40 AccuGrip™ Shrink Fit Holders – X-Long DIN Length quantity
94242632	CAT40-SF 0.375-6.30	CAT40 Inch	0.375	6.30	0.95	1.26	1.65	M8X1	AD Thru	CAT40 AccuGrip™ Shrink Fit Holders – X-Long DIN Length quantity
94241532	CAT40-SF 0.500-6.30	CAT40 Inch	0.500	6.30	1.06	1.34	1.85	M10X1	AD Thru	CAT40 AccuGrip™ Shrink Fit Holders – X-Long DIN Length quantity
94241732	CAT40-SF 0.625-6.30	CAT40 Inch	0.625	6.30	1.06	1.34	1.97	M12X1	AD Thru	CAT40 AccuGrip™ Shrink Fit Holders – X-Long DIN Length quantity
94242832	CAT40-SF 0.750-6.30	CAT40 Inch	0.750	6.30	1.30	1.65	2.05	M16X1	AD Thru	CAT40 AccuGrip™ Shrink Fit Holders – X-Long DIN Length quantity
94242132	CAT40-SF 1.000-6.30	CAT40 Inch	1.000	6.30	1.73	2.09	2.44	M16X1	AD Thru	CAT40 AccuGrip™ Shrink Fit Holders – X-Long DIN Length quantity
94242232	CAT40-SF 1.250-6.30	CAT40 Inch	1.250	6.30	1.73	2.09	2.44	M16X1	AD Thru	CAT40 AccuGrip™ Shrink Fit Holders – X-Long DIN Length quantity
94240332	CAT40-SF 3-160	CAT40 Metric	3	160	10	18	9	-	AD Thru	CAT40 AccuGrip™ Shrink Fit Holders – X-Long DIN Length quantity
94240432	CAT40-SF 4-160	CAT40 Metric	4	160	10	18	12	-	AD Thru	CAT40 AccuGrip™ Shrink Fit Holders – X-Long DIN Length quantity
94240532	CAT40-SF 5-160	CAT40 Metric	5	160	10	18	15	-	AD Thru	CAT40 AccuGrip™ Shrink Fit Holders – X-Long DIN Length quantity
94240632	CAT40-SF 6-160	CAT40 Metric	6	160	21	27	36	M5	AD Thru	CAT40 AccuGrip™ Shrink Fit Holders – X-Long DIN Length quantity
94240832	CAT40-SF 8-160	CAT40 Metric	8	160	21	27	36	M6	AD Thru	CAT40 AccuGrip™ Shrink Fit Holders – X-Long DIN Length quantity
94241032	CAT40-SF 10-160	CAT40 Metric	10	160	24	32	42	M8X1	AD Thru	CAT40 AccuGrip™ Shrink Fit Holders – X-Long DIN Length quantity
94241232	CAT40-SF 12-160	CAT40 Metric	12	160	24	32	47	M10X1	AD Thru	CAT40 AccuGrip™ Shrink Fit Holders – X-Long DIN Length quantity
94241432	CAT40-SF 14-160	CAT40 Metric	14	160	27	34	47	M10X1	AD Thru	CAT40 AccuGrip™ Shrink Fit Holders – X-Long DIN Length quantity
94241632	CAT40-SF 16-160	CAT40 Metric	16	160	27	34	50	M12X1	AD Thru	CAT40 AccuGrip™ Shrink Fit Holders – X-Long DIN Length quantity
94241832	CAT40-SF 18-160	CAT40 Metric	18	160	33	42	50	M12X1	AD Thru	CAT40 AccuGrip™ Shrink Fit Holders – X-Long DIN Length quantity
94242032	CAT40-SF 20-160	CAT40 Metric	20	160	33	42	52	M16X1	AD Thru	CAT40 AccuGrip™ Shrink Fit Holders – X-Long DIN Length quantity
94242532	CAT40-SF 25-160	CAT40 Metric	25	160	44	53	58	M16X1	AD Thru	CAT40 AccuGrip™ Shrink Fit Holders – X-Long DIN Length quantity
94243232	CAT40-SF 32-160	CAT40 Metric	32	160	44	53	62	M16X1	AD Thru	CAT40 AccuGrip™ Shrink Fit Holders – X-Long DIN Length quantity

Description

NOTE: AccuGrip™ is available with AccuKool™ ports.
To request make the following changes to part no. and descriptions: Example: 94241732 becomes 94241732-3CP.
The description goes from CAT40-SF .625-6.30 to CAT40-SF-IK3 .625-6.30.

CAT40 AccuGrip™ Shrink Fit Holders – X-Long DIN Length

Available Options
