CAT40 AccuGrip™ Shrink Fit Holders – Long DIN Length

FEATURES:

Balanced to G2.5 @25,000 RPM
Taper shank ground to AT3 accuracy (or better)
T.I.R. < 0.00012” / 0.003µ”

Cat. no.: N/A Category: CAT 40 Shrink Fit Holders

Available Options

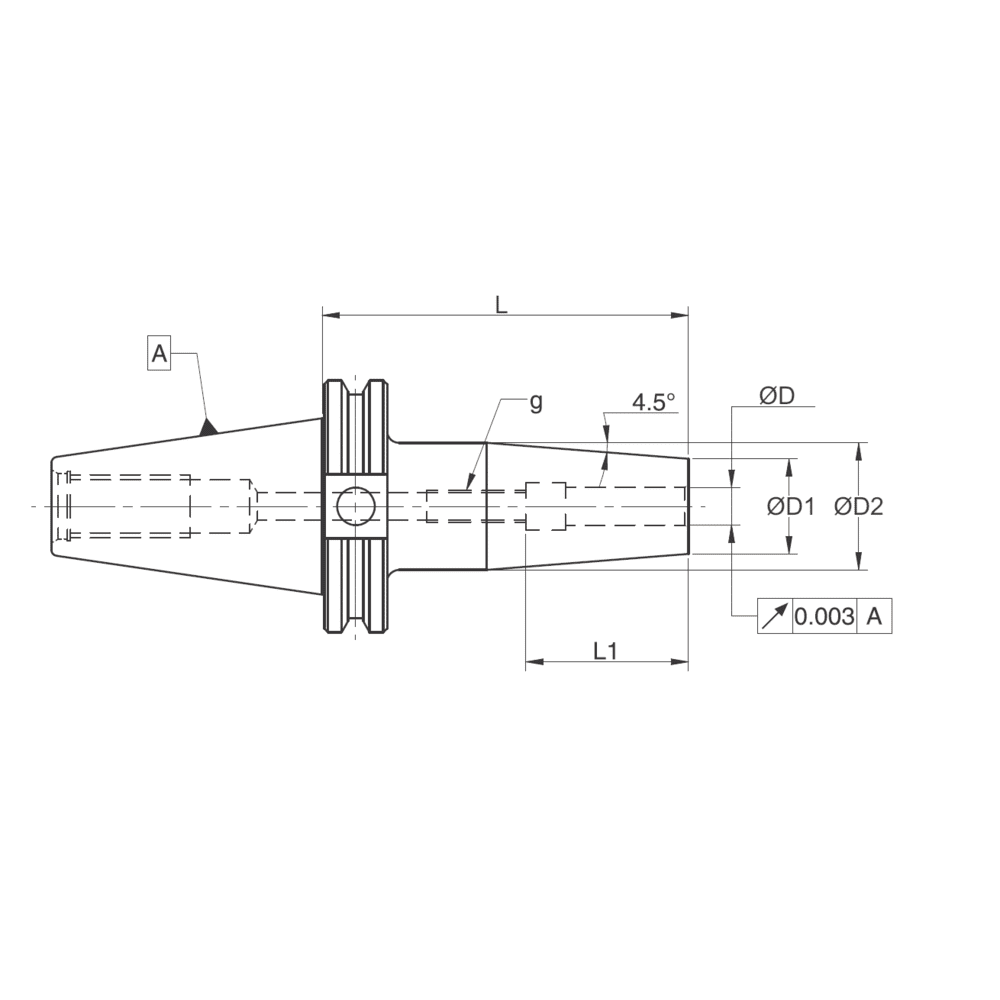

Cat. no.	Description	--	ØD	L	ØD1	ØD2	L1	G	Coolant Style	Quantity
94240724	CAT40-SF 0.125-4.72	CAT40 Inch	0.125	4.72	0.39	0.71	0.35	-	AD Thru	CAT40 AccuGrip™ Shrink Fit Holders – Long DIN Length quantity
94240924	CAT40-SF 0.187-4.72	CAT40 Inch	0.187	4.72	0.39	0.71	0.47	-	AD Thru	CAT40 AccuGrip™ Shrink Fit Holders – Long DIN Length quantity
94241124	CAT40-SF 0.250-4.72	CAT40 Inch	0.250	4.72	0.83	1.06	1.42	M5	AD Thru	CAT40 AccuGrip™ Shrink Fit Holders – Long DIN Length quantity
94241324	CAT40-SF 0.312-4.72	CAT40 Inch	0.312	4.72	0.83	1.06	1.42	M5	AD Thru	CAT40 AccuGrip™ Shrink Fit Holders – Long DIN Length quantity
94241524	CAT40-SF 0.500-4.72	CAT40 Inch	0.500	4.72	1.06	1.34	1.85	M10X1	AD Thru	CAT40 AccuGrip™ Shrink Fit Holders – Long DIN Length quantity
94241724	CAT40-SF 0.625-4.72	CAT40 Inch	0.625	4.72	1.06	1.34	1.97	M12X1	AD Thru	CAT40 AccuGrip™ Shrink Fit Holders – Long DIN Length quantity
94242824	CAT40-SF 0.750-4.72	CAT40 Inch	0.750	4.72	1.30	1.65	2.05	M16X1	AD Thru	CAT40 AccuGrip™ Shrink Fit Holders – Long DIN Length quantity
94242124	CAT40-SF 1.000-4.72	CAT40 Inch	1.000	4.72	1.73	2.09	2.44	M16X1	AD Thru	CAT40 AccuGrip™ Shrink Fit Holders – Long DIN Length quantity
94242224	CAT40-SF 1.250-4.72	CAT40 Inch	1.250	4.72	1.73	2.09	2.44	M16X1	AD Thru	CAT40 AccuGrip™ Shrink Fit Holders – Long DIN Length quantity
94240324	CAT40-SF 3-120	CAT40 Metric	3	120	10	18	9	-	AD Thru	CAT40 AccuGrip™ Shrink Fit Holders – Long DIN Length quantity
94240424	CAT40-SF 4-120	CAT40 Metric	4	120	10	18	12	-	AD Thru	CAT40 AccuGrip™ Shrink Fit Holders – Long DIN Length quantity
94240524	CAT40-SF 5-120	CAT40 Metric	5	120	10	18	15	-	AD Thru	CAT40 AccuGrip™ Shrink Fit Holders – Long DIN Length quantity
94240624	CAT40-SF 6-120	CAT40 Metric	6	120	21	27	36	M5	AD Thru	CAT40 AccuGrip™ Shrink Fit Holders – Long DIN Length quantity
94240824	CAT40-SF 8-120	CAT40 Metric	8	120	21	27	36	M6	AD Thru	CAT40 AccuGrip™ Shrink Fit Holders – Long DIN Length quantity
94241024	CAT40-SF 10-120	CAT40 Metric	10	120	24	32	42	M8X1	AD Thru	CAT40 AccuGrip™ Shrink Fit Holders – Long DIN Length quantity
94241224	CAT40-SF 12-120	CAT40 Metric	12	120	24	32	47	M10X1	AD Thru	CAT40 AccuGrip™ Shrink Fit Holders – Long DIN Length quantity
94241424	CAT40-SF 14-120	CAT40 Metric	14	120	27	34	47	M10X1	AD Thru	CAT40 AccuGrip™ Shrink Fit Holders – Long DIN Length quantity
94241624	CAT40-SF 16-120	CAT40 Metric	16	120	27	34	50	M12X1	AD Thru	CAT40 AccuGrip™ Shrink Fit Holders – Long DIN Length quantity
94241824	CAT40-SF 18-120	CAT40 Metric	18	120	33	42	50	M12X1	AD Thru	CAT40 AccuGrip™ Shrink Fit Holders – Long DIN Length quantity
94242024	CAT40-SF 20-120	CAT40 Metric	20	120	33	42	52	M16X1	AD Thru	CAT40 AccuGrip™ Shrink Fit Holders – Long DIN Length quantity
94242524	CAT40-SF 25-120	CAT40 Metric	25	120	44	53	58	M16X1	AD Thru	CAT40 AccuGrip™ Shrink Fit Holders – Long DIN Length quantity
94243224	CAT40-SF 32-120	CAT40 Metric	32	120	44	53	62	M16X1	AD Thru	CAT40 AccuGrip™ Shrink Fit Holders – Long DIN Length quantity

Description

NOTE: AccuGrip™ is available with AccuKool™ ports. To request make the following changes to part no. and descriptions:
Example: 94241724 becomes 94241724-3CP. The description goes from CAT40-SF .625-4.72 to CAT40-SF-IK3 .625-4.72
