HSK Shell Mill Holder
HSK-E 40 Shell Mill Holder
FEATURES:
- Balanced to G2.5 @ 25,000 RPM
- T.I.R. < 0.0004″
Available Options

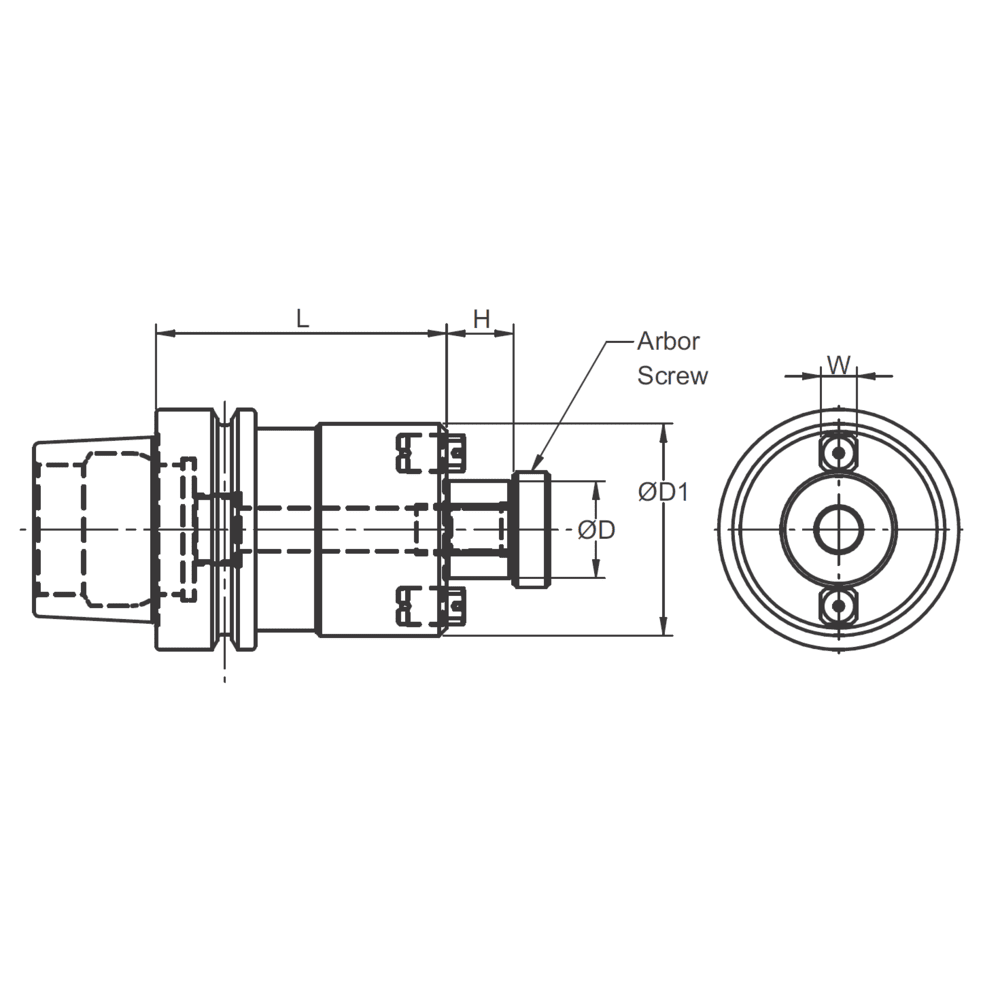

| Cat. no. | Description | ØD (inch) | L Range | ØD1 (inch) | W (inch) | Arbor Screw | Coolant Style | Stock | Price | Quantity | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 8172E5009 | HSK40E-SMH 0.500-1.77 | 0.500 | 1.77 | 1.75 | 0.250 | 1/4"-28 | AD Thru | ||||
| 8172E7510 | HSK40E-SMH 0.750-2.00 | 0.750 | 2.00 | 1.75 | 0.312 | 3/8"-24 | AD Thru | ||||
| 8172E1010 | HSK40E-SMH 1.000-2.00 | 1.00 | 2.00 | 2.19 | 0.375 | 1/2"-20 | AD Thru |
