HSK Shell Mill Holder
HSK-A Shell Mill Holder
FEATURES:
- Balanced to G2.5 @ 25,000 RPM
- TIR < 0.0003”
- Coolant through the center of the body
Available Options

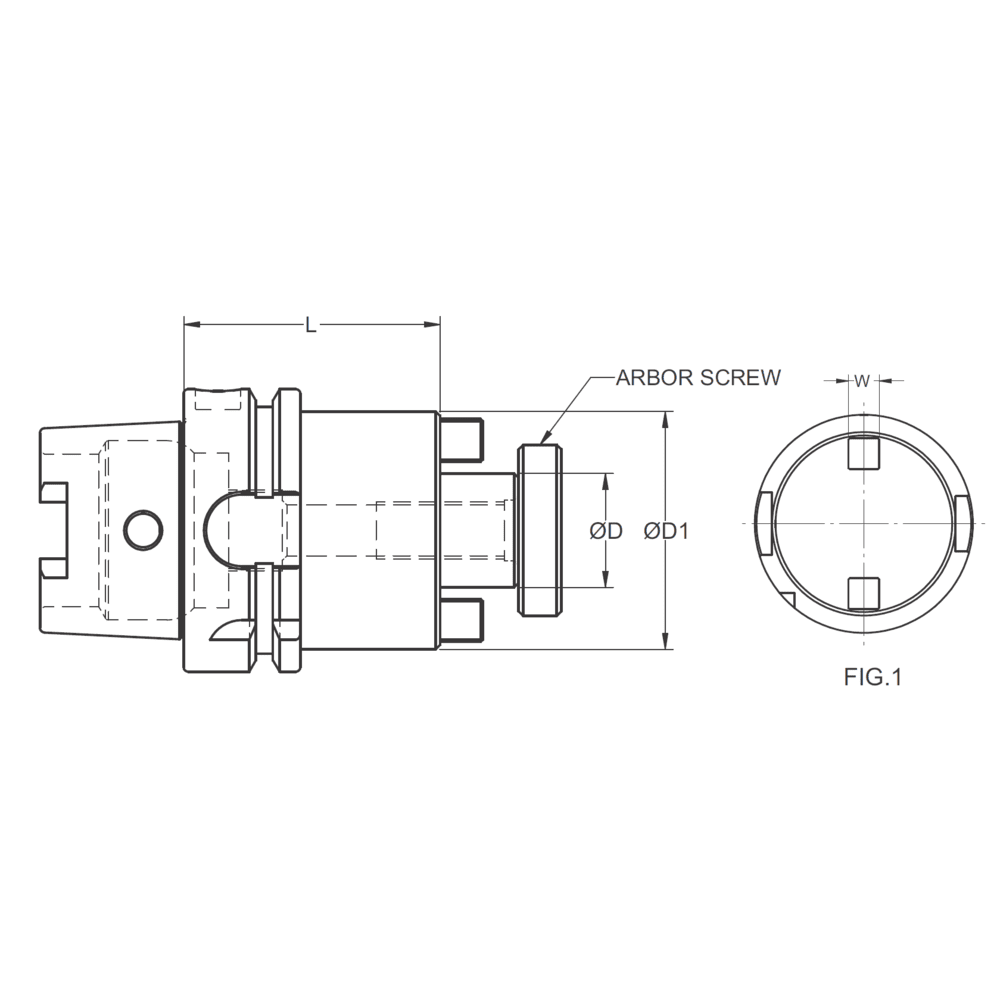

| Cat. no. | Description | Pilot Size ØD | L (inch) | ØD1 (inch) | W (inch) | Arbor Screw | Coolant Style | Stock | Price | Quantity | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 8172A5009 | HSK40A-SMH 0.500-1.77 | 0.500 | 1.77 | 1.75 | 0.250 | 1/4-28 | AD Thru | ||||
| 8172A7510 | HSK40A-SMH 0.750-2.00 | 0.750 | 2.00 | 1.75 | 0.312 | 3/8-24 | AD Thru | ||||
| 8172A1010 | HSK40A-SMH 1.000-2.00 | 1.000 | 2.00 | 2.19 | 0.375 | 1/2-20 | AD Thru | ||||
| 8173A5009 | HSK50A-SMH 0.500-1.77 | 0.500 | 1.77 | 1.75 | 0.250 | 1/4-28 | AD Thru | ||||
| 8173A7510 | HSK50A-SMH 0.750-2.00 | 0.750 | 2.00 | 1.75 | 0.312 | 3/8-24 | AD Thru | ||||
| 8173A1011 | HSK50A-SMH 1.000-2.25 | 1.000 | 2.25 | 2.19 | 0.375 | 1/2-20 | AD Thru | ||||
| 8174A5010 | HSK63A-SMH 0.500-2.00 | 0.500 | 2.00 | 1.75 | 0.250 | 1/4-28 | AD Thru | ||||
| 8174A7510 | HSK63A-SMH 0.750-2.00 | 0.750 | 2.00 | 1.75 | 0.312 | 3/8-24 | AD Thru | ||||
| 8174A1011 | HSK63A-SMH 1.000-2.25 | 1.000 | 2.25 | 2.19 | 0.375 | 1/2-20 | AD Thru | ||||
| 8174A1211 | HSK63A-SMH 1.250-2.25 | 1.250 | 2.25 | 2.75 | 0.500 | 5/8-18 | AD Thru | ||||
| 8174A1511 | HSK63A-SMH 1.500-2.25 | 1.500 | 2.25 | 3.62 | 0.625 | 3/4-16 | AD Thru | ||||
| 8176A1011 | HSK100A-SMH 1.000-2.25 | 1.000 | 2.25 | 2.75 | 0.375 | 1/2-20 | AD Thru | ||||
| 8176A1213 | HSK100A-SMH 1.250-2.50 | 1.250 | 2.50 | 2.75 | 0.500 | 5/8-18 | AD Thru | ||||
| 8176A1513 | HSK100A-SMH 1.500-2.50 | 1.500 | 2.50 | 3.94 | 0.625 | 3/4-16 | AD Thru | ||||
| 8176A2013 | HSK100A-SMH 2.000-2.50 | 2.000 | 2.50 | 4.44 | 0.750 | 1 - 14 | AD Thru | ||||
| 8176A2513 | HSK100A-SMH 2.500-2.50 | 2.500 | 2.50 | 4.88 | 1.000 | 1 - 14 | AD Thru |
