Face Contact (CATP) 40 Hydraulic Holders
AccuPlus™ CATP40 Face Contact Hydraulic Chuck
FEATURES:
- Balanced to G2.5 @ 25,000 RPM
- Taper shank ground to AT3 accuracy (or better)
- T.I.R. < 0.0002”
- Bore tolerance: H6
Available Options

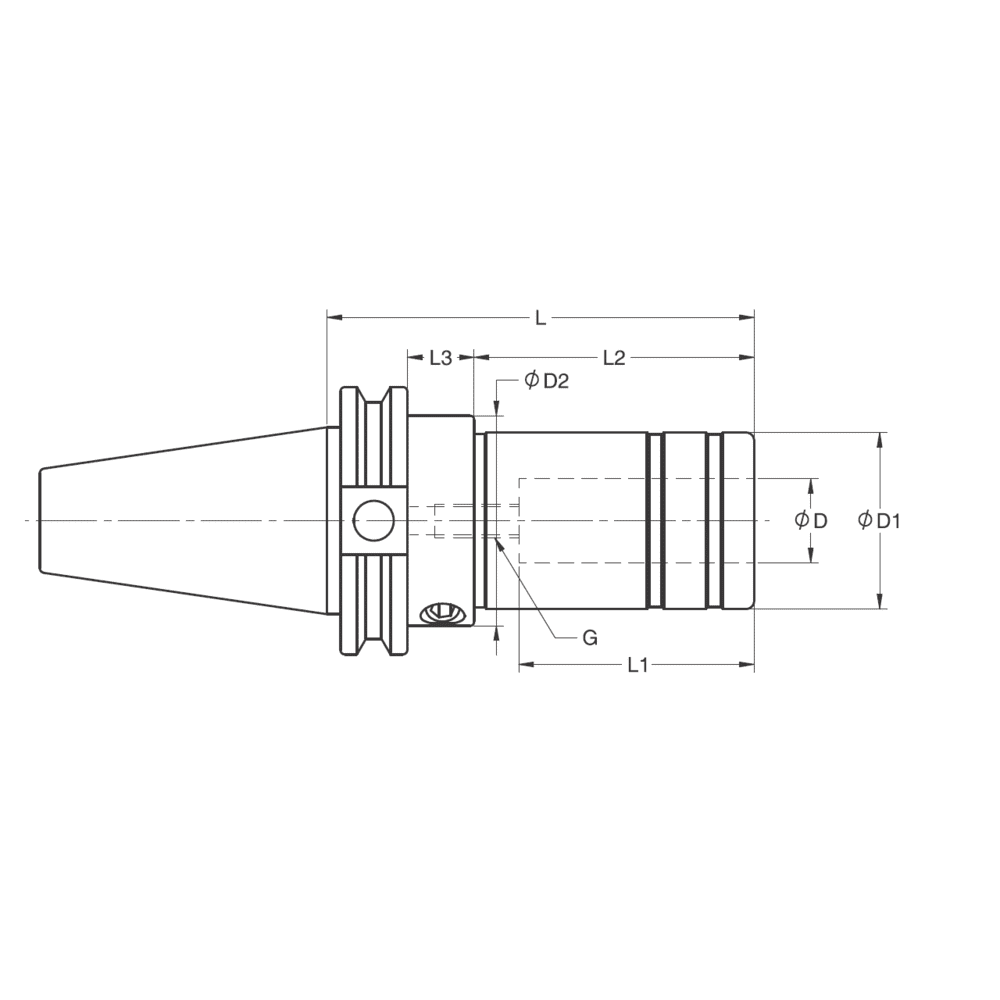

| Cat. no. | Description | ØD (inch) | ØD1 (inch) | ØD2 (inch) | L (inch) | L1 (inch) | L2 (inch) | L3 (inch) | G (inch) | Coolant Style | Stock | Price | Quantity | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 681362820 | CATP40-HCS 0.750-4.00 | 0.750 | 1.65 | 2.05 | 4.00 | 2.05 | 2.28 | 0.96 | M8x1 | AD Thru | ||||
| 681362223 | CATP40-HCS 1.250-4.52 | 1.250 | 2.36 | 2.36 | 4.52 | 2.44 | 3.78 | - | M8x1 | AD Thru |
