Face Contact (CATP) 40 Hydraulic Holders
AccuPlus™ CATP40 AccuClamp™ Heavy Duty Hydraulic Chuck (Metrics)
FEATURES:
- Balanced to G2.5 @ 25,000 RPM
- Taper shank ground to AT3 accuracy (or better)
- T.I.R. < 0.0002”
- Bore tolerance: H6
Available Options

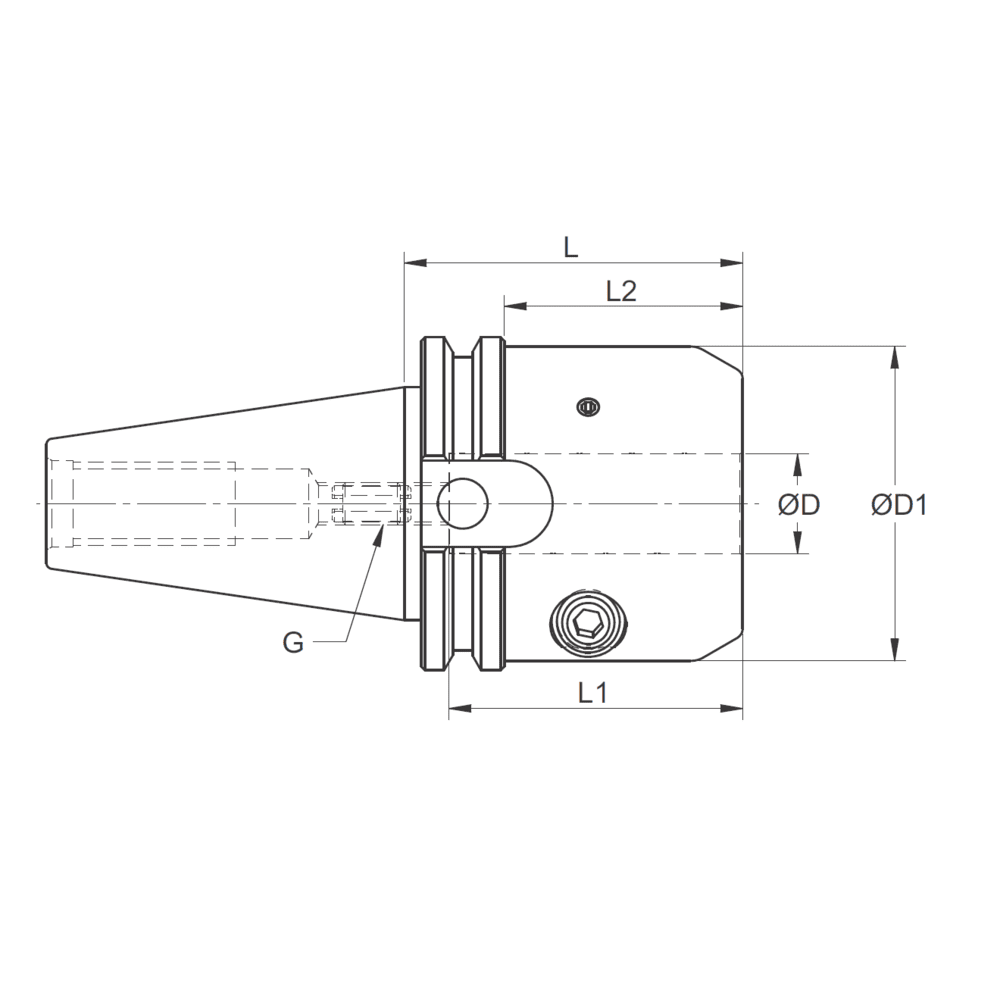

| Cat. no. | Description | ØD | ØD1 | L | L1 | L2 | G | Coolant Style | Stock | Price | Quantity | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 671362813 | CATP40-HC 0.750-2.50 | 0.75 | 2.36 | 2.5 | 2.05 | 1.75 | M8x1 | AD Thru | ||||
| 671362217 | CATP40-HC 1.250-3.25 | 1.25 | 2.84 | 3.25 | 2.44 | 2-5 | M8x1 | AD Thru |
