HSK End Mill Holders
HSK-E 40 End Mill Holder
FEATURES:
- Balanced to G2.5 @ 25,000 RPM
- Bore tolerance: H6
- T.I.R. < 0.0004″
Available Options

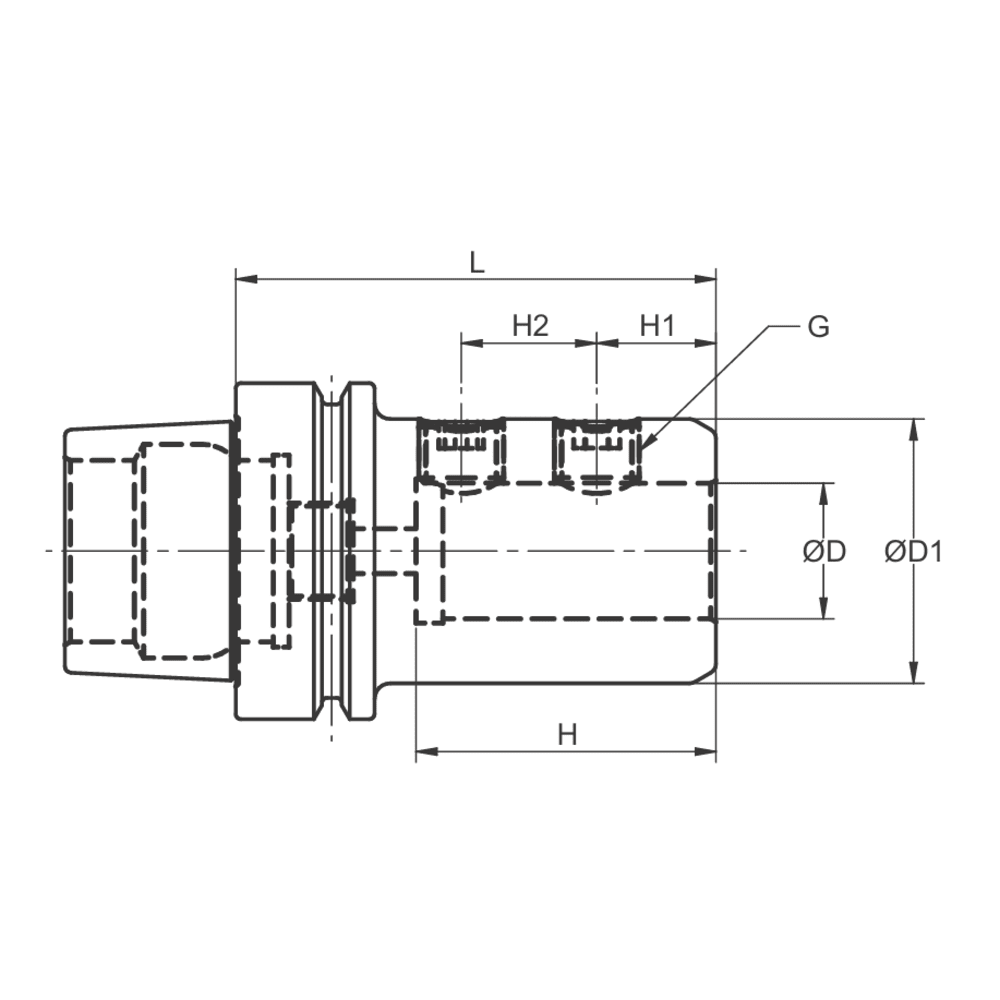

| Cat. no. | Description | ØD (inch) | L (inch) | ØD1 (inch) | H (inch) | H1 (inch) | H2 (inch) | G | Stock | Price | Quantity | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 8472E1112 | HSK40E-EMH 0.250-2.36 | 0.250 | 2.36 | 0.69 | 0.87 | 0.56 | 1/4"-28 | |||||
| 8472E1312 | HSK40E-EMH 0.312-2.36 | 0.312 | 2.36 | 1.00 | 1.06 | 0.75 | 1/4"-28 | |||||
| 8472E2613 | HSK40E-EMH 0.375-2.56 | 0.375 | 2.56 | 1.25 | 1.49 | 0.75 | 3/8"-24 | |||||
| 8472E1514 | HSK40E-EMH 0.500-2.76 | 0.500 | 2.76 | 1.25 | 1.73 | 0.75 | 7/16"-20 | |||||
| 8472E1716 | HSK40E-EMH 0.625-3.15 | 0.625 | 3.15 | 1.75 | 1.89 | 0.94 | 9/16”-18 | |||||
| 8472E2816 | HSK40E-EMH 0.750-3.15 | 0.750 | 3.15 | 1.75 | 2.01 | 1.00 | 5/8"-18 | |||||
| 8472E2121 | HSK40E-EMH 1.000-4.13 | 1.000 | 4.13 | 1.95 | 3.00 | 1.12 | 1.000 | 3/4"-16 |
