HSK End Mill Holders
HSK-A End Mill Holder – Metric ID
FEATURES:
- Balanced to G2.5 @ 25,000 RPM
- T.I.R. < 0.0004”
- Bore tolerance: H6
Available Options

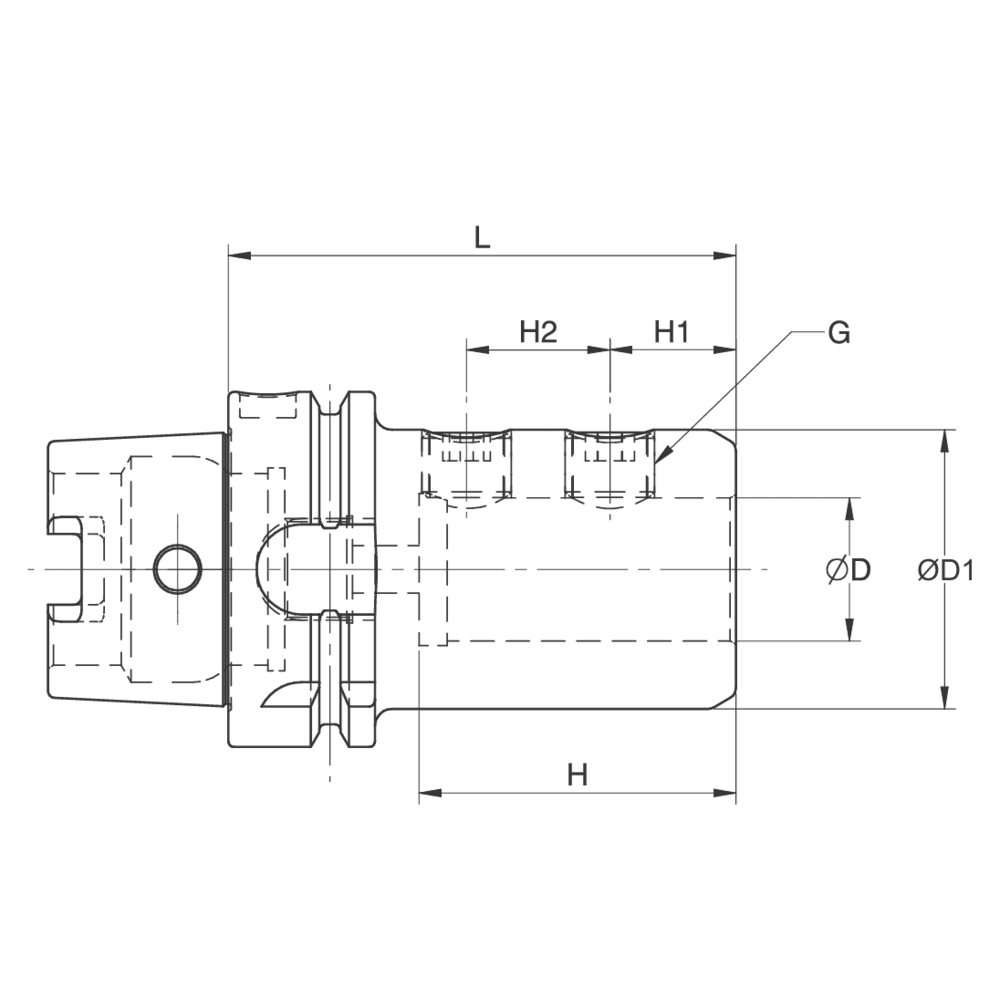

| Cat. no. | Description | ØD (mm) | L (mm) | C (mm) | H (mm) | H1 (mm) | H2 (mm) | G (mm) | Coolant Style | Stock | Price | Quantity | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 8474A0613 | HSK63A-EMH 6-65 | 6 | 65 | 25 | 36 | 18 | - | M6 | AD Thru | ||||
| 8474A0813 | HSK63A-EMH 8-65 | 8 | 65 | 28 | 36 | 18 | - | M8 | AD Thru | ||||
| 8474A1013 | HSK63A-EMH 10-65 | 10 | 65 | 35 | 40 | 20 | - | M10 | AD Thru | ||||
| 8474A1216 | HSK63A-EMH 12-80 | 12 | 80 | 42 | 45 | 22.50 | - | M12 | AD Thru | ||||
| 8474A1416 | HSK63A-EMH 14-80 | 14 | 80 | 44 | 45 | 22.50 | - | M12 | AD Thru | ||||
| 8474A1616 | HSK63A-EMH 16-80 | 16 | 80 | 48 | 48 | 24 | - | M14 | AD Thru | ||||
| 8474A1816 | HSK63A-EMH 18-80 | 18 | 80 | 50 | 48 | 24 | - | M14 | AD Thru | ||||
| 8474A2016 | HSK63A-EMH 20-80 | 20 | 80 | 52 | 50 | 25 | - | M16 | AD Thru | ||||
| 8474A2522 | HSK63A-EMH 25-110 | 25 | 110 | 65 | 56 | 24 | 25 | M18 | AD Thru | ||||
| 8474A3222 | HSK63A-EMH 32-110 | 32 | 110 | 72 | 60 | 24 | 28 | M20 | AD Thru | ||||
| 8476A0618 | HSK100A-EMH 6-90 | 6 | 90 | 25 | 36 | 18 | - | M6 | AD Thru | ||||
| 8476A0818 | HSK100A-EMH 8-90 | 8 | 90 | 28 | 36 | 18 | - | M8 | AD Thru | ||||
| 8476A1018 | HSK100A-EMH 10-90 | 10 | 90 | 35 | 40 | 20 | - | M10 | AD Thru | ||||
| 8476A1220 | HSK100A-EMH 12-100 | 12 | 100 | 42 | 45 | 22.50 | - | M12 | AD Thru | ||||
| 8476A1420 | HSK100A-EMH 14-100 | 14 | 100 | 44 | 45 | 22.50 | - | M12 | AD Thru | ||||
| 8476A1620 | HSK100A-EMH 16-100 | 16 | 100 | 48 | 48 | 24 | - | M14 | AD Thru | ||||
| 8476A1820 | HSK100A-EMH 18-100 | 18 | 100 | 50 | 48 | 24 | - | M14 | AD Thru | ||||
| 8476A2022 | HSK100A-EMH 20-110 | 20 | 110 | 52 | 50 | 25 | - | M16 | AD Thru | ||||
| 8476A2524 | HSK100A-EMH 25-120 | 25 | 120 | 65 | 56 | 24 | 25 | M18 | AD Thru | ||||
| 8476A3224 | HSK100A-EMH 32-120 | 32 | 120 | 72 | 60 | 24 | 28 | M20 | AD Thru | ||||
| 8476A4024 | HSK100A-EMH 40-120 | 40 | 120 | 80 | 36 | 30 | 32 | M20 | AD Thru |
