QA Series 2 Shank Taps
QA Series 2 Shank Taps - Image 2

QA Series 2 Shank Taps

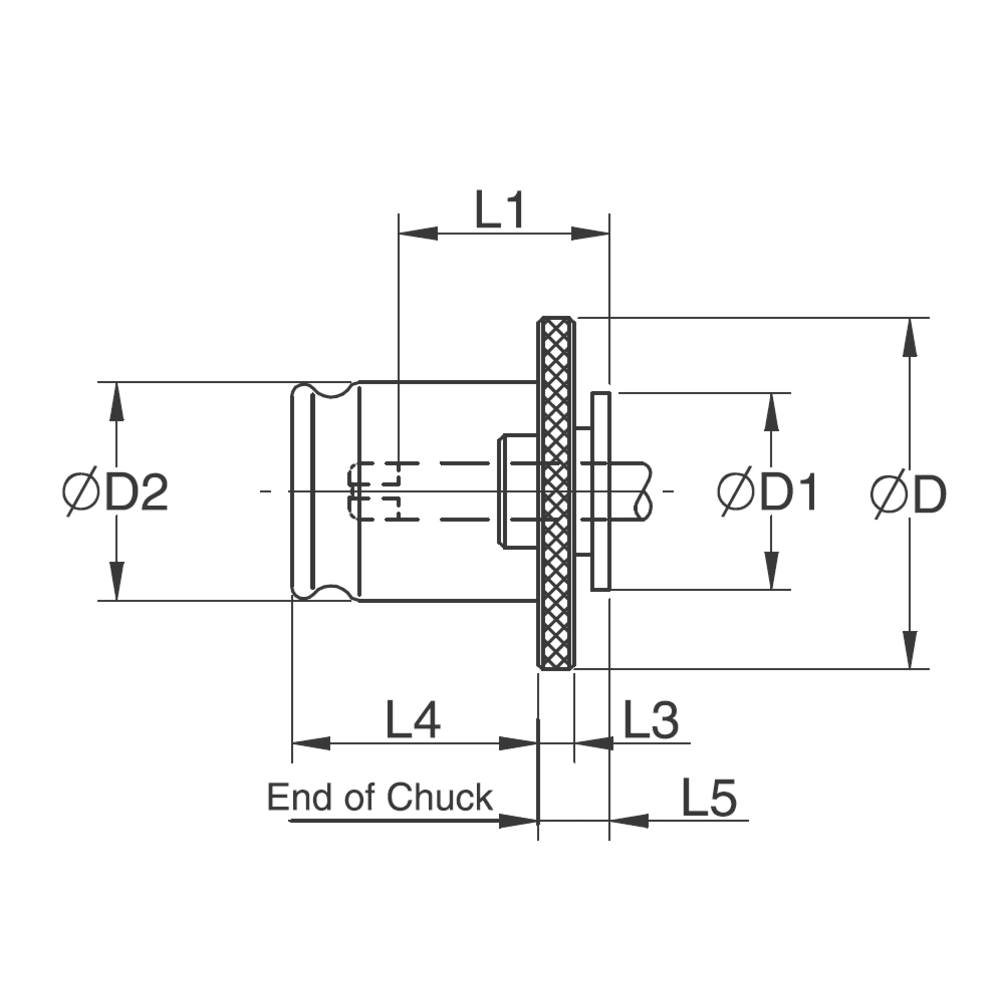

Description Tap Size Range Dimension (mm/inch)
Inch Metric ØD ØD1 ØD2 L1 L3 L4 L5
QA 2 1/4″-7/8″ M8-M20 1.889 1.181 1.181 1.181 0.196 1.378 0.433
Cat. no.: N/A Category:

Available Options

Cat. no.Tap Size Range inchTap Size Range metricShank Dia.Shank Sq.StockPriceQuantity
40200104#0 - #6M30.141"0.110"
40200148#8 - 5/32"M40.168"0.131"
40200187#10 -3/16"M4.5 - M50.194"0.152"
40200212#12 - 7/32"-0.220"0.165"
40200266#14 - 1/4"M6 - M6.50.255"0.191"
402001731/4" SmM6 - M6.50.185"0.138"
402003245/16"M7 - M80.318"0.238"
402003863/8"M100.381"0.286"
402003307/16"-0.323"0.242"
402003661/2"M12 - M12.50.367"0.275"
402004029/16"M140.429"0.322"
402004355/8"M160.480"0.360"
4020046011/16"M180.542"0.406"
402004813/4"-0.590"0.442"
4020050513/16"M200.652"0.489"
402005167/8"M220.697"0.523"
402003051/8"NPTSM. Shank0.313"0.234"
402004121/8"NPTLg. Shank0.437"0.328"
402004761/4"NPT-0.562"0.421"
402005213/8"NPT-0.700"0.531"
402005101/2"NPT-0.687"0.515"
40200151DIN 371, M44.5 mm3.4 mm
40200232DIN 371 M5 & M6 & DIN 376 M86.0 mm4.9 mm
40200274DIN 371, M77.0 mm5.5 mm
40200310DIN 371, M88.0 mm6.2 mm
40200389DIN 371, M1010.0 mm8.0 mm
40200274DIN 376, M107.0 mm5.5 mm
40200348DIN 376, M129.0 mm7.0 mm
40200408DIN 376, M1411.0 mm9.0 mm
40200430DIN 376, M1612.0 mm9.0 mm
40200465DIN 376, M1814.0 mm11.0 mm
40200491DIN 376, M2016.0 mm12.0 mm
