Quick Change QA Style

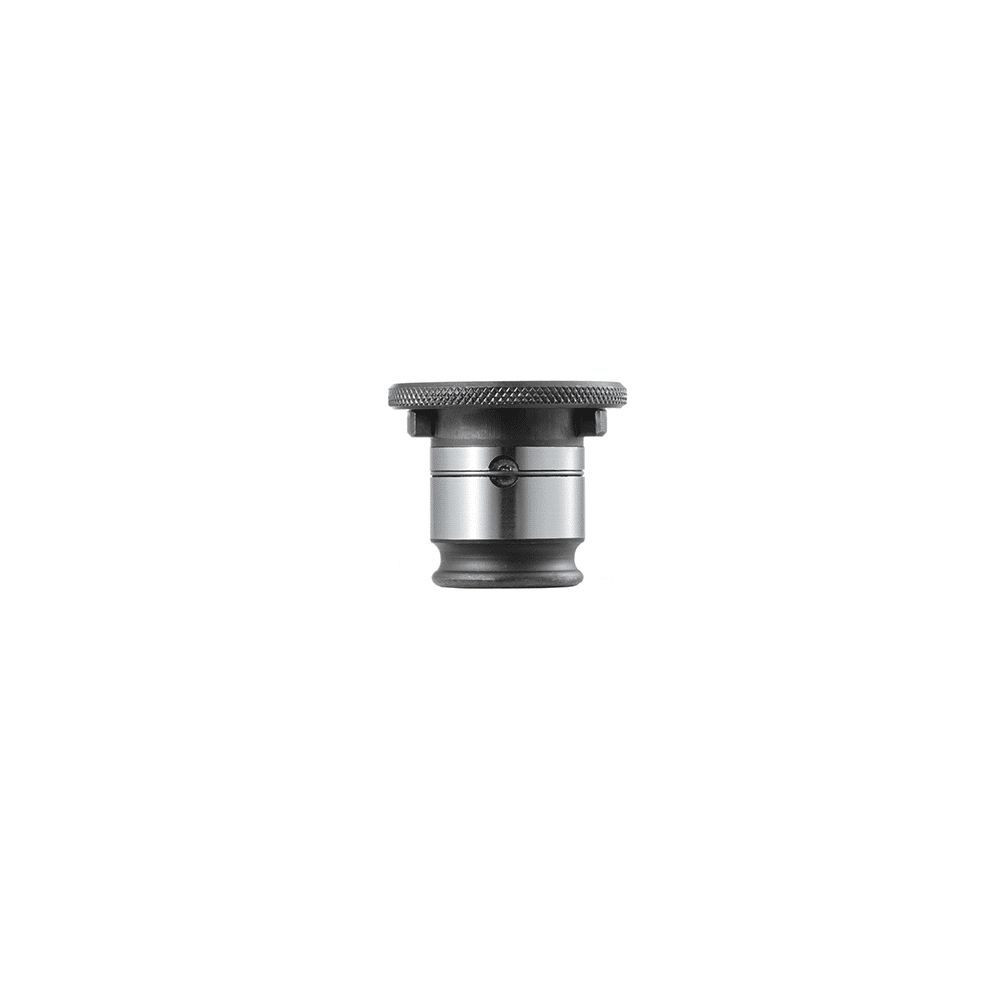

Adapter QRE Style
Available Options

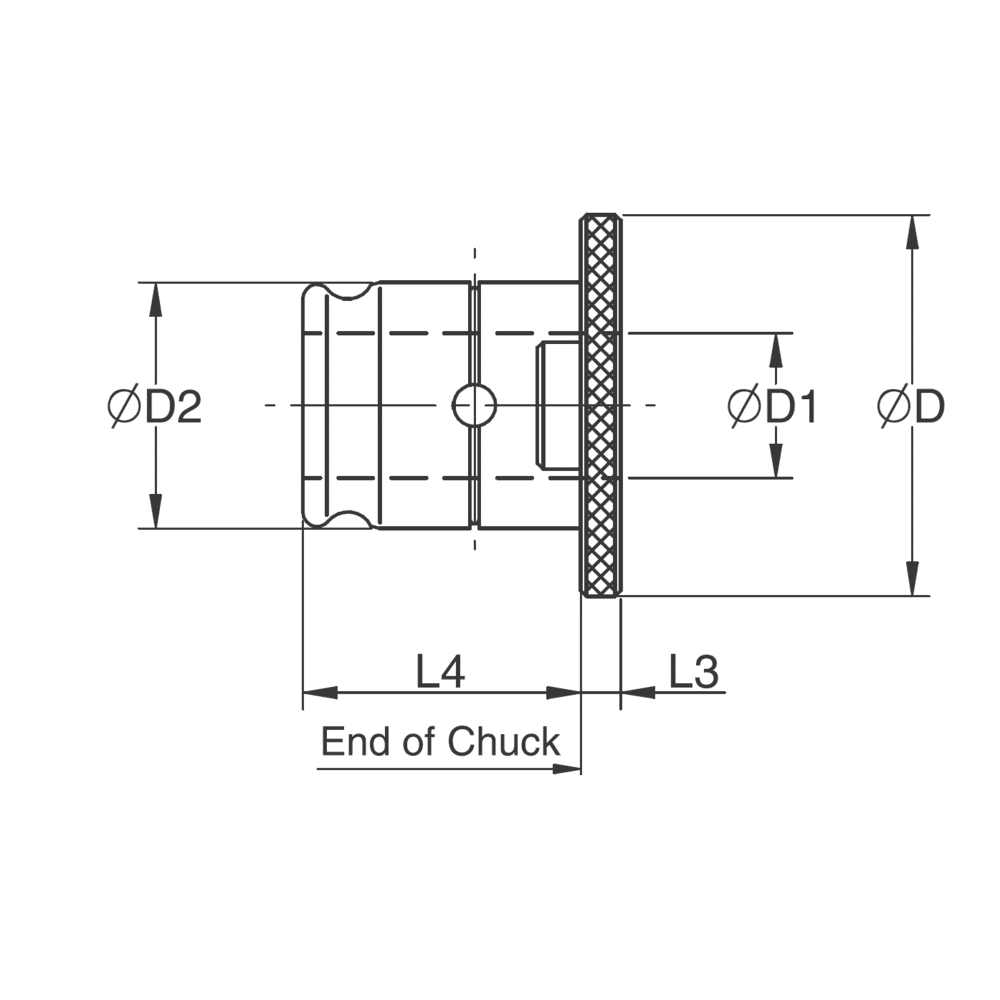

| Cat. no. | Description | Suitable for Chuck Size | Adapter Size | Dimension (inch) ?D | Dimension (inch) ?D1 | Dimension (inch) ?D2 | Dimension (inch) L3 | Dimension (inch) L4 | Stock | Price | Quantity | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 66100000 | QRE 1/0 | 1 | 0 | 1.181 | 0.51 | 0.74 | 0.15 | 0.84 | ||||
| 66200000 | QRE 2/0 | 2 | 0 | 1.889 | 0.51 | 1.22 | 0.19 | 1.37 | ||||
| 66200100 | QRE 2/1 | 2 | 1 | 1.889 | 0.74 | 0.122 | 0.19 | 1.37 | ||||
| 66300100 | QRE 3/1 | 3 | 1 | 2.755 | 0.74 | 1.88 | 0.23 | 2.18 | ||||
| 66300200 | QRE 3/2 | 3 | 2 | 2.755 | 1.22 | 1.88 | 0.23 | 2.18 | ||||
| 66400200 | QRE 4/2 | 4 | 2 | 3.622 | 1.22 | 2.36 | 0.51 | 2.48 | ||||
| 66400300 | QRE 4/3 | 4 | 3 | 3.622 | 1.88 | 2.36 | 0.51 | 2.48 | ||||
| 66500300 | QRE 5/3 | 5 | 3 | 4.488 | 1.88 | 3.07 | 0.51 | 3.62 | ||||
| 66500400 | QRE 5/4 | 5 | 4 | 4.488 | 2.36 | 3.07 | 0.51 | 3.62 |
