Soft Jaws

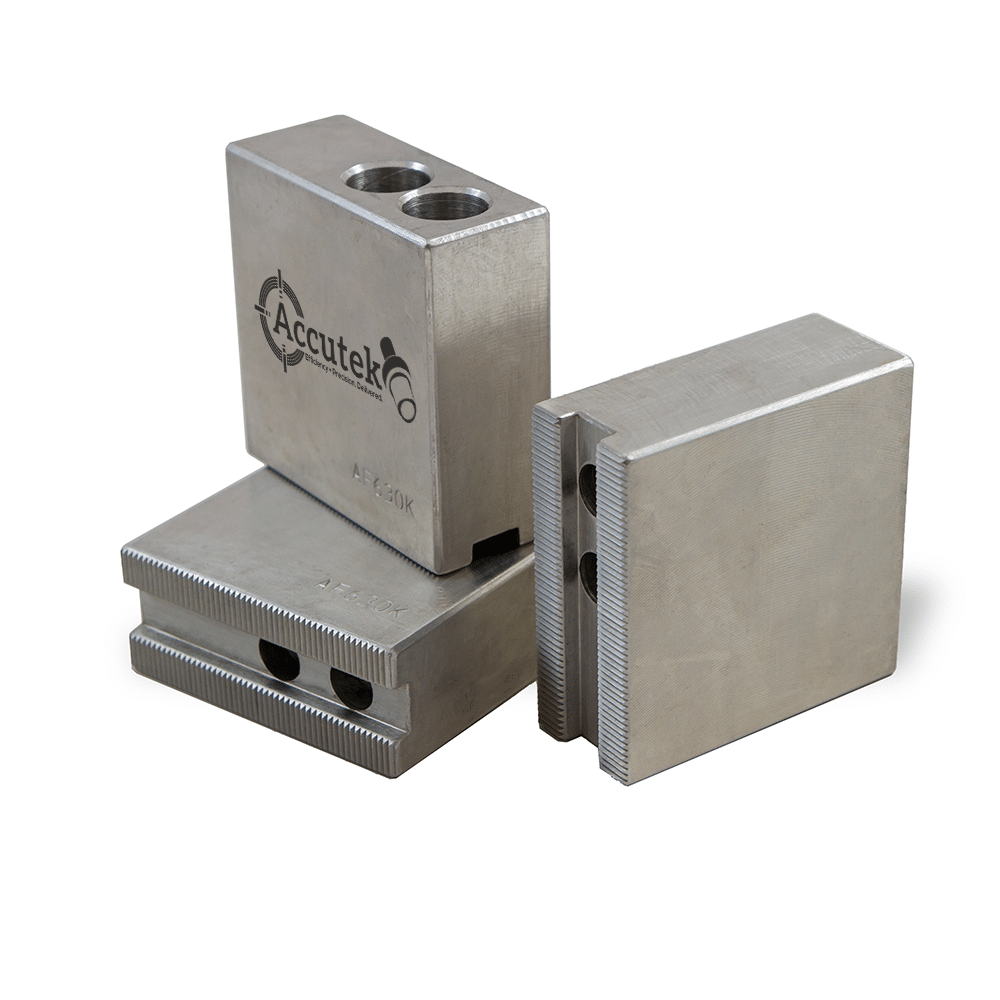

Aluminum Flat Serrated Top Jaws
Available Options

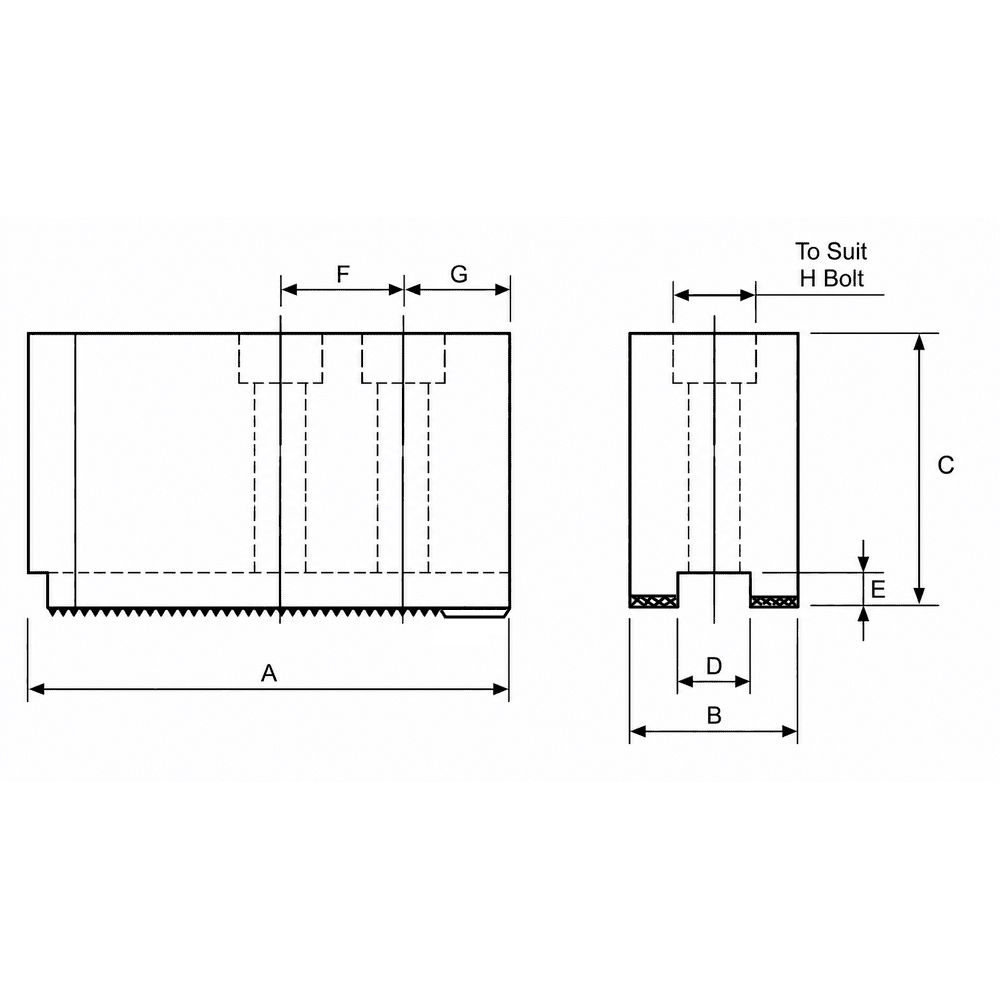

| Cat. no. | Chuck Size (Inch) | Suitable for Chuck Brands | A | B | C | D | E | F | G | H | Wt. each (lbs) | Stock | Price | Quantity | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AF638T1 | 6 | Kitagawa (B206 / B06) | 3.0 | 1.25 | 1.50 | 0.472 (12MM) | 0.197 | 0.787 (20MM) | 0.433 | M10 | 1.3 | ||||
| AF675T1 | 6 | Kitagawa (B206 / B06) | 3.0 | 1.25 | 3.0 | 0.472 (12MM) | 0.236 | 0.787 (20MM) | 0.433 | M10 | 2.9 | ||||
| AF850T1 | 8 | Kitagawa Sam Chully SMW Strong Matsumoto Howa | 4.0 | 1.5 | 2.0 | 0.551 (14MM) | 0.197 | 0.984 (25MM) | 1.0 | M12 | 3.1 | ||||
| AF8100T1 | 8 | Kitagawa Sam Chully SMW Strong Matsumoto Howa | 4.0 | 1.5 | 4.0 | 0.551 (14MM) | 0.256 | 0.984 (25MM) | 1.0 | M12 | 3.1 | ||||
| AF1050T1 | 10 | Kitagawa Sam Chully SMW Strong Matsumoto Howa | 4.5 | 1.5 | 2.0 | 0.63 (16MM) | 0.197 | 1.181 (30MM) | 1.0 | M12 | 5.7 | ||||
| AF10100T1 | 10 | Kitagawa Sam Chully SMW Strong Matsumoto Howa | 4.5 | 1.5 | 4.0 | 0.63 (16MM) | 0.197 | 1.181 (30MM) | 1.0 | M12 | 3.5 | ||||
| AF12100T1 | 12 | Kitagawa (B-12 Sam Chully Strong Matsumoto Howa | 5.5 | 2.0 | 4.0 | 0.709 (18MM) | 0.197 | 1.181 (30MM) | 1.0 | M14 | 3.5 | ||||
| AF1250T2 | 12 | Kitagawa B-212 SMW Sam Chully Matsumoto Howa | 5.5 | 2.0 | 2.0 | 0.827 (21MM) | 0.197 | 1.181 (30MM) | 1.0 | M16 | 12 | ||||
| AF12100T2 | 12 | Kitagawa B-212 SMW Sam Chully Matsumoto Howa | 5.5 | 2.0 | 4.0 | 0.827 (21MM) | 0.197 | 1.181 (30MM) | 1.0 | M16 | 12 |
