Straight Shank Holders

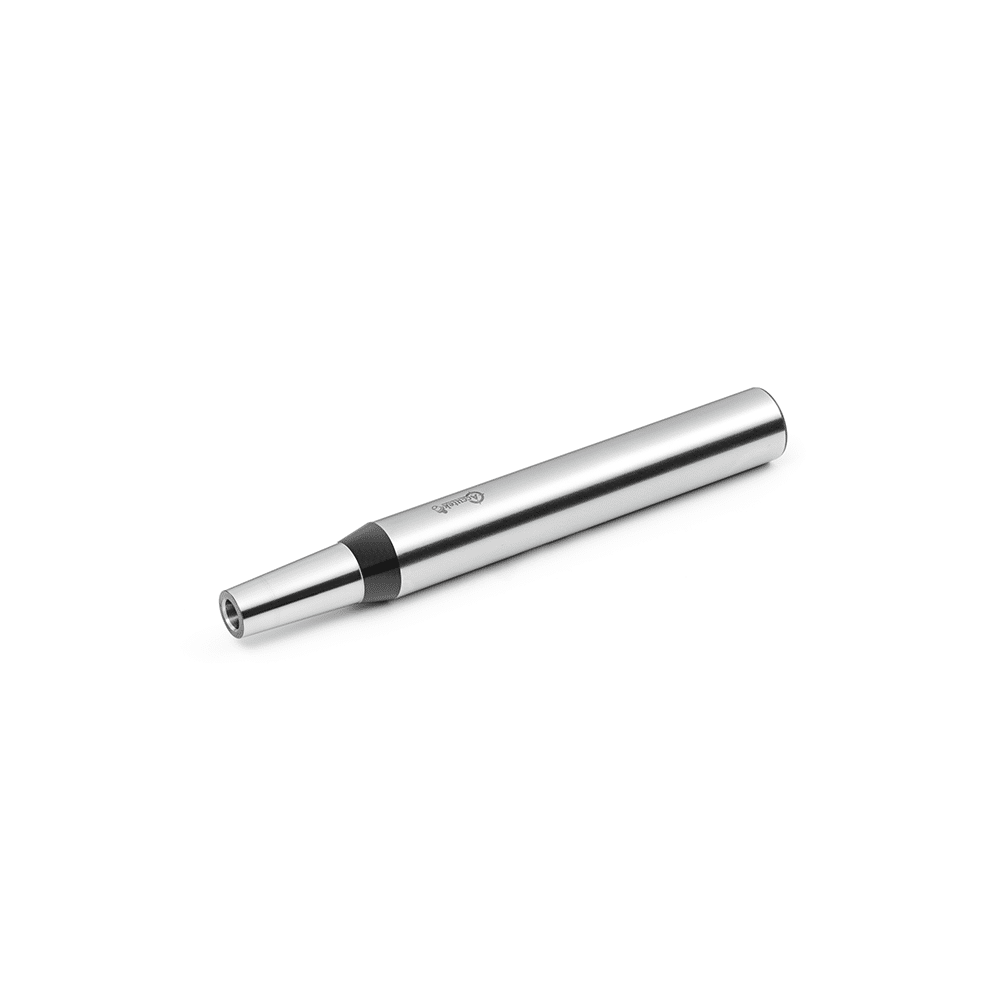

Straight Shank Extension AccuGrip™ Shrink Fit Holders
FEATURES:
- T.I.R. < 0.00012” / 0.003µ
- Shank Tolerance H6
- Coolant-Thru Body”
Available Options

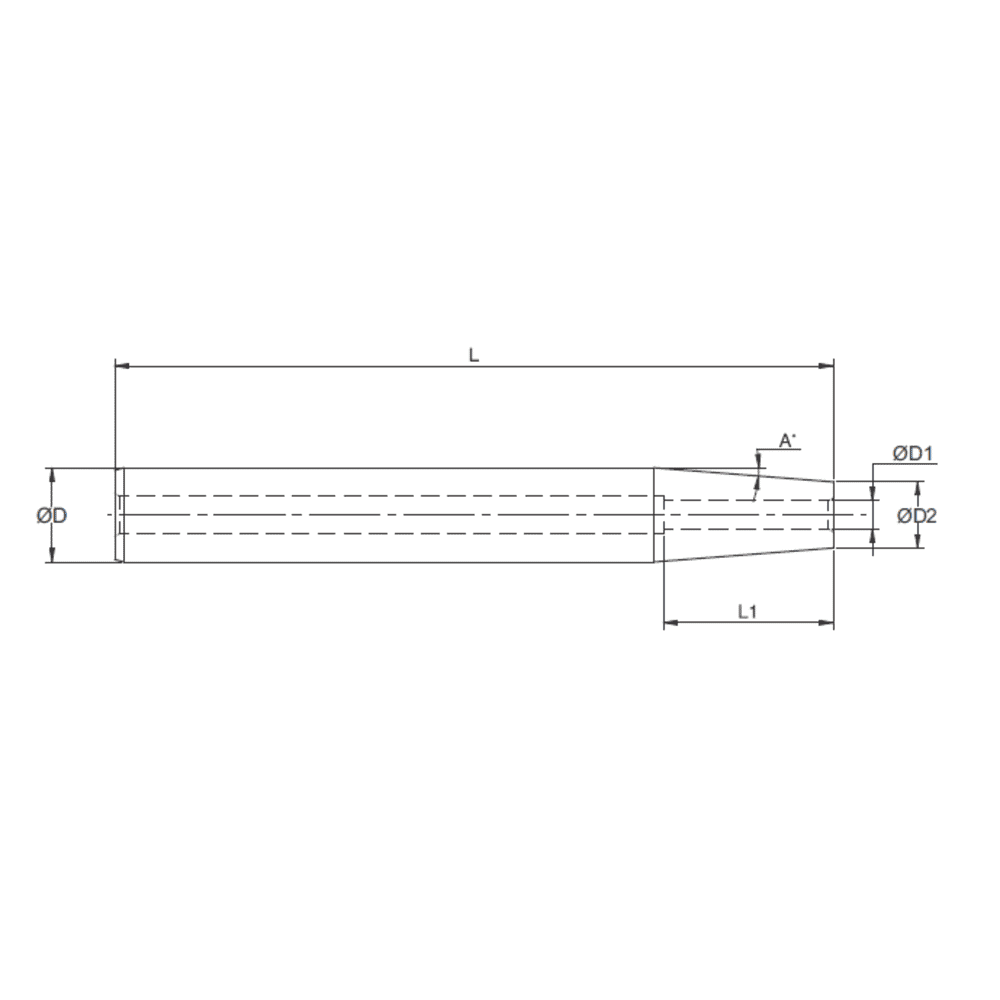

| Cat. no. | Description | ØD (inch) | ØD1 (inch) | ØD2 (inch) | L | L1 | A | Stock | Price | Quantity | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 94451121 | SSH.750-SF.250-4.15 | 0.750 | 0.2500 | 0.472 | 4.15 | 1.417 | 3.0 | ||||
| 94451321 | SSH.750-SF.3125-4.15 | 0.750 | 0.3125 | 0.551 | 4.15 | 1.417 | 3.0 | ||||
| 94452621 | SSH.750-SF.375-4.15 | 0.750 | 0.3750 | 0.630 | 4.15 | 1.653 | 3.0 | ||||
| 94511521 | SSH1.00-SF.500-4.15 | 1.000 | 0.5000 | 0.708 | 4.15 | 1.850 | 3.0 | ||||
| 94511141 | SSH1.00-SF.250-8.00 | 1.000 | 0.2500 | 0.472 | 8.00 | 1.417 | 3.0 | ||||
| 94511341 | SSH1.00-SF.3125-8.00 | 1.000 | 0.3125 | 0.551 | 8.00 | 1.417 | 3.0 | ||||
| 94512641 | SSH1.00-SF.375-8.00 | 1.000 | 0.3750 | 0.630 | 8.00 | 1.653 | 3.0 | ||||
| 94511541 | SSH1.00-SF.500-8.00 | 1.000 | 0.5000 | 0.708 | 8.00 | 1.850 | 3.0 |
