Modular Style

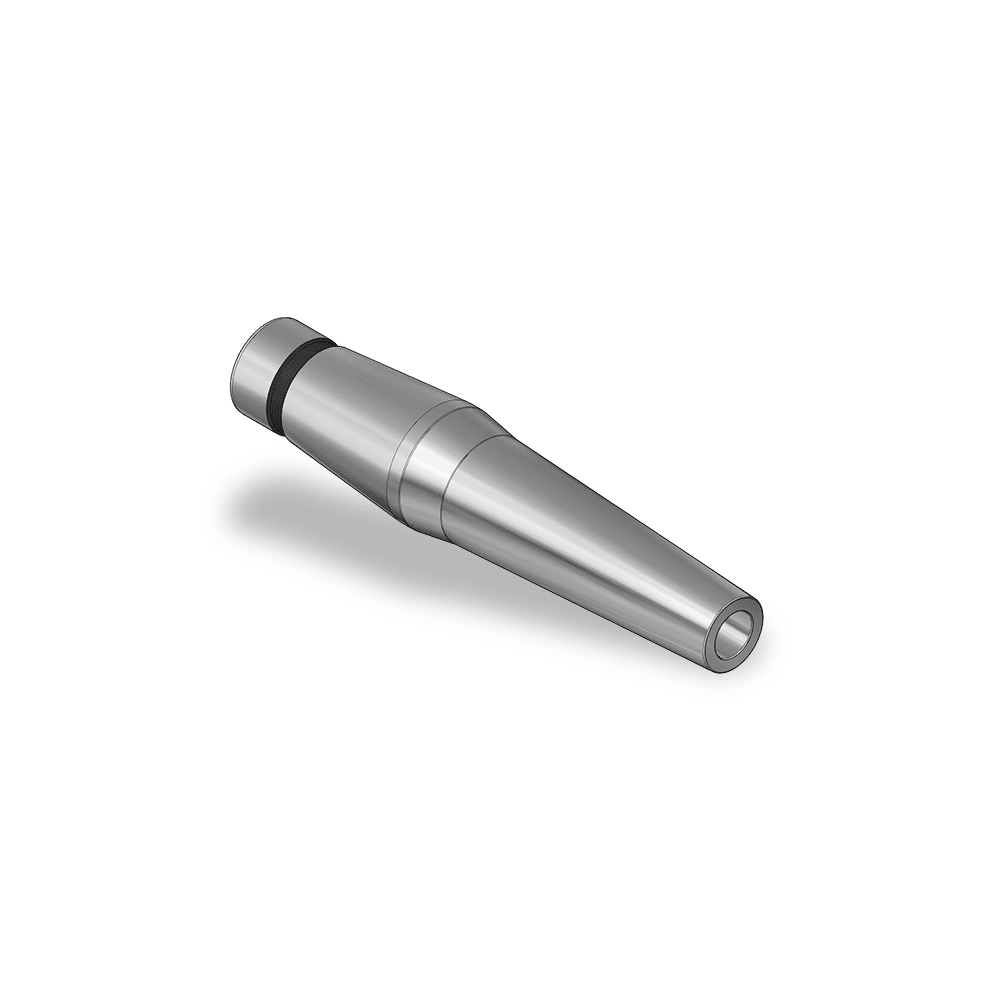

AccuGrip™ Modular Slim Extensions (Model SFS) Inch Size
Available Options

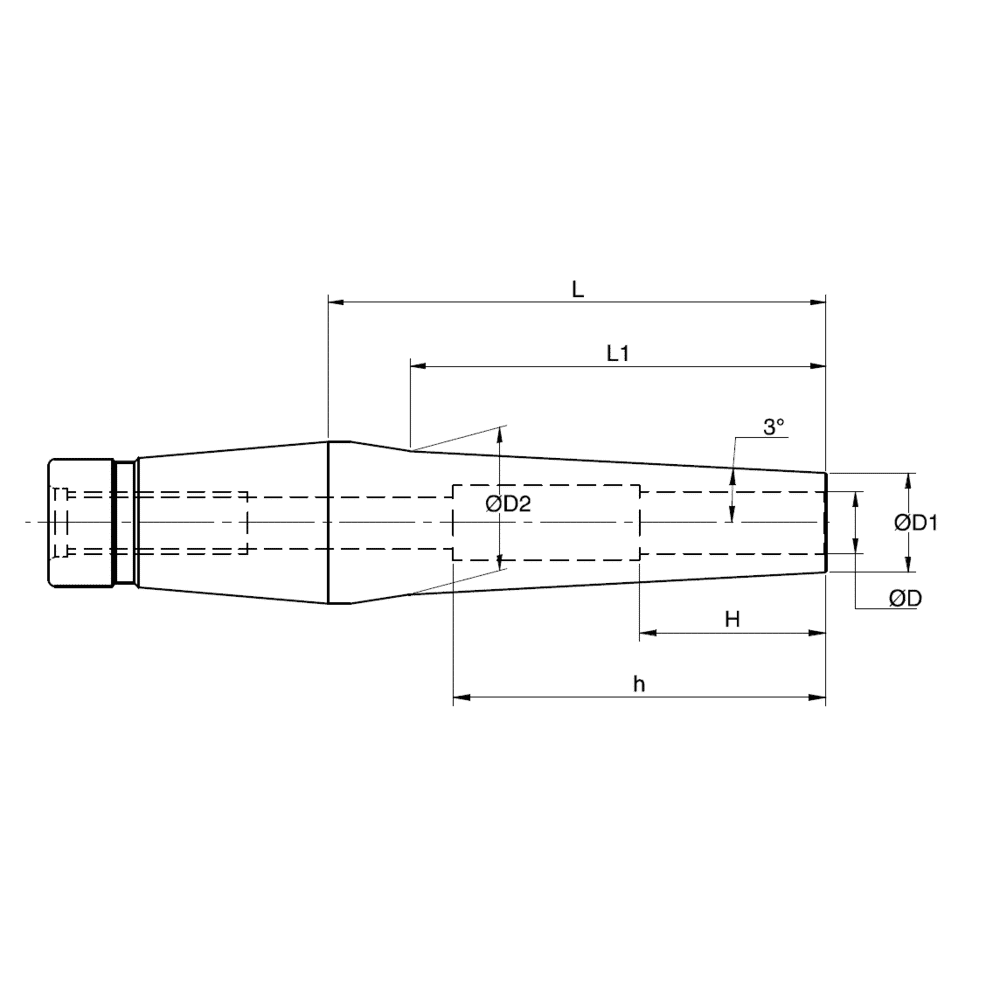

| Cat. no. | Description | ØD (inch) | ØD1 (inch) | ØD2 (inch) | L (inch) | L1 (inch) | h (inch) | H | Coolant Style | Stock | Price | Quantity | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 941680711 | SFS 12 0.125 L-2.17 | 0.125 | 0.354 | 0.531 | 2.17 | 1.654 | 2.36 | 0.390 | AD Thru | ||||
| 941680911 | SFS 12 0.187 L-2.17 | 0.187 | 0.433 | 0.61 | 2.17 | 1.654 | 2.36 | 0.590 | AD Thru | ||||
| 941681111 | SFS 12 0.250 L-2.17 | 0.250 | 0.472 | 0.65 | 2.17 | 1.654 | 2.36 | 0.710 | AD Thru | ||||
| 941682611 | SFS 12 0.375 L-2.17 | 0.375 | 0.630 | 0.807 | 2.17 | 1.654 | 2.36 | 0.370 | AD Thru | ||||
| 941681511 | SFS 12 0.500 L-2.17 | 0.500 | 0.709 | 0.886 | 2.17 | 1.654 | 2.36 | 1.180 | AD Thru | ||||
| 941680716 | SFS 12 0.125 L-3.15 | 0.125 | 0.354 | 0.630 | 3.15 | 2.638 | 3.35 | 0.390 | AD Thru | ||||
| 941680916 | SFS 12 0.187 L-3.15 | 0.187 | 0.433 | 0.709 | 3.15 | 2.638 | 3.35 | 0.590 | AD Thru | ||||
| 941681116 | SFS 12 0.250 L-3.15 | 0.250 | 0.472 | 0.748 | 3.15 | 2.638 | 3.35 | 0.710 | AD Thru | ||||
| 941682616 | SFS 12 0.375 L-3.15 | 0.375 | 0.630 | 0.906 | 3.15 | 2.638 | 3.35 | 0.370 | AD Thru | ||||
| 941681516 | SFS 12 0.500 L-3.15 | 0.500 | 0.709 | 0.984 | 3.15 | 2.638 | 3.35 | 1.180 | AD Thru | ||||
| 941680722 | SFS 12 0.125 L-4.33 | 0.125 | 0.354 | 0.756 | 4.33 | 3.818 | 4.33 | 0.390 | AD Thru | ||||
| 941680922 | SFS 12 0.187 L-4.33 | 0.187 | 0.433 | 0.835 | 4.33 | 3.818 | 4.33 | 0.590 | AD Thru | ||||
| 941681122 | SFS 12 0.250 L-4.33 | 0.250 | 0.472 | 0.874 | 4.33 | 3.818 | 4.33 | 0.710 | AD Thru | ||||
| 941682622 | SFS 12 0.375 L-4.33 | 0.375 | 0.630 | 1.031 | 4.33 | 3.818 | 4.33 | 0.370 | AD Thru | ||||
| 941681522 | SFS 12 0.500 L-4.33 | 0.500 | 0.709 | 1.110 | 4.33 | 3.818 | 4.33 | 1.180 | AD Thru |
