CAT50 AccuGrip™ Shrink Fit Holders – Standard DIN Length

FEATURES:

Balanced to G2.5 @25,000 RPM
Taper shank ground to AT3 accuracy (or better)
T.I.R. < 0.00012” / 0.003µ”

Cat. no.: N/A Category: CAT 50 Shrink Fit Holders

Available Options

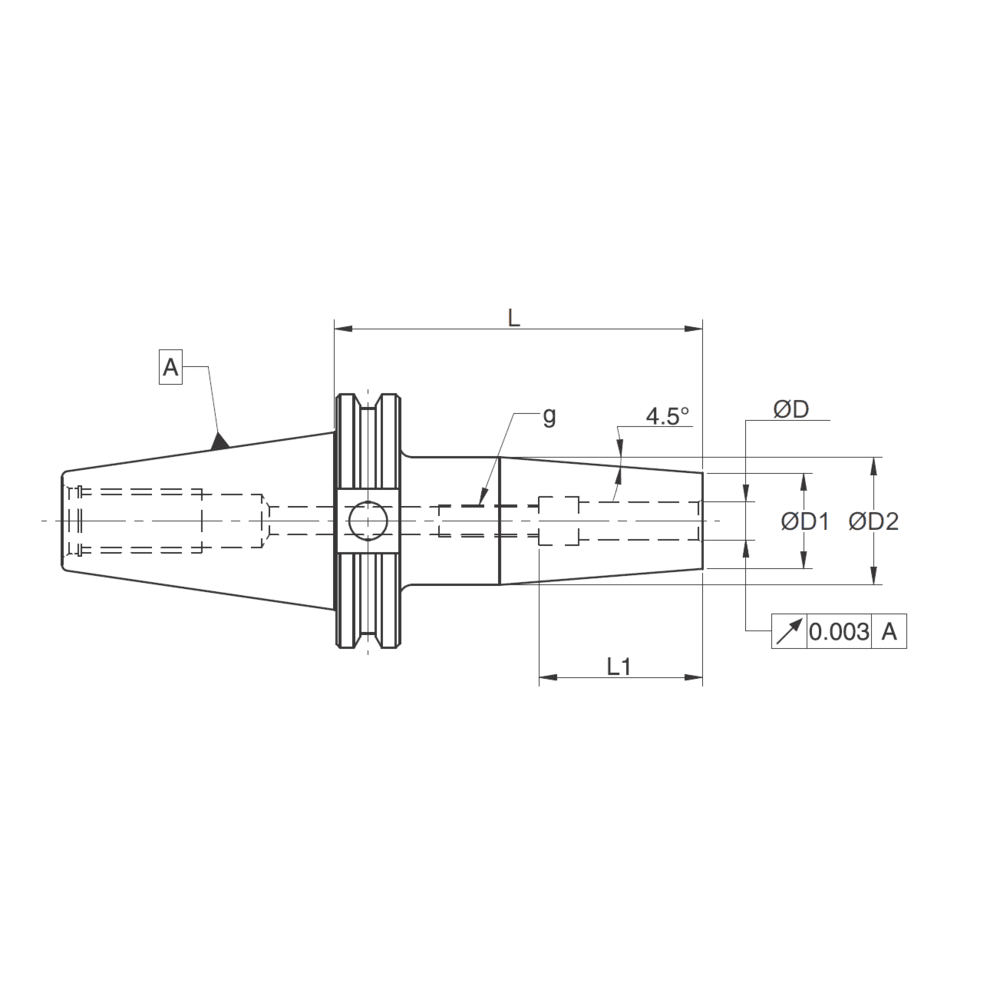

Cat. no.	Description	--	ØD	L	ØD1	ØD2	L1	G	Coolant Style	Quantity
94261119	CAT50-SF 0.250-3.74	CAT50 Inch	0.250	3.74	0.83	1.06	1.42	M5	AD Thru	CAT50 AccuGrip™ Shrink Fit Holders – Standard DIN Length quantity
94262619	CAT50-SF 0.375-3.74	CAT50 Inch	0.375	3.74	0.95	1.26	1.65	M8X1	AD Thru	CAT50 AccuGrip™ Shrink Fit Holders – Standard DIN Length quantity
94261519	CAT50-SF 0.500-3.74	CAT50 Inch	0.500	3.74	1.06	1.34	1.85	M10X1	AD Thru	CAT50 AccuGrip™ Shrink Fit Holders – Standard DIN Length quantity
94261719	CAT50-SF 0.625-3.74	CAT50 Inch	0.625	3.74	1.06	1.34	1.97	M12X1	AD Thru	CAT50 AccuGrip™ Shrink Fit Holders – Standard DIN Length quantity
94262819	CAT50-SF 0.750-3.74	CAT50 Inch	0.750	3.74	1.30	1.65	2.05	M16X1	AD Thru	CAT50 AccuGrip™ Shrink Fit Holders – Standard DIN Length quantity
94262121	CAT50-SF 1.000-4.13	CAT50 Inch	1.000	4.13	1.73	2.09	2.28	M16X1	AD Thru	CAT50 AccuGrip™ Shrink Fit Holders – Standard DIN Length quantity
94262221	CAT50-SF 1.250-4.13	CAT50 Inch	1.250	4.13	1.73	2.09	2.44	M16X1	AD Thru	CAT50 AccuGrip™ Shrink Fit Holders – Standard DIN Length quantity
94260619	CAT50-SF 6-95	CAT50 Metric	6	95	21	27	36	M5	AD Thru	CAT50 AccuGrip™ Shrink Fit Holders – Standard DIN Length quantity
94260819	CAT50-SF 8-95	CAT50 Metric	8	95	21	27	36	M6	AD Thru	CAT50 AccuGrip™ Shrink Fit Holders – Standard DIN Length quantity
94261019	CAT50-SF 10-95	CAT50 Metric	10	95	24	32	42	M8X1	AD Thru	CAT50 AccuGrip™ Shrink Fit Holders – Standard DIN Length quantity
94261219	CAT50-SF 12-95	CAT50 Metric	12	95	24	32	47	M10X1	AD Thru	CAT50 AccuGrip™ Shrink Fit Holders – Standard DIN Length quantity
94261419	CAT50-SF 14-95	CAT50 Metric	14	95	27	34	47	M10X1	AD Thru	CAT50 AccuGrip™ Shrink Fit Holders – Standard DIN Length quantity
94261619	CAT50-SF 16-95	CAT50 Metric	16	95	27	34	50	M12X1	AD Thru	CAT50 AccuGrip™ Shrink Fit Holders – Standard DIN Length quantity
94261819	CAT50-SF 18-95	CAT50 Metric	18	95	33	42	50	M12X1	AD Thru	CAT50 AccuGrip™ Shrink Fit Holders – Standard DIN Length quantity
94262019	CAT50-SF 20-95	CAT50 Metric	20	95	33	42	52	M16X1	AD Thru	CAT50 AccuGrip™ Shrink Fit Holders – Standard DIN Length quantity
94262521	CAT50-SF 25-105	CAT50 Metric	25	105	44	53	58	M16X1	AD Thru	CAT50 AccuGrip™ Shrink Fit Holders – Standard DIN Length quantity
94263221	CAT50-SF 32-105	CAT50 Metric	32	105	44	53	62	M16X1	AD Thru	CAT50 AccuGrip™ Shrink Fit Holders – Standard DIN Length quantity
