BT40 AccuGrip™ Shrink Fit Holders – Standard DIN Length

FEATURES:

Balanced to G2.5 @25,000 RPM
Taper shank ground to AT3 accuracy (or better)
T.I.R. < 0.00012” / 0.003µ

Cat. no.: N/A Category: BT 40 Shrink Fit Holders

Available Options

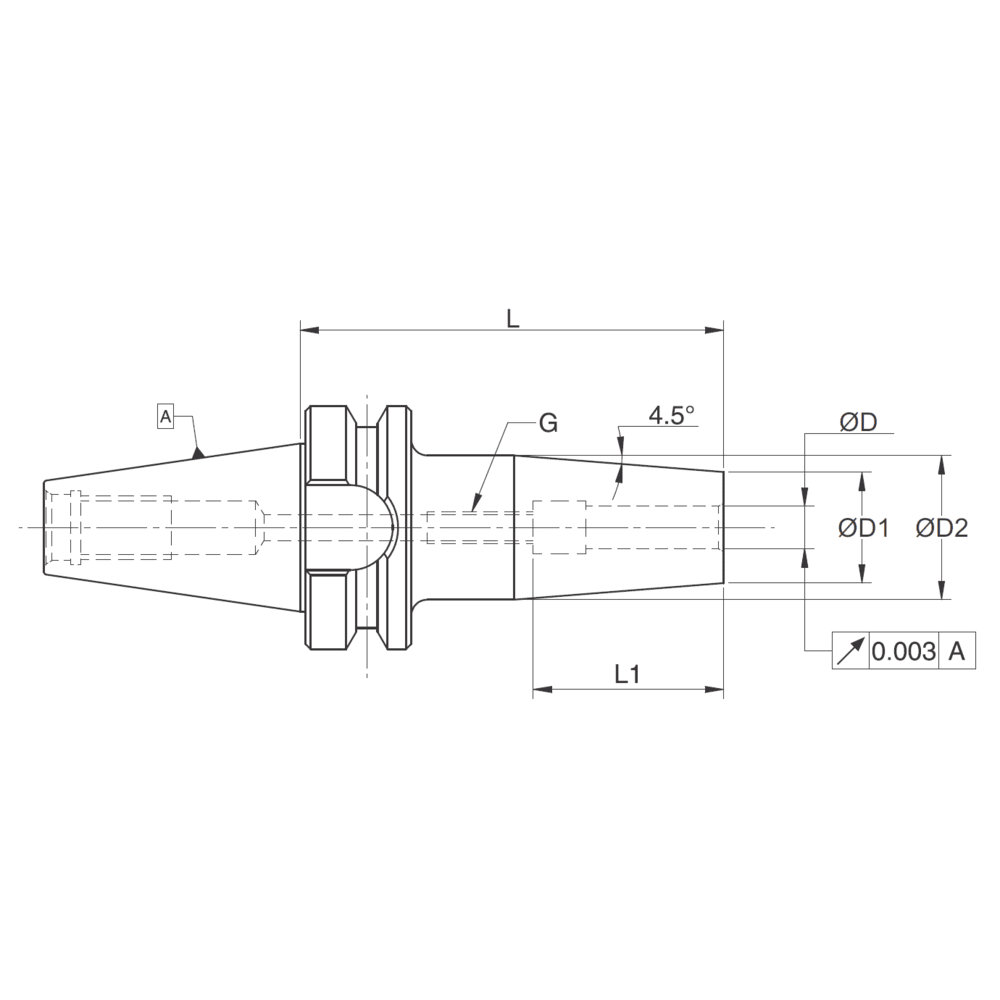

Cat. no.	Description	--	ØD	L	ØD1	ØD2	L1	g	Coolant Style	Quantity
94120718	BT40-SF 0.125-3.54	BT40 Inch	0.125	3.54	0.39	0.71	0.35	-	AD Thru	BT40 AccuGrip™ Shrink Fit Holders – Standard DIN Length quantity
94120918	BT40-SF 0.187-3.54	BT40 Inch	0.187	3.54	0.39	0.71	0.47	-	AD Thru	BT40 AccuGrip™ Shrink Fit Holders – Standard DIN Length quantity
94121118	BT40-SF 0.250-3.54	BT40 Inch	0.250	3.54	0.83	1.06	1.42	M5	AD Thru	BT40 AccuGrip™ Shrink Fit Holders – Standard DIN Length quantity
94122618	BT40-SF 0.375-3.54	BT40 Inch	0.375	3.54	0.95	1.26	1.65	M8X1	AD Thru	BT40 AccuGrip™ Shrink Fit Holders – Standard DIN Length quantity
94121518	BT40-SF 0.500-3.54	BT40 Inch	0.500	3.54	1.06	1.34	1.85	M10X1	AD Thru	BT40 AccuGrip™ Shrink Fit Holders – Standard DIN Length quantity
94121718	BT40-SF 0.625-3.54	BT40 Inch	0.625	3.54	1.06	1.34	1.97	M12X1	AD Thru	BT40 AccuGrip™ Shrink Fit Holders – Standard DIN Length quantity
94122818	BT40-SF 0.750-3.54	BT40 Inch	0.750	3.54	1.30	1.65	2.05	M16X1	AD Thru	BT40 AccuGrip™ Shrink Fit Holders – Standard DIN Length quantity
94122120	BT40-SF 1.000-3.94	BT40 Inch	1.000	3.94	1.73	2.09	2.44	M16X1	AD Thru	BT40 AccuGrip™ Shrink Fit Holders – Standard DIN Length quantity
94122220	BT40-SF 1.250-3.94	BT40 Inch	1.250	3.94	1.73	2.09	2.44	M16X1	AD Thru	BT40 AccuGrip™ Shrink Fit Holders – Standard DIN Length quantity
94120318	BT40-SF 3-90	BT40 Metric	3	90	10	18	9	-	AD Thru	BT40 AccuGrip™ Shrink Fit Holders – Standard DIN Length quantity
94120418	BT40-SF 4-90	BT40 Metric	4	90	10	18	12	-	AD Thru	BT40 AccuGrip™ Shrink Fit Holders – Standard DIN Length quantity
94120518	BT40-SF 5-90	BT40 Metric	5	90	10	18	15	-	AD Thru	BT40 AccuGrip™ Shrink Fit Holders – Standard DIN Length quantity
94120618	BT40-SF 6-90	BT40 Metric	6	90	21	27	36	M5	AD Thru	BT40 AccuGrip™ Shrink Fit Holders – Standard DIN Length quantity
94120818	BT40-SF 8-90	BT40 Metric	8	90	21	27	36	M6	AD Thru	BT40 AccuGrip™ Shrink Fit Holders – Standard DIN Length quantity
94121018	BT40-SF 10-90	BT40 Metric	10	90	24	32	42	M8X1	AD Thru	BT40 AccuGrip™ Shrink Fit Holders – Standard DIN Length quantity
94121218	BT40-SF 12-90	BT40 Metric	12	90	24	32	47	M10X1	AD Thru	BT40 AccuGrip™ Shrink Fit Holders – Standard DIN Length quantity
94121618	BT40-SF 16-90	BT40 Metric	16	90	27	34	50	M12X1	AD Thru	BT40 AccuGrip™ Shrink Fit Holders – Standard DIN Length quantity
94122018	BT40-SF 20-90	BT40 Metric	20	90	33	42	52	M16X1	AD Thru	BT40 AccuGrip™ Shrink Fit Holders – Standard DIN Length quantity
94122520	BT40-SF 25-100	BT40 Metric	25	100	44	53	58	M16X1	AD Thru	BT40 AccuGrip™ Shrink Fit Holders – Standard DIN Length quantity
94123220	BT40-SF 32-100	BT40 Metric	32	100	44	53	58	M16X1	AD Thru	BT40 AccuGrip™ Shrink Fit Holders – Standard DIN Length quantity

Description

NOTE: AccuGrip™ is available with AccuKool™ ports. To request make the following changes to part no. and descriptions:
Example: 94121718 becomes 94121718-3CP. The description goes from BT40-SF .625-3.54 to BT40-SF-IK3 .625-3.54.
