PTI Shell Mill Holder

PTI Shell Mill Holder

FEATURES:

  • Balanced to G2.5 @ 25,000 RPM
  • Coolant-Thru the Body
  •  < 0.0004″
Cat. no.: N/A Category:

Available Options

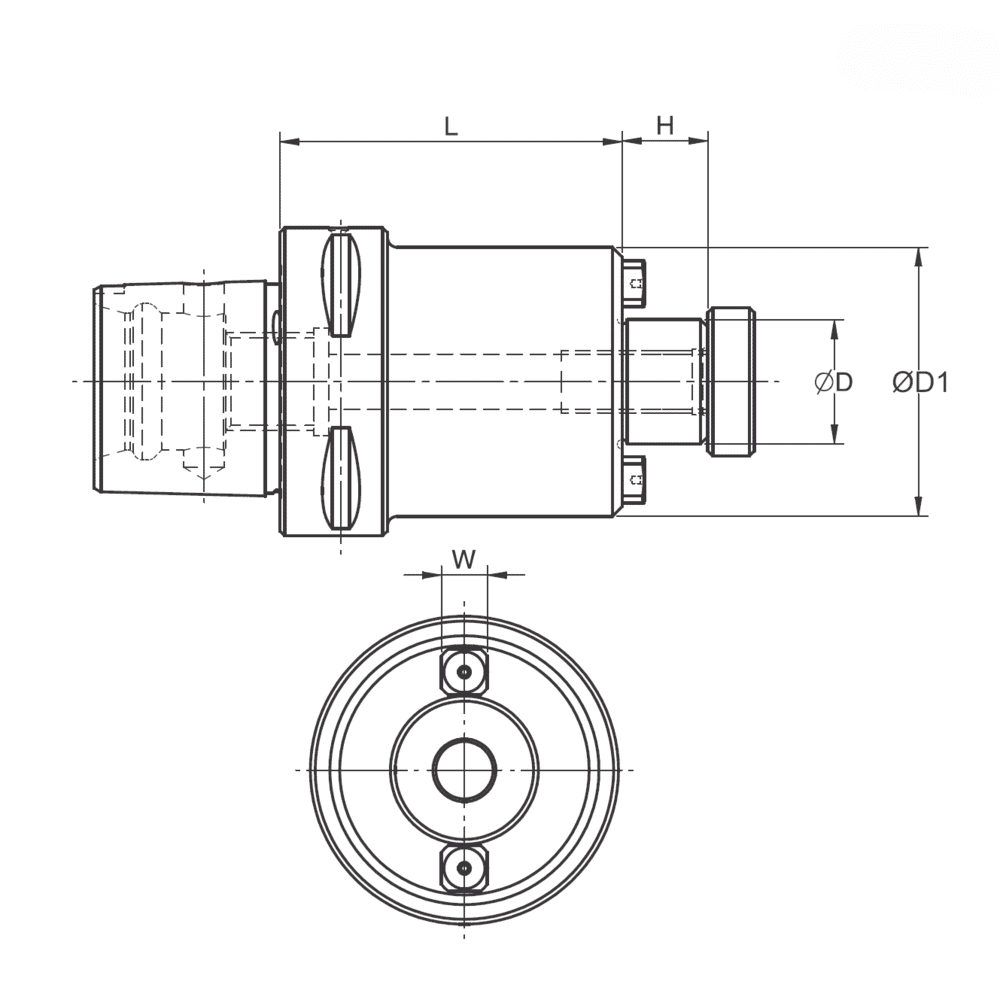

Cat. no.Descriptiontype textØDØD1LWHCoolant StyleStockPriceQuantity
81677510PTI40-SMH 0.750-2.00PTI40 Shank0.751.7520.3120.69AD Thru
81687505PTI50-SMH 0.750-1.00PTI50 Shank0.7501.751.000.3120.69AD Thru
81685009PTI50-SMH 0.500-1.77PTI50 Shank0.51.751.770.250.56AD Thru
81687510PTI50-SMH 0.750-2.00PTI50 Shank0.751.7520.3120.69AD Thru
81681008PTI50-SMH 1.000-1.57PTI50 Shank12.191.570.3750.69AD Thru
81695009PTI63-SMH 0.500-1.77PTI63 Shank0.51.751.770.250.56AD Thru
81697510PTI63-SMH 0.750-2.00PTI63 Shank0.751.7520.3120.69AD Thru
81697520PTI63-SMH 0.750-4.00PTI63 Shank0.7501.754.000.3120.69AD Thru
81691010PTI63-SMH 1.000-2.00PTI63 Shank12.1920.3750.69AD Thru
81691210PTI63-SMH 1.250-2.00PTI63 Shank12.7520.5000.69AD Thru
81691510PTI63-SMH 1.500-2.00PTI63 Shank1.53.3820.6250.94AD Thru
81707509PTI80-SMH 0.750-1.77PTI80 Shank0.7501.751.770.3120.69AD Thru
81707516PTI80-SMH 0.750-3.15PTI80 Shank0.7501.753.150.3120.69AD Thru
81701010PTI80-SMH 1.000-2.00PTI80 Shank1.0002.162.000.3750.69AD Thru
81701214PTI80-SMH 1.250-2.75PTI80 Shank1.2502.752.750.5000.69AD Thru
81701510PTI80-SMH 1.500-2.00PTI80 Shank1.50003.382.000.6250.94AD Thru
81702010PTI80-SMH 2.000-2.00PTI80 Shank2.0004.442.000.7500.94AD Thru
81701610PTI80-SMH 16-50PTI80 Shank16 mm36 mm50 mm8 mm17mmAD Thru

NOTE: ALL Shell Mill Holders are supplied with coolant through the center up to the arbor screw hole.
Represents holders provide with metric allen cap bolt.
