NOTE: ALL Shell Mill Holders are supplied with coolant through the center up to the arbor screw hole.
CAT 50 Shell Mill Holder
CAT50 Shell Mill Holder X-Long

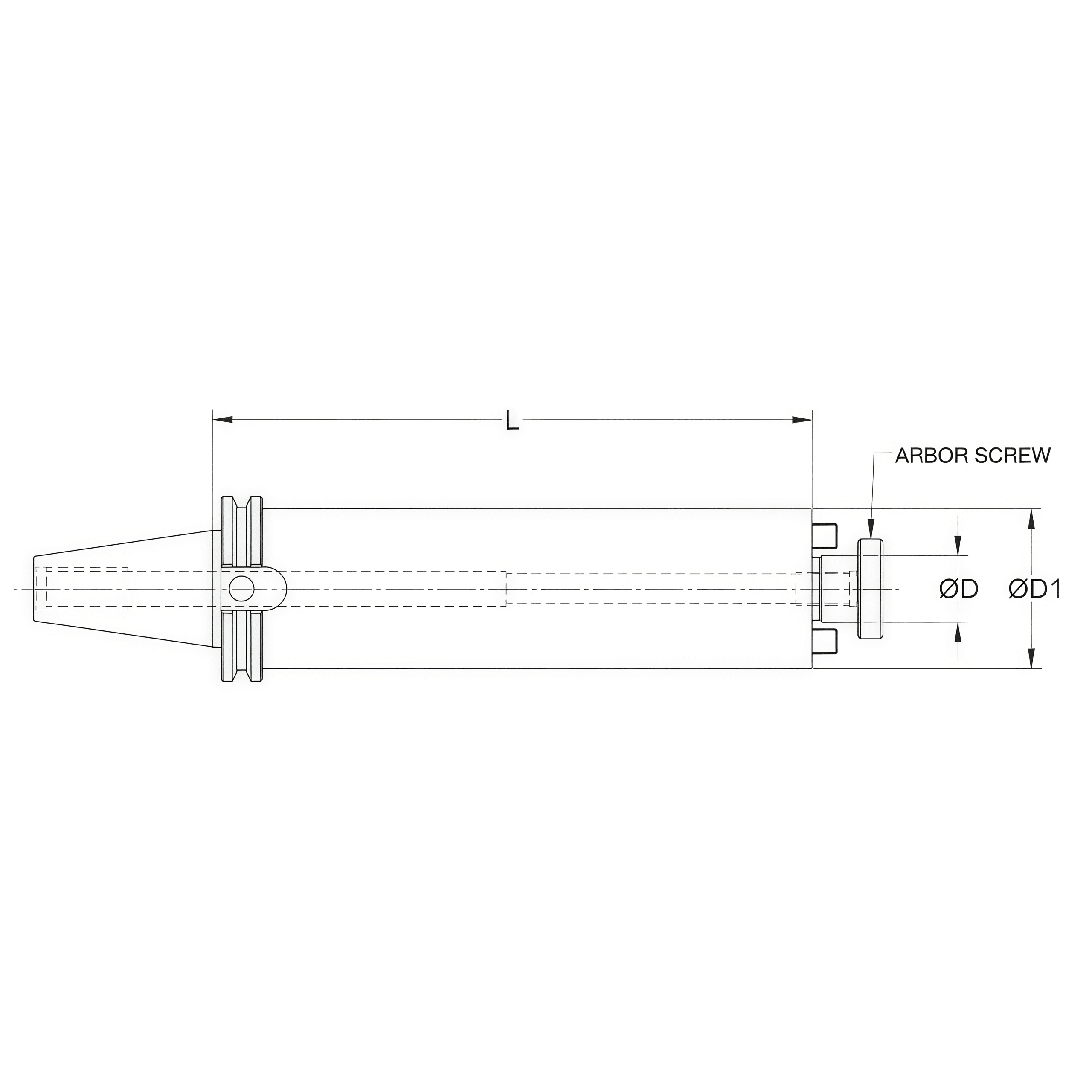

FEATURES:
- Balanced to G2.5 @ 25,000 RPM
- Taper shank ground to AT3 accuracy (or better)
- T.I.R. < 0.0004”
- Coolant through center of body
- ANSI-ASME B5.500-1994
Available Options

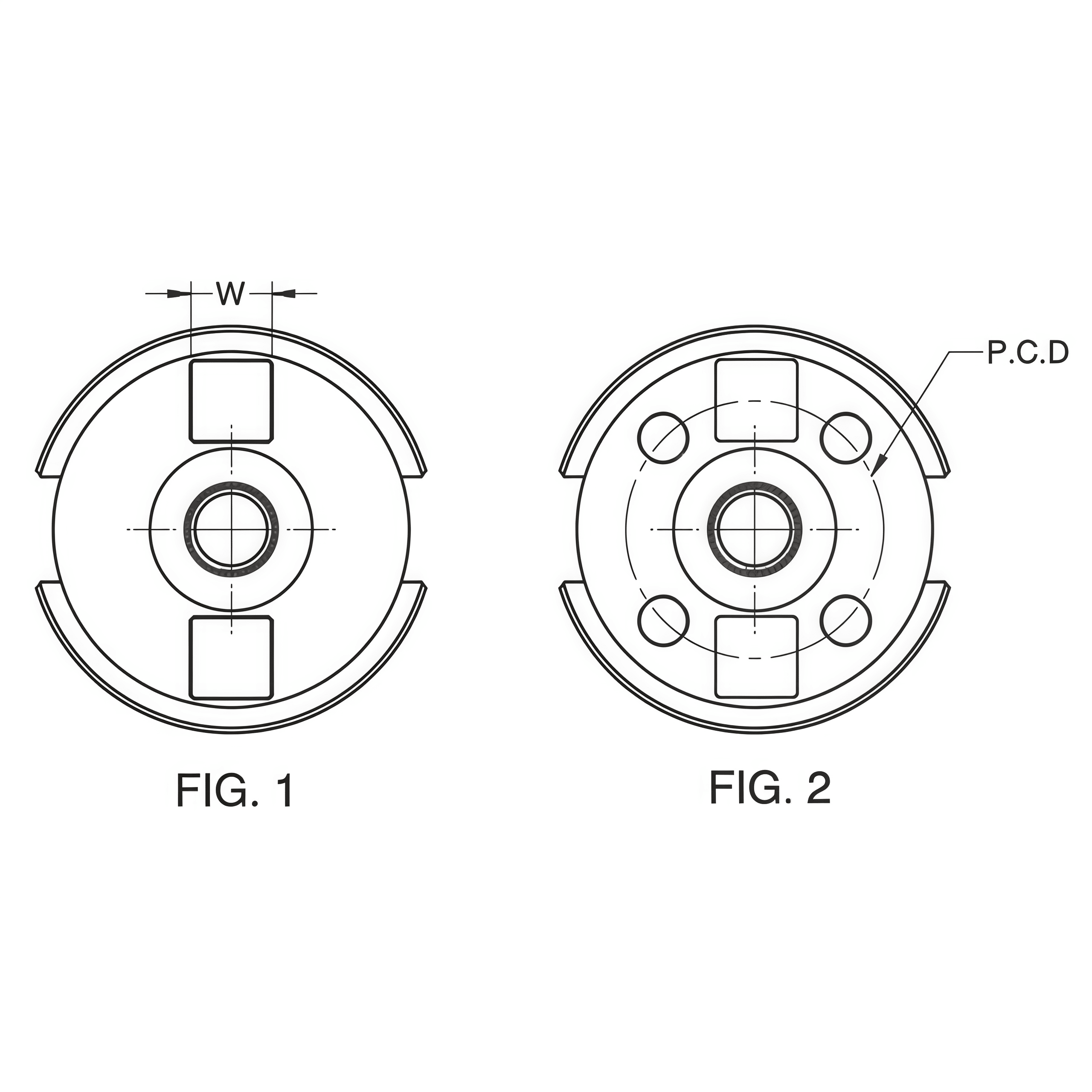

| Cat. no. | Description | Fig. No. | ØD (inch) | ØD1 (inch) | L (inch) | W (inch) | PCD | Arbor Screw | Coolant Style | Stock | Price | Quantity | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 81265030XL | CAT50-SMHXL 0.500-6 | 1 | 0.500 | 1.25 | 6.00 | 0.250 | - | 1/4"-28 | AD THRU | ||||
| 81265046XL | CAT50-SMHXL 0.500-9 | 1 | 0.500 | 1.25 | 9.00 | 0.250 | - | 1/4"-28 | AD THRU | ||||
| 81267520XL | CAT50-SMHXL 0.750-4 | 1 | 0.750 | 1.90 | 4.00 | 0.312 | - | 3/8"-24 | AD THRU | ||||
| 81267530XL | CAT50-SMHXL 0.750-6 | 1 | 0.750 | 1.90 | 6.00 | 0.312 | - | 3/8"-24 | AD THRU | ||||
| 81267546XL | CAT50-SMHXL 0.750-9 | 1 | 0.750 | 1.90 | 9.00 | 0.312 | - | 3/8"-24 | AD THRU | ||||
| 81267561XL | CAT50-SMHXL 0.750-12 | 1 | 0.750 | 1.90 | 12.00 | 0.312 | - | 3/8"-24 | AD THRU | ||||
| 81267576XL | CAT50-SMHXL 0.750-15 | 1 | 0.750 | 1.90 | 15.00 | 0.312 | - | 3/8"-24 | AD THRU | ||||
| 81261025XL | CAT50-SMHXL 1.000-5 | 1 | 1.000 | 2.40 | 5.00 | 0.375 | - | 1/2"-20 | AD THRU | ||||
| 81261036XL | CAT50-SMHXL 1.000-7 | 1 | 1.000 | 2.40 | 7.00 | 0.375 | - | 1/2"-20 | AD THRU | ||||
| 81261051XL | CAT50-SMHXL 1.000-10 | 1 | 1.000 | 2.40 | 10.00 | 0.375 | - | 1/2"-20 | AD THRU | ||||
| 81261061XL | CAT50-SMHXL 1.000-12 | 1 | 1.000 | 2.40 | 12.00 | 0.375 | - | 1/2"-20 | AD THRU | ||||
| 81261076XL | CAT50-SMHXL 1.000-15 | 1 | 1.000 | 2.40 | 15.00 | 0.375 | - | 1/2"-20 | AD THRU | ||||
| 81261230XL | CAT50-SMHXL 1.250-6 | 1 | 1.250 | 2.90 | 6.00 | 0.500 | - | 5/8"-18 | AD THRU | ||||
| 81261246XL | CAT50-SMHXL 1.250-9 | 1 | 1.250 | 2.90 | 9.00 | 0.500 | - | 5/8"-18 | AD THRU | ||||
| 81261261XL | CAT50-SMHXL 1.250-12 | 1 | 1.250 | 2.90 | 12.00 | 0.500 | - | 5/8"-18 | AD THRU | ||||
| 81261276XL | CAT50-SMHXL 1.250-15 | 1 | 1.250 | 2.90 | 15.00 | 0.500 | - | 5/8"-18 | AD THRU | ||||
| 80261525XL | CAT50-SMHXL 1.500-5 | 1 | 1.500 | 3.88 | 5.00 | 0.625 | - | 3/4"-16 | AD THRU | ||||
| 80261541XL | CAT50-SMHXL 1.500-8 | 1 | 1.500 | 3.88 | 8.00 | 0.625 | - | 3/4"-16 | AD THRU | ||||
| 80261561XL | CAT50-SMHXL 1.500-12 | 1 | 1.500 | 3.88 | 12.00 | 0.625 | - | 3/4"-16 | AD THRU | ||||
| 80261576XL | CAT50-SMHXL 1.500-15 | 1 | 1.500 | 3.88 | 15.00 | 0.625 | - | 3/4"-16 | AD THRU | ||||
| 80262061XL | CAT50-SMHXL 2.00-12 | 1 | 2.000 | 4.38 | 12.00 | 0.750 | - | 1″-14 | AD THRU | ||||
| 802620F30XL | CAT50-FMHXL 2.000-6 | 2 | 2.000 | 4.90 | 6.00 | 0.750 | 4.00 | 1″-14 | AD THRU | ||||
| 802625F20XL | CAT50-FMHXL 2.500-4 | 2 | 2.500 | 4.90 | 4.00 | 1.000 | 4.00 | 1″-14 | AD THRU | ||||
| 802625F41XL | CAT50-FMHXL 2.500-8 | 2 | 2.500 | 4.90 | 8.00 | 1.000 | 4.00 | 1″-14 | AD THRU |
