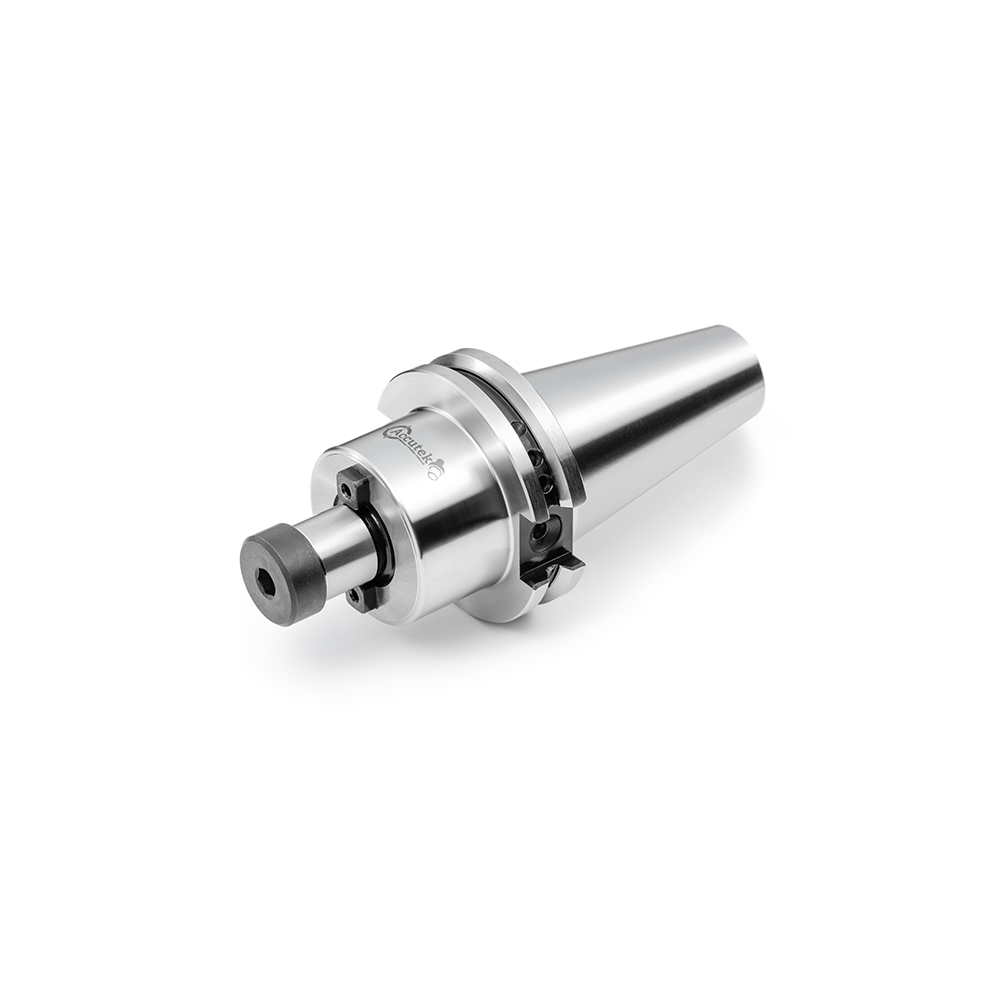

CAT40 Shell Mill Holder

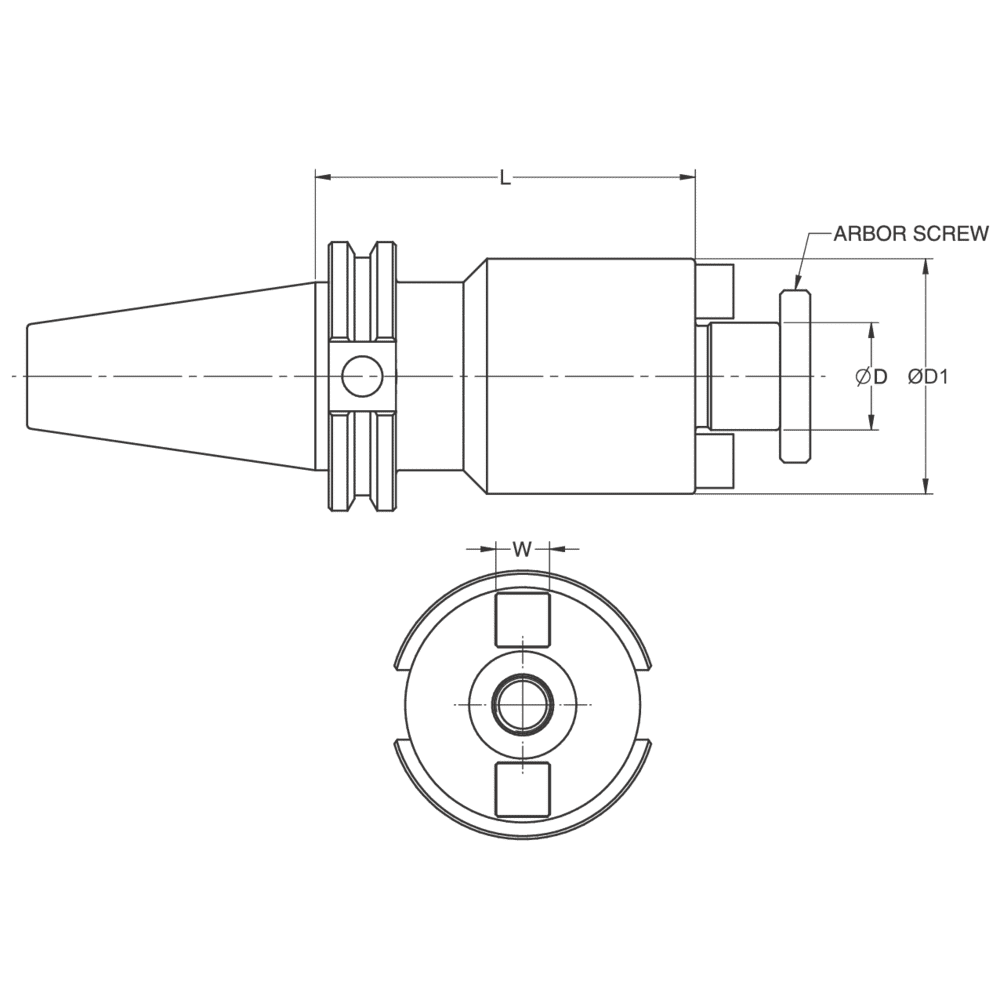

CAT40 Shell Mill Holder - Image 2

CAT40 Shell Mill Holder

Feature:

  • Balanced to G2.5 @ 25,000 RPM
  • Taper shank ground to AT3 accuracy (or better)
  • T.I.R. < 0.0002”
  • Coolant Through the Center of the body
  • ANSI-ASME B5.50-1994
Cat. no.: N/A Category:

Available Options

Cat. no.DescriptionØD (inch)L (inch)ØD1 (inch)W (inch)Arbor ScrewCoolant StyleStockPriceQuantity
81245007CAT40-SMH 0.500-1.380.5001.381.750.2501/4"-28AD Thru
81247509CAT40-SMH 0.750-1.770.7501.771.750.3123/8"-24AD Thru
81247518CAT40-SMH 0.750-3.540.7503.541.750.3123/8"-24AD Thru
81241012CAT40-SMH 1.000-2.361.0002.362.190.3751/2"-20AD Thru
81241018CAT40-SMH 1.000-3.541.0003.542.190.3751/2"-20AD Thru
81241030CAT40-SMH 1.000-6.001.0006.002.190.3751/2"-20AD Thru
81241212CAT40-SMH 1.250-2.361.2502.362.750.5005/8"-18AD Thru
81241222CAT40-SMH 1.250-4.251.2504.252.750.5005/8"-18AD Thru
80241512CAT40-SMH 1.500-2.361.5002.363.380.6253/4"-16AD Thru
80241520CAT40-SMH 1.500-4.001.5004.003.380.6253/4"-16AD Thru
81241607CAT40-SMH 16-3516mm35mm35mm8mmM8 x L25 *AD Thru
84242210CAT40-SMH 22-5022mm50mm45mm10mmM10 x L25 *AD Thru
81242220CAT40-SMH 22-10022mm100mm45mm10mmM10 x L25 *AD Thru
81242710CAT40-SMH 27-5027mm50mm70mm12mmM12 x L30 *AD Thru
81242720CAT40-SMH 27-10027mm100mm70mm12mmM12 x L30 *AD Thru

NOTE: ALL Shell Mill Holders are supplied with coolant through the center up to the arbor screw hole.
NOTE: * Represents holders provide with metric allen cap bolt.
