BTP40 Shell Mill Holders
AccuPlus™ BTP Shell Mill Holder
Available Options

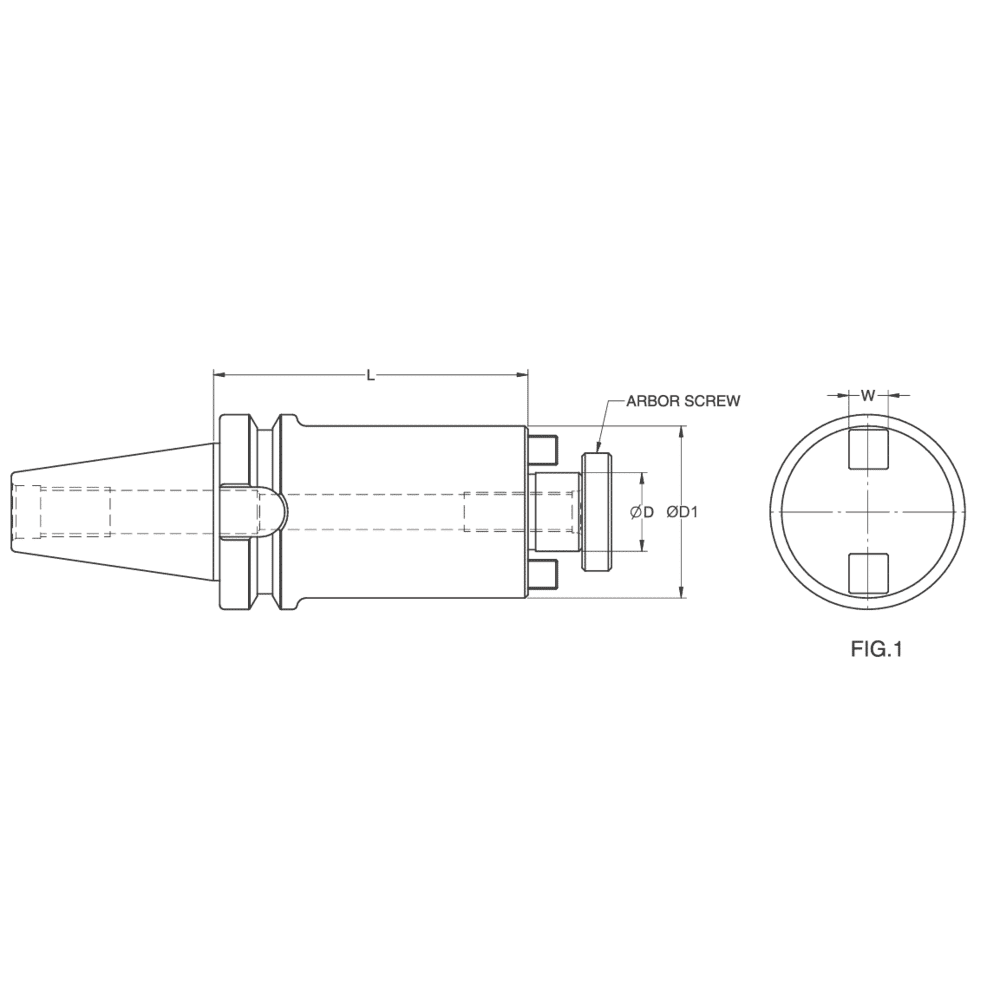

| Cat. no. | Description | Unit | D | L | ØD1 | H | W | Coolant Style | Stock | Price | Quantity | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 811085011 | BTP40-SMH 0.500-2.00 | BTP40 Inch | 0.500 | 2.00 | 1.34 | 0.56 | 0.250 | AD Thru | ||||
| 811085021 | BTP40-SMH 0.500-4.00 | BTP40 Inch | 0.500 | 4.00 | 1.34 | 0.56 | 0.250 | AD Thru | ||||
| 811087511 | BTP40-SMH 0.750-2.00 | BTP40 Inch | 0.750 | 2.00 | 1.94 | 0.69 | 0.312 | AD Thru | ||||
| 811087521 | BTP40-SMH 0.750-4.00 | BTP40 Inch | 0.750 | 4.00 | 1.94 | 0.69 | 0.312 | AD Thru | ||||
| 811081011 | BTP40-SMH 1.000-2.00 | BTP40 Inch | 1.000 | 2.00 | 2.19 | 0.69 | 0.375 | AD Thru | ||||
| 811081021 | BTP40-SMH 1.000-4.00 | BTP40 Inch | 1.000 | 4.00 | 2.19 | 0.69 | 0.375 | AD Thru | ||||
| 811081211 | BTP40-SMH 1.250-2.00 | BTP40 Inch | 1.250 | 2.00 | 2.75 | 0.69 | 0.500 | AD Thru | ||||
| 811081226 | BTP40-SMH 1.250-5.00 | BTP40 Inch | 1.250 | 5.00 | 2.75 | 0.69 | 0.500 | AD Thru | ||||
| 811081511 | BTP40-SMH 1.500-2.00 | BTP40 Inch | 1.500 | 2.00 | 3.38 | 0.94 | 0.625 | AD Thru | ||||
| 811081526 | BTP40-SMH 1.500-5.00 | BTP40 Inch | 1.500 | 5.00 | 3.38 | 0.94 | 0.625 | AD Thru | ||||
| 811081612 | BTP40-SMH 16-60 | BTP40 Metric | 16 | 60 | 34 | 15 | 8 | AD Thru | ||||
| 811082209 | BTP40-SMH 22-45 | BTP40 Metric | 22 | 45 | 45 | 18 | 10 | AD Thru | ||||
| 811082218 | BTP40-SMH 22-90 | BTP40 Metric | 22 | 60 | 45 | 18 | 10 | AD Thru | ||||
| 811082712 | BTP40-SMH 27-60 | BTP40 Metric | 27 | 60 | 70 | 20 | 12 | AD Thru | ||||
| 811082718 | BTP40-SMH 27-90 | BTP40 Metric | 27 | 90 | 70 | 20 | 12 | AD Thru | ||||
| 811083212 | BTP40-SMH 32-60 | BTP40 Metric | 32 | 60 | 85 | 22 | 14 | AD Thru | ||||
| 811083215 | BTP40-SMH 32-75 | BTP40 Metric | 32 | 75 | 85 | 22 | 14 | AD Thru |
