Face Contact (CATP) 50 Hydraulic Holders
AccuPlus™ CATP50 AccuClamp™ Face Contact Hydraulic Chuck
FEATURES:
- Balanced to G2.5 @ 25,000 RPM
- Taper shank ground to AT3 accuracy (or better)
- T.I.R. < 0.0002”
- Bore tolerance: H6
Available Options

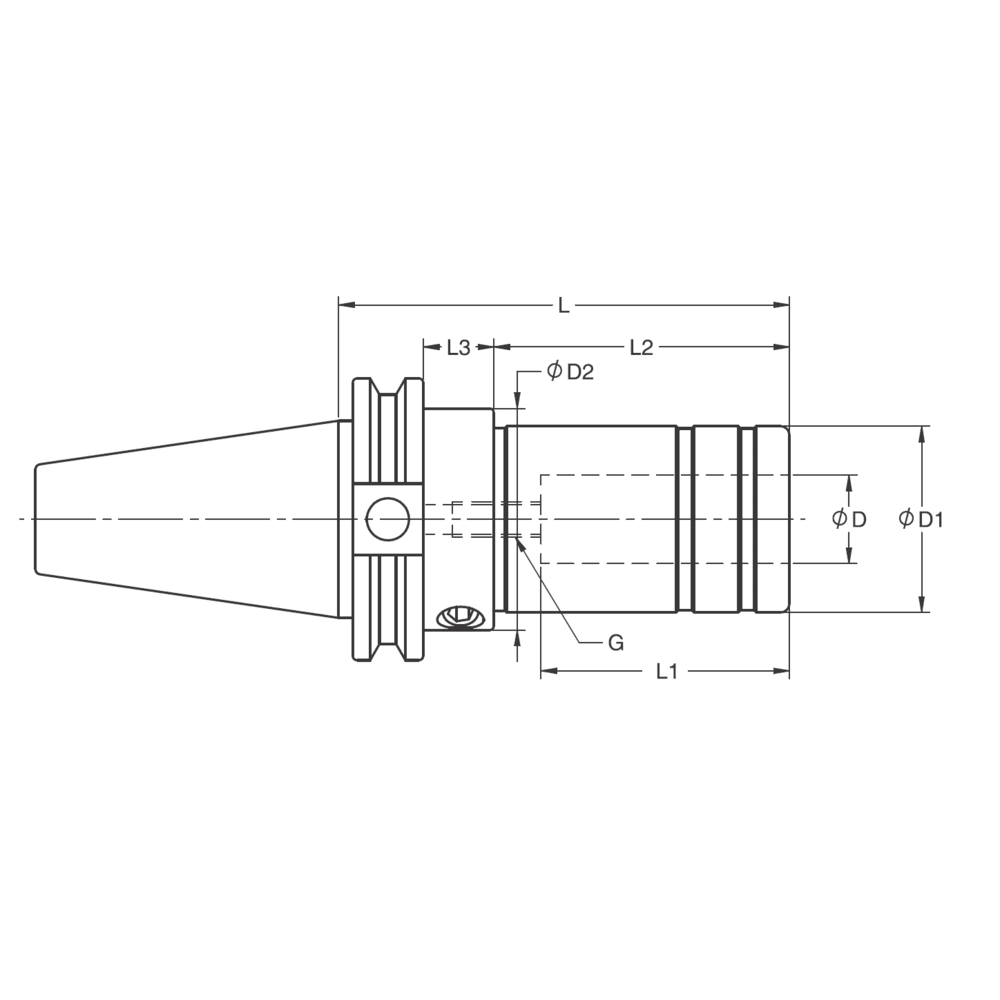

| Cat. no. | Description | CAT50 | ØD | ØD1 | ØD2 | L | L1 | L2 | L3 | G | Coolant Style | Stock | Price | Quantity | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 681382820 | CATP50-HCS 0.750-4.00 | Inch | 0.750 | 1.65 | 2.05 | 4.00 | 2.05 | 2.28 | 0.96 | M8x1 | AD Thru | ||||
| 681382225 | CATP50-HCS 1.250-5.00 | Inch | 1.250 | 2.36 | 2.75 | 5.00 | 2.44 | 3.46 | 0.78 | M8x1 | AD Thru | ||||
| 681382020 | CATP50-HCS 20-100 | metric | 20.00 | 42 | 52 | 100 | 52 | 56.4 | 24.5 | M8x1 | AD Thru | ||||
| 681382520 | CATP50-HCS 25-100 | metric | 25.00 | 52 | 69.85 | 100 | 52 | 56.4 | 24.5 | M8x1 | AD Thru | ||||
| 681383225 | CATP50-HCS 32-125 | metric | 32.00 | 60 | 69.85 | 1.25 | 60 | 85.9 | 20 | M8x1 | AD Thru |
