CAT 50 Hydraulic Holders
CAT50 AccuClamp™ Hydraulic Chucks
FEATURES:
- Balanced to G2.5 @ 25,000 RPM
- Taper shank ground to AT3 accuracy (or better)
- T.I.R. < 0.0002”
- Bore tolerance: H6
- ANSI/ASME B5.50-1994
Available Options

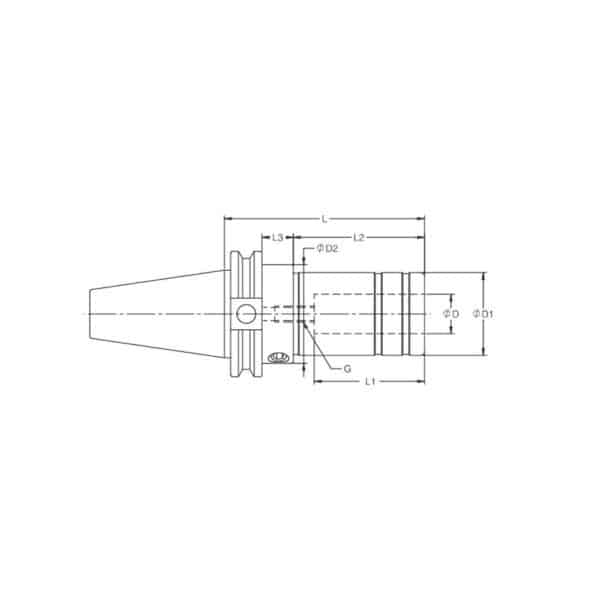

| Cat. no. | Description | ØD | ØD1 | ØD2 | L | L1 | L2 | L3 | G | Coolant Style | Stock | Price | Quantity | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 68262820 | CAT50-HCS 0.750-4.00 | 0.750 inch | 1.65 inch | 2.05 inch | 4.00 inch | 2.05 inch | 2.28 inch | 0.96 inch | M8X1 | AD Thru | ||||
| 68262225 | CAT50-HCS 1.250-5.00 | 1.250 inch | 2.36 inch | 2.75 inch | 5.00 inch | 2.44 inch | 3.46 inch | 0.78 inch | M8X1 | AD Thru | ||||
| 68262020 | CAT50-HCS 20-100 | 20 mm | 42 mm | 52 mm | 100 mm | 52 mm | 56 mm | 25 mm | M8X1 | AD Thru | ||||
| 68263225 | CAT50-HCS 32-125 | 32 mm | 60 mm | 70 mm | 125 mm | 60 mm | 86 mm | 20 mm | M8X1 | AD Thru |
