KTI Collet Chucks (ER / TG)

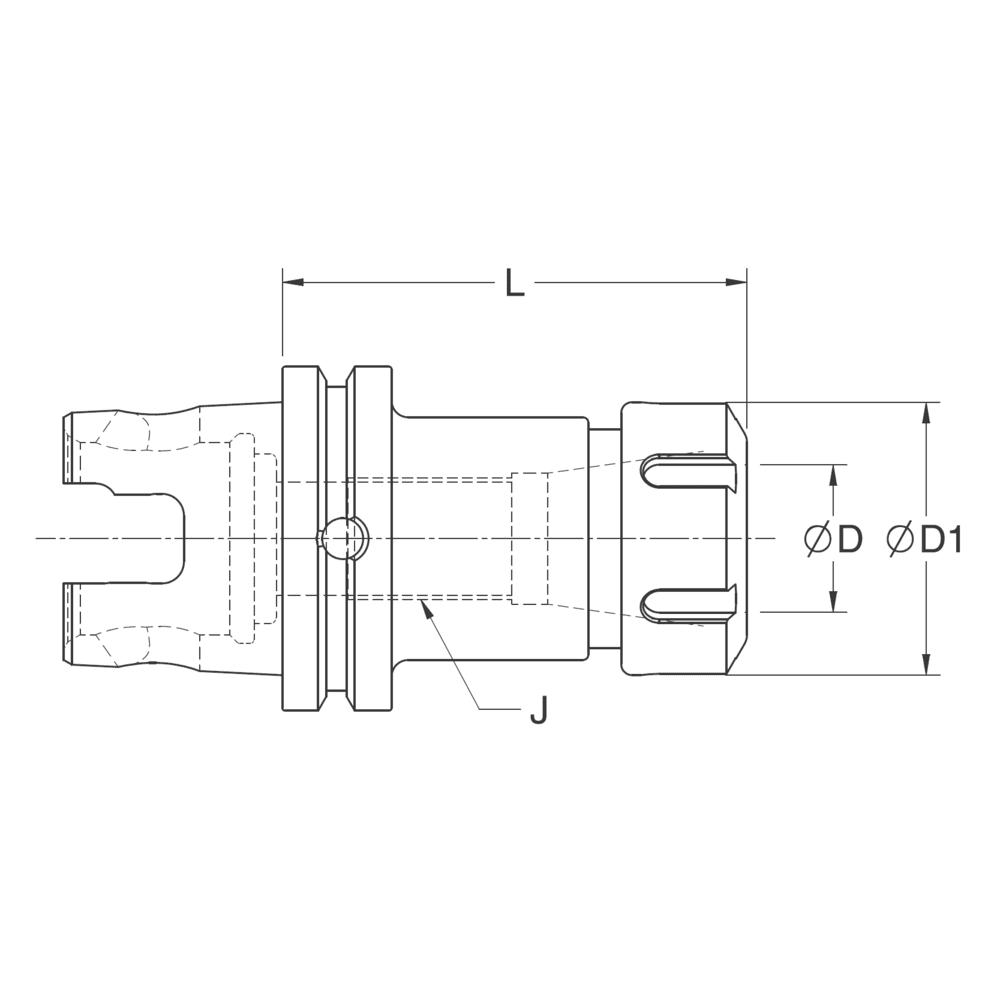

KTI ER Collet Holder
Available Options
| Cat. no. | Description | Collet Size | ØD Range | ØD1 (inch) | L | J (inch) | Coolant Style | Stock | Price | Quantity | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 872141309 | KTI40TS-CHE 25-1.77 | ER25 | .118-.275 | 1.653 | 1.77 | 11/16-16LH | AD Thru | ||||
| 872141412 | KTI40TS-CHE 32-2.36 | ER32 | .118-.787 | 1.969 | 2.36 | 7/8-16LH | AD Thru | ||||
| 872142310 | KTI50TS-CHE 25-1.97 | ER25 | .118-.629 | 1.653 | 1.97 | 11/16-16LH | AD Thru | ||||
| 872142412 | KTI50TS-CHE 32-2.36 | ER32 | .118-.787 | 1.969 | 2.36 | 7/8-16LH | AD Thru | ||||
| 872142514 | KTI50TS-CHE 40-2.76 | ER40 | .157-1.023 | 2.48 | 2.76 | 1.1/8-16LH | AD Thru | ||||
| 8721500M12 | KTI63XMZ-CHE 11M-2.36 | ER11 | .118-.275 | 0.63 | 2.36 | 5/16-24LH | AD Thru | ||||
| 872150112 | KTI63XMZ-CHE 16-2.36 | ER16 | .118-.393 | 1.10 | 2.36 | 7/16-16LH | AD Thru | ||||
| 8721501M12 | KTI63XMZ-CHE 16M-2.36 | ER16 | .118-.393 | 0.866 | 2.36 | 7/16-16LH | AD Thru | ||||
| 872150212 | KTI63XMZ-CHE 20-2.36 | ER20 | .118-.511 | 1.338 | 2.36 | 9/16-16LH | AD Thru | ||||
| 872150312 | KTI63XMZ-CHE 25-2.36 | ER25 | .118-.629 | 1.653 | 2.36 | 11/16-16LH | AD Thru | ||||
| 872150418 | KTI63XMZ-CHE 32-3.54 | ER32 | .118-.787 | 1.969 | 3.54 | 7/8-16LH | AD Thru | ||||
| 872150518 | KTI63XMZ-CHE 40-3.54 | ER40 | .157-1.023 | 2.48 | 3.54 | 1.1/8-16LH | AD Thru |
