HSK ER Collet Chucks
HSK-A ER Collet Chuck
FEATURES:
- Balanced to G2.5 @ 25,000 RPM
- AD coolant thru the spindle
- T.I.R. < 0.0002”
- Balanced ER Collet Nuts
Available Options

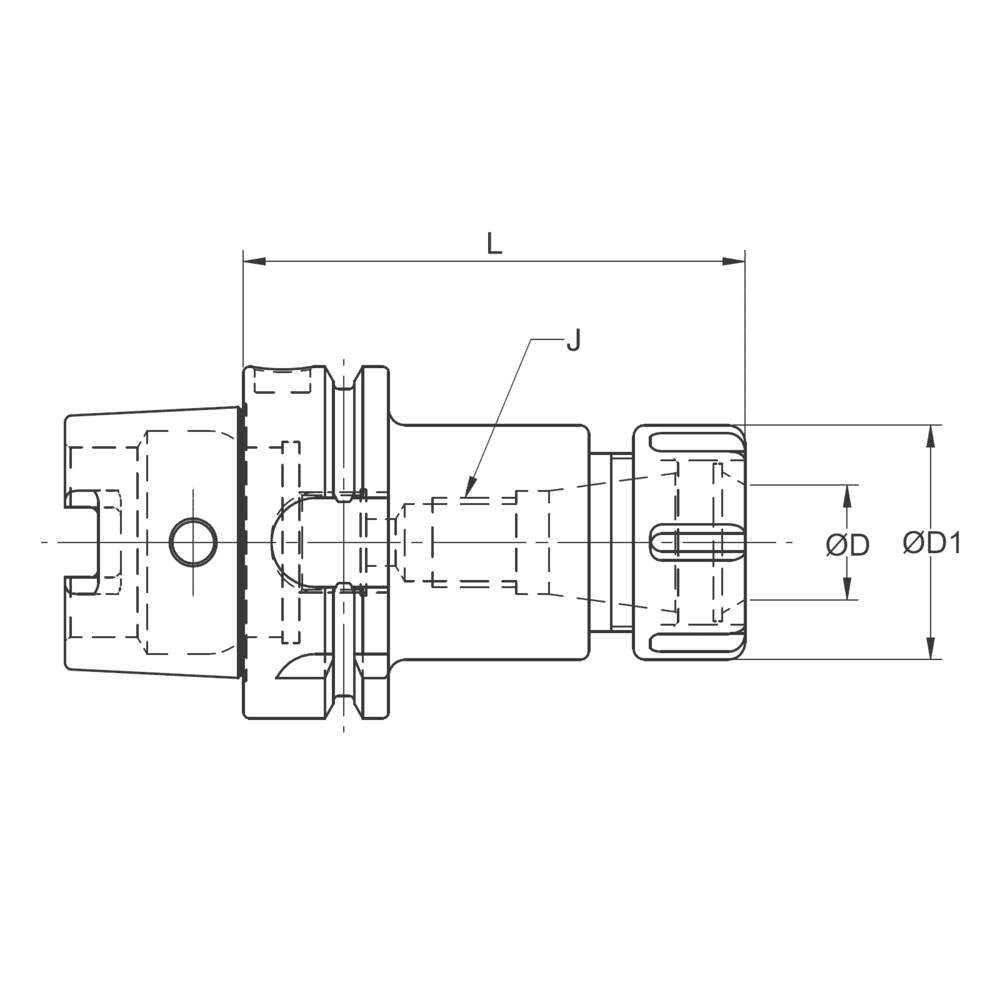

| Cat. no. | Description | Collet Size | ØD Range (inch) | ØD1 (inch) | L (inch) | J Adj. Screw | Coolant Style | Stock | Price | Quantity | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 87271A113 | HSK32A-CHE 16-2.56 | ER16 | .118 - .393 | 1.102 | 2.56 | M10X1.5 | AD Thru | ||||
| 87271A216 | HSK32A-CHE 20-3.15 | ER20 | .118 - .512 | 1.340 | 3.15 | M12X1.75 | AD Thru | ||||
| 87271A314 | HSK32A-CHE 25-2.76 | ER25 | .118 - .629 | 1.653 | 2.76 | M16X2.0 | AD Thru | ||||
| 87272A114 | HSK40A-CHE 16-2.76 | ER16 | .118 - .393 | 1.102 | 2.76 | M10X1.5 | AD Thru | ||||
| 87272A216 | HSK40A-CHE 20-3.15 | ER20 | .118 - .512 | 1.340 | 3.15 | M12X1.75 | AD Thru | ||||
| 87272A316 | HSK40A-CHE 25-3.15 | ER25 | .118 - .629 | 1.653 | 3.15 | M16X2 | AD Thru | ||||
| 87272A420 | HSK40A-CHE 32-3.94 | ER32 | .118 - .787 | 1.968 | 3.94 | M18X1.5 | AD Thru | ||||
| 87273A116 | HSK50A-CHE 16-3.15 | ER16 | .118 - .393 | 1.102 | 3.15 | M10X1.5 | AD Thru | ||||
| 87273A216 | HSK50A-CHE 16-3.15 | ER20 | .118 - .512 | 1.340 | 3.15 | M12X1.75 | AD Thru | ||||
| 87273A319 | HSK50A-CHE 25-3.74 | ER25 | .118 - .629 | 1.653 | 3.74 | M16X2 | AD Thru | ||||
| 87273A420 | HSK50A-CHE 32-3.94 | ER32 | .118 - .787 | 1.968 | 3.94 | M18X1.5 | AD Thru | ||||
| 87274A118 | HSK63A-CHE 16-3.54 | ER16 | .118 - .393 | 1.102 | 3.15 | M10X1.5 | AD Thru | ||||
| 87274A216 | HSK63A-CHE 20-3.15 | ER20 | .118 - .512 | 1.340 | 3.15 | M12X1.75 | AD Thru | ||||
| 87274A232 | HDK63A-CHE 20-6.30 | ER20 | .118 - .512 | 1.340 | 6.30 | M12X1.75 | AD Thru | ||||
| 87274A318 | HSK63A-CHE 25-3.54 | ER25 | .118 - .629 | 1.653 | 3.74 | M16X2 | AD Thru | ||||
| 87274A330 | HSK63A-CHE 25-6.00 | ER25 | .118 - .629 | 1.653 | 6.00 | M16X2 | AD Thru | ||||
| 87274A420 | HSK63A-CHE 32-3.94 | ER32 | .118 - .787 | 1.968 | 3.94 | M18X1.5 | AD Thru | ||||
| 87274A430 | HSK63A-CHE 32-6.00 | ER32 | .118 - .787 | 1.968 | 6.00 | M18X1.5 | AD Thru | ||||
| 87274A524 | HSK63A-CHE 40-4.72 | ER40 | .157 - 1.023 | 2.480 | 4.72 | M22X1.5 | AD Thru | ||||
| 87276A220 | HSK100A-CHE 20-3.94 | ER20 | .118 - .512 | 1.340 | 3.94 | M12X1.75 | AD Thru | ||||
| 87276A232 | HSK100A-CHE 20-6.30 | ER20 | .118 - .512 | 1.340 | 6.30 | M12X1.75 | AD Thru | ||||
| 87276A320 | HSK100A-CHE 25-3.94 | ER25 | .118 - .629 | 1.653 | 3.94 | M16x2.00 | AD Thru | ||||
| 87276A330 | HSK100A-CHE 25-6.30 | ER25 | .118 - .629 | 1.653 | 6.30 | M16x2.00 | AD Thru | ||||
| 87276A420 | HSK100A-CHE 32-3.94 | ER32 | .118 - .787 | 1.968 | 3.94 | M18X1.5 | AD Thru | ||||
| 87276A430 | HSK100A-CHE 32-6.00 | ER32 | .118 - .787 | 1.968 | 6.00 | M18X1.5 | AD Thru | ||||
| 87276A524 | HSK100A-CHE 40-4.72 | ER40 | .157 - 1.023 | 2.480 | 4.72 | M22X1.5 | AD Thru | ||||
| 87276A726 | HSK100A-CHE 50-5.12 | ER50 | .393 - 1.338 | 3.070 | 5.12 | M22X1.5 | AD Thru |
