Face Contact CATP50 ER Collet Holder
AccuPlus™ CATP50 Face Contact ER Collet Holder
FEATURES:
- Balanced to G2.5 @ 25,000 RPM
- Taper shank ground to AT3 accuracy (or better)
- T.I.R. < 0.0002”
- Balanced ER Collet Nuts
Available Options

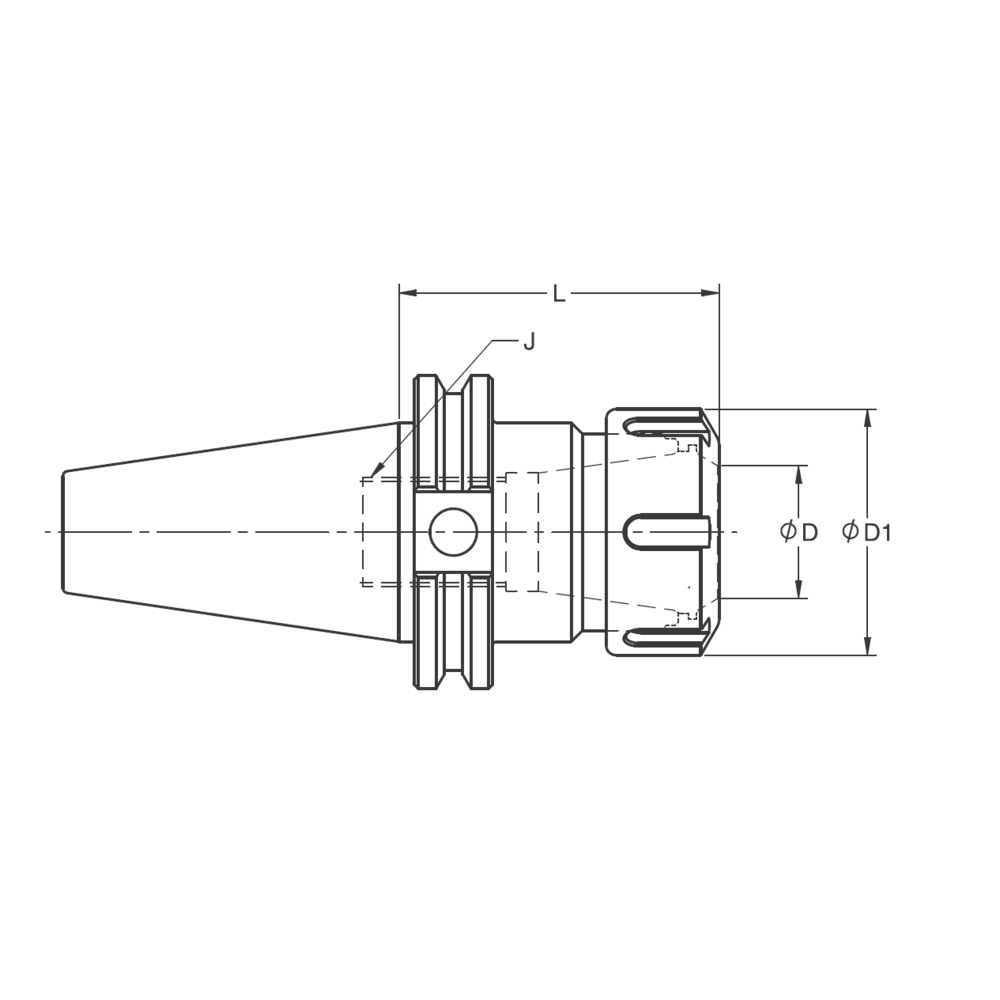

| Cat. no. | Description | Collet Size | ØD Range inch | ØD1 (inch) | L(inch) | J Adj. Screw | Coolant Style | Stock | Price | Quantity | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 872138121 | CATP50-CHE 16-4.00 | ER16 | .118 - .275 | 0.748 | 4.00 | 7/16-16LH | AD Thru | ||||
| 872138131 | CATP50-CHE 16-6.00 | ER16 | .118 - .275 | 0.748 | 6.00 | 7/16-16LH | AD Thru | ||||
| 872138221 | CATP50-CHE 20-4.00 | ER20 | .118 - .511 | 1.102 | 4.00 | 9/16-16LH | AD Thru | ||||
| 872138231 | CATP50-CHE 20-6.00 | ER20 | .118 - .511 | 1.102 | 6.00 | 9/16-16LH | AD Thru | ||||
| 872138321 | CATP50-CHE 25-4.00 | ER25 | .118 - .629 | 1.653 | 4.00 | 11/16-16LH | AD Thru | ||||
| 872138331 | CATP50-CHE 25-6.00 | ER25 | .118 - .629 | 1.653 | 6.00 | 11/16-16LH | AD Thru | ||||
| 872138421 | CATP50-CHE 32-4.00 | ER32 | .118 - .787 | 1.968 | 4.00 | 7/8-16LH | AD Thru | ||||
| 872138431 | CATP50-CHE 32-6.00 | ER32 | .118 - .787 | 1.968 | 6.00 | 7/8-16LH | AD Thru | ||||
| 872138441 | CATP50-CHE 32-8.00 | ER32 | .118 - .787 | 1.968 | 8.00 | 7/8-16LH | AD Thru | ||||
| 872138521 | CATP50-CHE 40-4.00 | ER40 | .157 -1.023 | 2.480 | 4.00 | 1.1/8-16LH | AD Thru |
