Face Contact CATP40 ER Collet Holder
CATP40 Face Contact ER Collet Holder
FEATURES:
- Balanced to G2.5 @ 25,000 RPM
- Taper shank ground to AT3 accuracy (or better)
- AD coolant thru the spindle
- T.I.R. < 0.0002
- Balanced ER Collet Nuts
Available Options

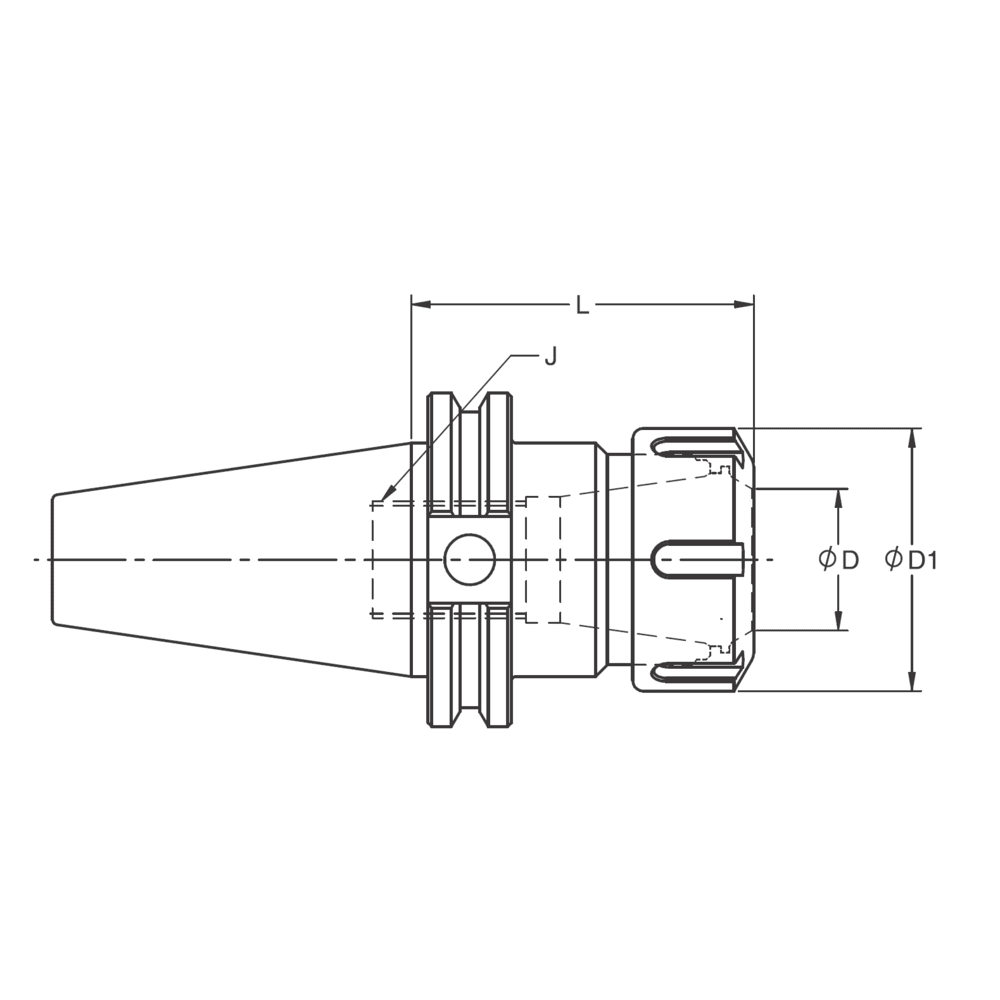

| Cat. no. | Description | Collet Size | ØD Range inch | ØD1 (inch) | L (inch) | J Adj. Screw | Coolant Style | Stock | Price | Quantity | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 872136016 | CATP40-CHE 11-3.00 | ER11 | .118 - .275 | 0.748 | 3.00 | 5/16-24LH | AD Thru | ||||
| 872136116 | CATP40-CHE 16-3.00 | ER16 | .118 - .393 | 1.102 | 3.00 | 7/16-16LH | AD Thru | ||||
| 872136131 | CATP40-CHE 16-6.00 | ER16 | .118 - .393 | 1.102 | 6.00 | 7/16-16LH | AD Thru | ||||
| 872136216 | CATP40-CHE 20-3.00 | ER20 | .118 - .511 | 1.338 | 3.00 | 9/16-16LH | AD Thru | ||||
| 872136231 | CATP40-CHE 20-6.00 | ER20 | .118 - .511 | 1.338 | 6.00 | 9/16-16LH | AD Thru | ||||
| 872136241 | CATP40-CHE 20-8.00 | ER20 | .118 - .511 | 1.338 | 8.00 | 9/16-16LH | AD Thru | ||||
| 872136316 | CATP40-CHE 25-3.00 | ER25 | .118 - .629 | 1.653 | 3.00 | 11/16-16LH | AD Thru | ||||
| 872136321 | CATP40-CHE 25-4.00 | ER25 | .118 - .629 | 1.653 | 4.00 | 11/16-16LH | AD Thru | ||||
| 872136331 | CATP40-CHE 25-6.00 | ER25 | .118 - .629 | 1.653 | 6.00 | 11/16-16LH | AD Thru | ||||
| 872136416 | CATP40-CHE 32-3.00 | ER32 | .118 - .787 | 1.968 | 3.00 | 7/8-16 LH | AD Thru | ||||
| 872136431 | CATP40-CHE 32-6.00 | ER32 | .118 - .787 | 1.968 | 6.00 | 7/8-16 LH | AD Thru | ||||
| 872136441 | CATP40-CHE 32-8.00 | ER32 | .118 - .787 | 1.968 | 8.00 | 7/8-16 LH | AD Thru | ||||
| 872136616 | CATP40-CHE 40-3.15 | ER40 | .118 - 1.023 | 2.408 | 3.15 | 1.1/8-16 LH | AD Thru |
