CAT 50 ER Collet Chucks
CAT50 ER Collet Holder
FEATURES:
- Balanced to G2.5 @ 25,000 RPM
- AD coolant thru the spindle
- T.I.R. < 0.0002”
- Taper shank ground to AT3 accuracy (or better)
- Balanced ER Collet Nuts
- ANSI/ASME B5.50-1994
Available Options

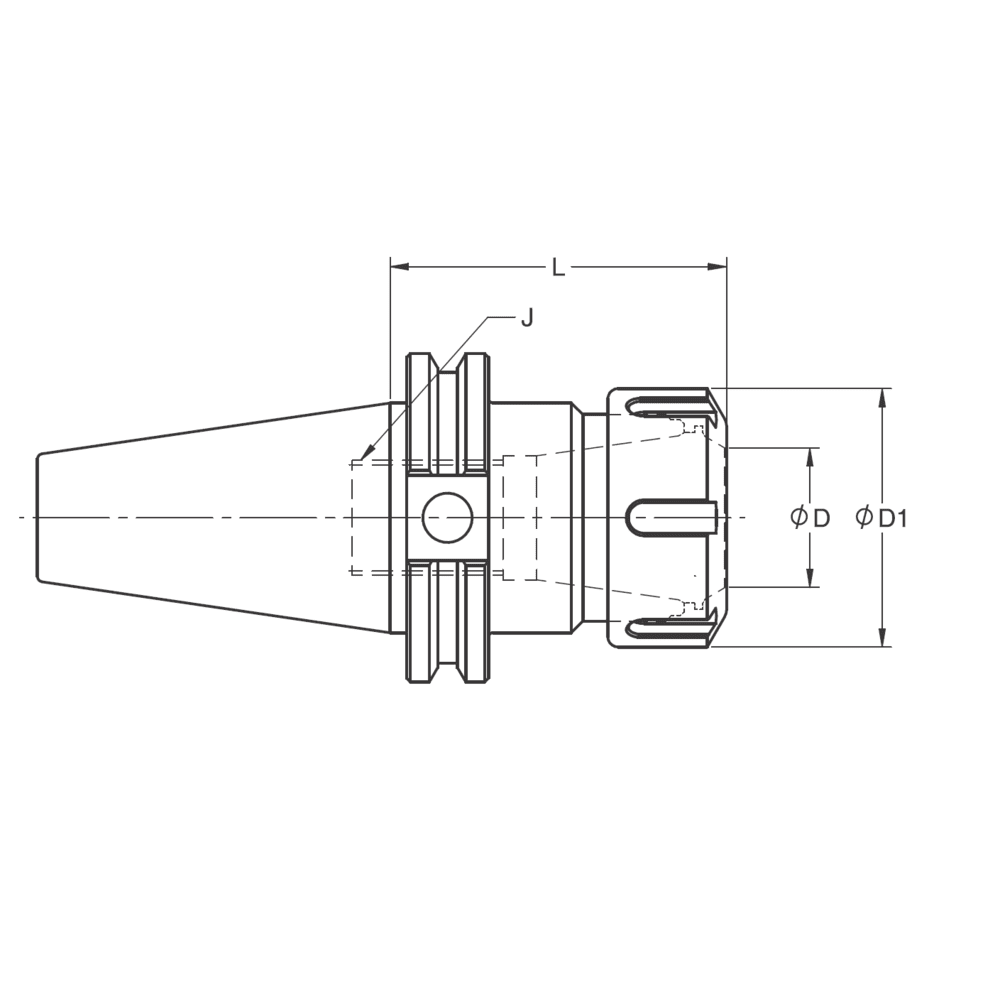

| Cat. no. | Description | Collet Size | ØD Range (inch) | ØD1 (inch) | L (inch) | J (inch) | Coolant Style | Stock | Price | Quantity | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 87226114 | CAT50-CHE 16-2.75 | ER16 | .118 - .393 | 1.102 | 2.75 | 7/16-16LH | AD Thru | ||||
| 87226120 | CAT50-CHE 16-4.00 | ER16 | .118 - .275 | 1.102 | 4.00 | 7/16-16LH | AD Thru | ||||
| 87226130 | CAT50-CHE 16-6.00 | ER16 | .118 - .275 | 1.102 | 6.00 | 7/16-16LH | AD Thru | ||||
| 87226141 | CAT50-CHE 16-8.00 | ER16 | .118 - .393 | 1.102 | 8.00 | 7/16-16LH | AD Thru | ||||
| 87226151 | CAT50-CHE 16-10.00 | ER16 | .118 - .393 | 1.102 | 10.00 | 7/16-16LH | AD Thru | ||||
| 87226214 | CAT50-CHE 20-2.75 | ER20 | .118 - .511 | 1.338 | 2.75 | 9/16-16LH | AD Thru | ||||
| 87226220 | CAT50-CHE 20-4.00 | ER20 | .118 - .393 | 1.338 | 4.00 | 9/16-16LH | AD Thru | ||||
| 87226230 | CAT50-CHE 20-6.00 | ER20 | .118 - .393 | 1.338 | 6.00 | 9/16-16LH | AD Thru | ||||
| 87226241 | CAT50-CHE 20-8.00 | ER20 | .118 - .511 | 1.338 | 8.00 | 9/16-16LH | AD Thru | ||||
| 87226320 | CAT50-CHE 25-4.00 | ER25 | .118 - .629 | 1.653 | 4.00 | 11/16-16LH | AD Thru | ||||
| 87226330 | CAT50-CHE 25-6.00 | ER25 | .118 - .629 | 1.653 | 6.00 | 11/16-16LH | AD Thru | ||||
| 87226341 | CAT50-CHE 25-8.00 | ER25 | .118 - .629 | 1.653 | 8.00 | 11/16-16LH | AD Thru | ||||
| 87226414 | CAT50-CHE 32-2.75 | ER32 | .118 - .787 | 1.968 | 2.75 | 7/8-16LH | AD Thru | ||||
| 87226420 | CAT50-CHE 32-4.00 | ER32 | .118 - .787 | 1.968 | 4.00 | 7/8-16LH | AD Thru | ||||
| 87226430 | CAT50-CHE 32-6.00 | ER32 | .118 - .787 | 1.968 | 6.00 | 7/8-16LH | AD Thru | ||||
| 87226441 | CAT50-CHE 32-8.00 | ER32 | .118 - .787 | 1.968 | 8.00 | 7/8-16LH | AD Thru | ||||
| 87226451 | CAT50-CHE 32-10.00 | ER32 | .118 - .787 | 1.968 | 10.00 | 7/8-16LH | AD Thru | ||||
| 87226520 | CAT50-CHE 40-4.00 | ER40 | .157 -1.023 | 2.480 | 4.00 | 1-1/8-16LH | AD Thru | ||||
| 87226530 | CAT50-CHE 40-6.00 | ER40 | .157 -1.023 | 2.480 | 6.00 | 1-1/8-16LH | AD Thru |
