BT 40 ER Collet Chucks
BT40 ER-Z Short Collet Chuck
FEATURES:
- Balanced to G2.5 @ 25,000 RPM
- Taper shank ground to AT3 accuracy (or better)
- T.I.R. < 0.0002″
Available Options

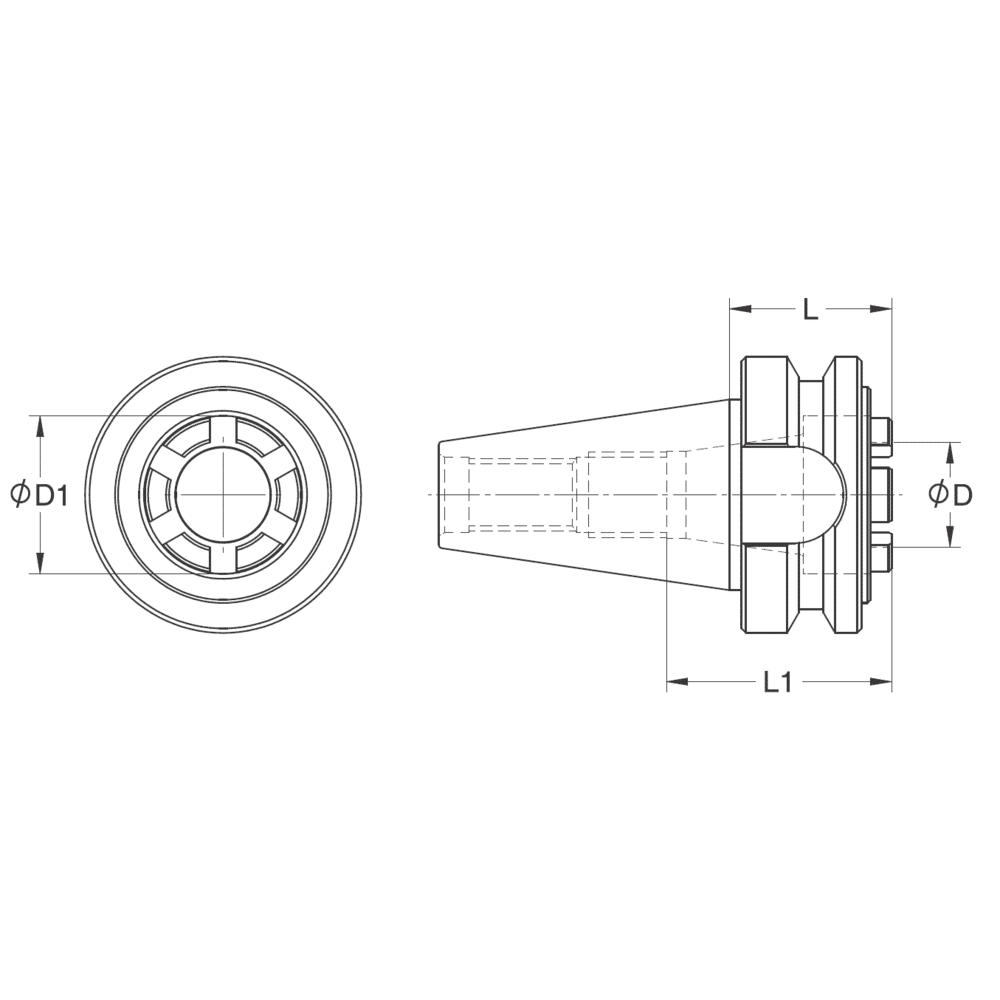

| Cat. no. | Description | Collet Size | ØD Range (inch) | ØD1 (inch) | L (inch) | L1 (inch) | Coolant Style | Stock | Price | Quantity | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 872Z12407 | BT40-CHEZ 32-36 | ER32 | .118 - .787 | 1.26 | 1.47 | 1.71 | AD Thru |
